Heavy Duty Sherline or Taig ER-32 Collet Headstock - Universal

GBER32

Heavy Duty Sherline or Taig ER-32 Collet Headstock - Universal GBER32

---Taig requires our Dovetail Adapter---

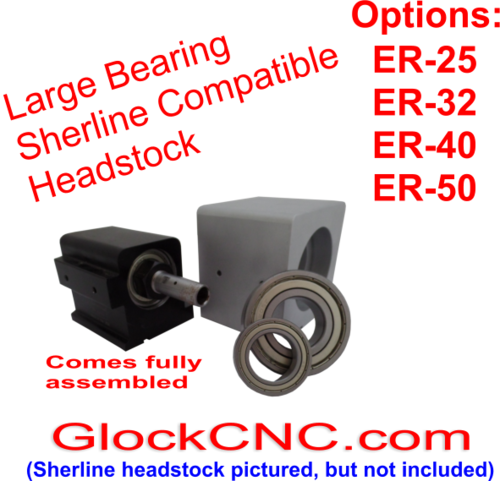

The Sherline and Taig headstocks are a good little headstock, but it’s a bit too small for some needs. Because of the demand for a more robust headstock with larger bearings; we introduce the Glock Billet Headstock. It has all the mounting features of a stock Sherline headstock to keep it completely compatible with Sherline products. Plus, it has additional mounts for custom machines. The differences are as follows:

  • You can now have a more robust 3.5”W x 3.5”T x 3.0”L, that’s a full 1.00” wider and taller (0.50” on each side & 1.00” taller than a stock Sherline headstock, center is still 1.75”)
  • Larger 62mm OD bearings for heavier work load and superior wear, so you can use heavier chucks, parts or cutters (stock is only 42mm OD)
  • Available in deep groove, angular contact (both in ABEC-5 or ABEC-7) and heavy load taper bearings
  • (4) ¼-20 threaded mounting holes on the bottom of the headstock for superior rigidity on custom setups


Recommendations:

  • While not necessary, we do recommend using at least a 550 watt motor for this. The bearings are much more heavy duty. If you choose to use a stock Sherline motor, it will work, however you will need a longer belt (it will directly mount, holes are in the same place and size as on a stock Sherline headstock)Pulley - Many opt for a timing pulley set. You may also adapt a stock Sherline pulley.
  • We offer both V groove & timing pulley taper lock sets and adapted Sherline pulleys.

Options:-

  • ABEC-7 super precision deep groove bearings (standard bearings are ABEC-5)
  • Large Bore
  • Sherline stock pulley bored to fit spindle
  • ER32 Adjustable collet nut
  • Timing pulley - please ask

Please note: Because of heavy demands, please expect about a 4 week build time.

$497 In stock
Brand:GlockCNC Sherline Taig Compatible
MPN:SherlineTaiger32
TAX:Michigan USA Tax
custom_label_0:Sherline Taig Headstock
GTIN:false
identifier_exists:no
Condition:New
Options 3 Step Bored Sherline Pulley (69) Large Bore Option .790" (49) Adjustable ER32 Nut (199) ABEC-7 Sealed Angular Contact Bearings (8K RPM) (357) ABEC-7 Sealed Angular Contact Hybric Ceramic/St​eel Bearings (19,000 RPM) (757) Taig Dovetail Adapter (99)
