EJCP.PARTS

FORD 2.0 SOHC CVH

ALL LISTINGS MUST SAY SOHC

THIS ONLY DEALS WITH THE 2.0 USED IN ESCORT/TRACKER FOCUS___________ The 2.0 L was introduced in the 1997 Escort (North American) sedan and wagon as SPI2000 (Split Port Induction). It now used split port induction and produced 110 hp (82 kW) and 125 ft·lbf (169 N·m). The additional displacement was achieved by boring the 1.9 L engine to 84.8 mm (3.34 in). It is the smoothest and quietest CVH engine made, and continued to deliver excellent fuel economy, although due to the car's increased weight, mileage is somewhat less than earlier models (usually mid-20s city, mid-30s highway). As with the 1.9, the water pump is driven by the timing belt. This engine is also a non-interference design. It is the last CVH engine made and saw an end to production in the last of the 2004 Ford Focus LX/SE sedan and wagons. [WIKI]

SIZES BLOCK MATERIAL HEAD MATERIAL CAM TYPE FUEL SYSTEM
2.0 CAST IRON ALUMINUM SOHC MULTI PORT/
SPLIT PORT
SIZES COMPATABILITY ENGINE TEMP HEAD TEMP CRANK TEMP NOTES

ITEMS

BRACKETS EXHAUST MANIFOLD INTAKE MANIFOLD OIL PAN PISTON
SENSORS TIMING COVER TIMING SET VALVE COVER VALVE INFORMATION

LISTING TEMPLATES

2.0 SOHC 97 ESCORT/TRACER 2.0A 2.0B Ident: 7G470AA
Ident: 7G471AA
Ident: HG470AA
Ident: UG470AA
2.0 SOHC 98-99 ESCORT/TRACER 2.0D 2.0B Ident: 8D452AA '98 Ident: 8D452BA '98 Ident: 8D453AA '98 Ident: 8D471AA '98 Ident: 9D452AA '99 Ident: 9D452BA '99 Ident: 9D453AA '99 Ident: 9D453BA '99 Ident: 9D470AA '99 Ident: 9D470BA '99 Ident: 9D471AA '99 Ident: 9D471BA '99 Ident: WG470AA '98
2.0 SOHC 00-02 ESCORT 2.0C 2.0B Ident: 0G470AA '00
Ident: 1G470AA '01
Ident: 1G471AA '01
Ident: 2G470AA '02
2.0 SOHC 00-04 FOCUS 2.0B 2.0A Ident: 0G452BA '00 Ident: 0G453BA '00 Ident: 0G454BA '00 Ident: 0G455BA '00 Ident: 1G452BA '01 Ident: 1G453BA '01 Ident: 1G454BA '01 Ident: 1G455BA '01 Ident: 2G452AA '02, AT w/o block heater Ident: 2G453AA '02, MT w/o block heater Ident: 2G454AA '02, AT w/block heater Ident: 2G455AA '02, MT w/block heater Ident: 3G452AA '03-04, AT w/o block heater Ident: 3G453AA '03-04, MT w/o block heater Ident: 3G454AA '03-04, AT w/block heater Ident: 3G455AA '03-04, MT w/block heater

VALVE INFORMATION

TYPE HEAD DIAMETER STEM DIAMETER O.A.L. GROOVES LOCATION
EXHAUST 37 8.0 129.6 3 *FOR20C
INTAKE 44 8.0 132.3 3 *FOR20C
MAKE MODEL YEAR RANGE
FORD ESCORT 1997-2002
FORD FOCUS 2000-2004
MERCURY TRACER 1997-1999

COMMON FAILURE OF THE VALVE SEATS. WATCH FOR VALVE DEPTH IN SEAT

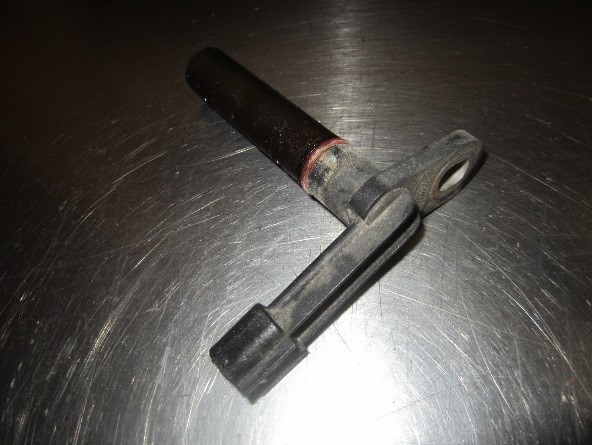

CAMSHAFT POSITION SENSOR

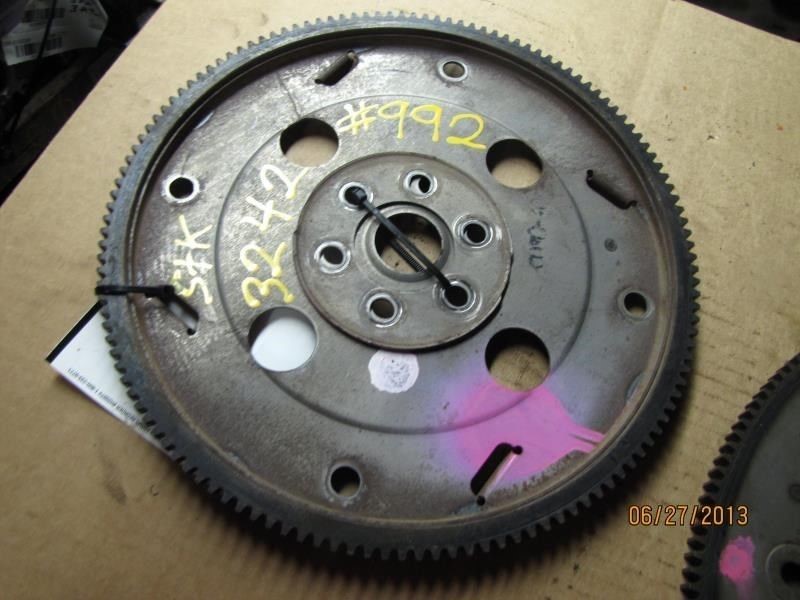

FOCUS FLEXPLATE

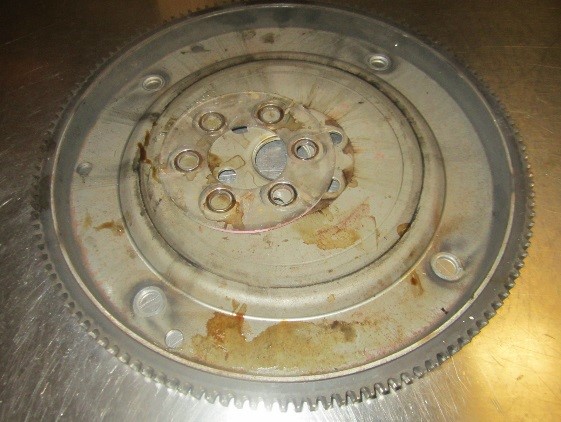

FLEXPLATE FOR ESCORT

PRE 00 VALVE COVER STATES SPLIT PORT INDUCTION 2000

PRE 00 VALVE COVER STATES SPLIT PORT ONLY

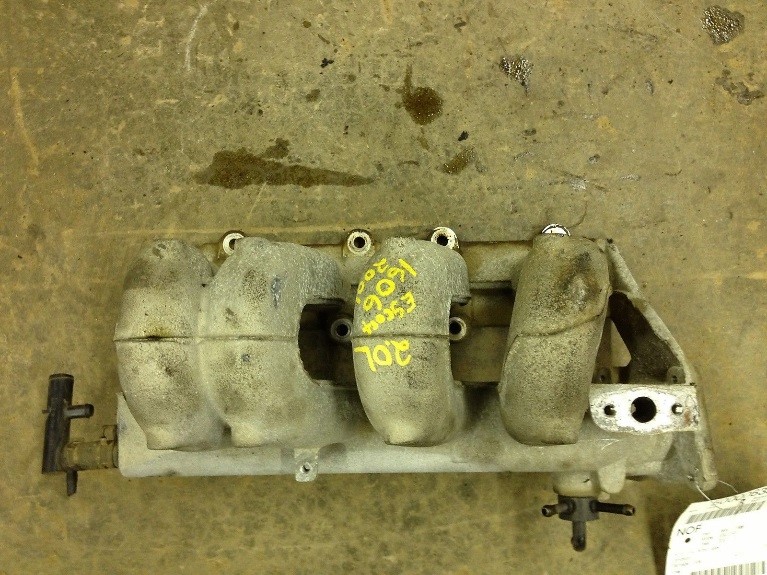

INTAKE MANIFOLD 97-02 ESCORT

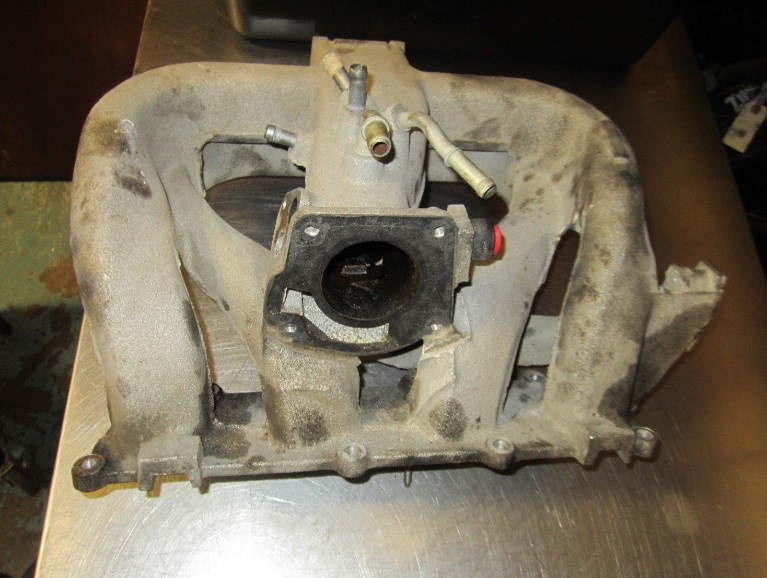

00-04 FOCUS INTAKE MANIFOLD
