FORD 4.0 OHV COLOGNE

The 4.0 L pushrod (242/245 CID; 3958/4009 cc, with a 100.0 mm (3.94 in) bore and a 84 mm (3.3 in) stroke.) version, although produced in Cologne, Germany, was only fitted to American vehicles.[3] The OHV engine was produced until 2000 and was used in the Ford Explorer, Ford Aerostar, Mazda B4000 and Ford Ranger. Output was 160 hp (119 kW) and 225 lb·ft (305 N·m). Though there is some variation, typically 155 hp (116 kW) is quoted as horsepower for 1990-92 applications.[citation needed] This evolutionary redesign of the American 2.9 solved many of the reliability issues that plagued its predecessor. A stronger cylinder head design eliminated the 2.9's common failure of cracked heads. Hydraulic roller lifters replaced the simple hydraulic lifters used in the 2.9, which were sometimes overly sensitive to oil contamination, often requiring the lifters to be replaced prematurely. However, one major design fault was not completely eliminated: Valve rockers and upper pushrod tips still received poor oil supply, resulting in eventual wear to these areas, and consequential valvetrain noise as a result of the increased clearance. Required replacement of these parts is common in older engines.[WIKI]

SIZES BLOCK MATERIAL HEAD MATERIAL CAM TYPE FUEL SYSTEM
4.0 CAST IRON CAST IRON OHV MPFI

ITEMS

BRACKETS EXHAUST MANIFOLD INTAKE MANIFOLD OIL PAN PISTON
SENSORS TIMING COVER TIMING SET VALVE COVER VALVE INFORMATION

LISTING TEMPLATES

SIZES COMPATABILITY ENGINE TEMP HEAD TEMP CRANK TEMP NOTES
4.0 OHV 90-94 AEROSTAR RANGER
91-94 EXPLORER NAVAJO
94 B4000
4.0A SAME AS ENGINE ***** ***********
4.0 OHV 95-96 AEROSTAR 4.0B 4.0E ***** ***********
4.0 OHV 95-96 EXPLORER B4000 RANGER 4.0C 4.0E ***** ***********
4.0 OHV 97 AEROSTAR EXPLORER B4000 RAGNER 4.0D 4.0E ***** ***********
4.0 OHV 98-00 B4000 4.0E 4.0F ***** ***********
4.0 OHV 98-00 EXPLORER RANGER 4.0F 4.0F ***** ***********

VALVE INFORMATION

MAKE MODEL YEAR RANGE
FORD AEROSTAR 1990-1997
FORD EXPLORER 1991-2000
FORD RANGER 1990-2000
MAZDA B4000 1994-2000
MAZDA NAVAJO 1991-1994
TYPE HEAD DIAMETER STEM DIAMETER O.A.L. GROOVES LOCATION
EXHAUST 34.5 8 104.1 3 *FOR40BU
INTAKE 43.5 8 104 3 *FOR40BU

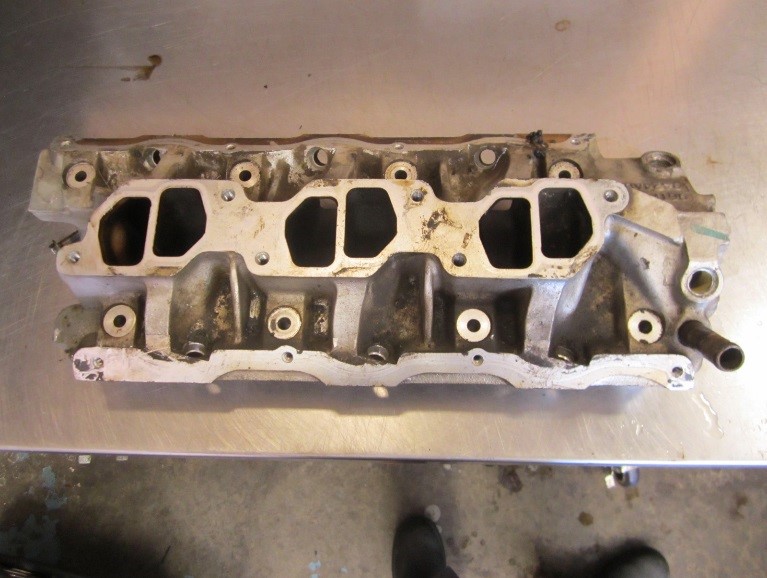

LOWER INTAKE IS PART OF VALVE COVER SEAL

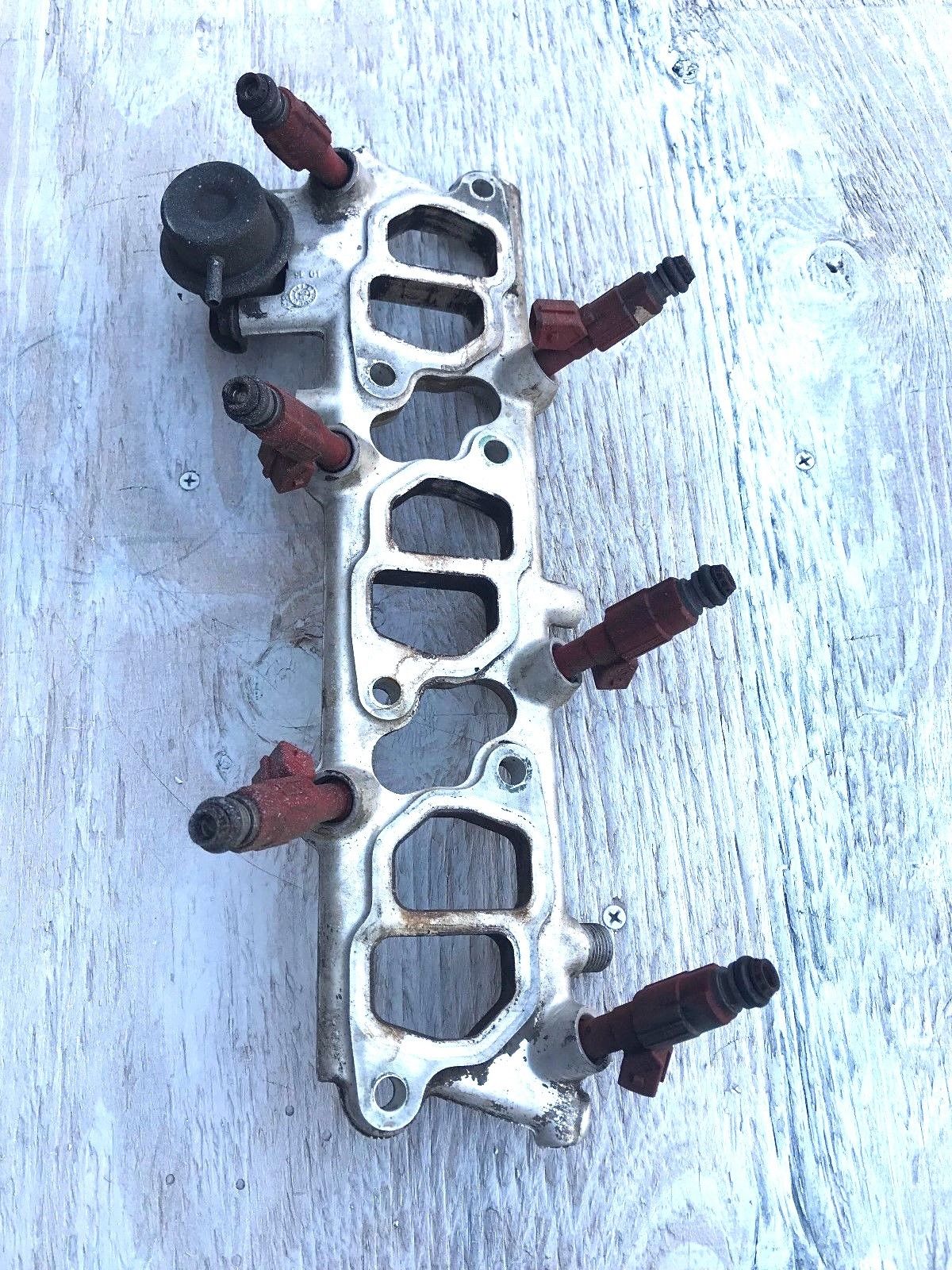

FUEL RAIL IS USED AS INTAKE SPACER

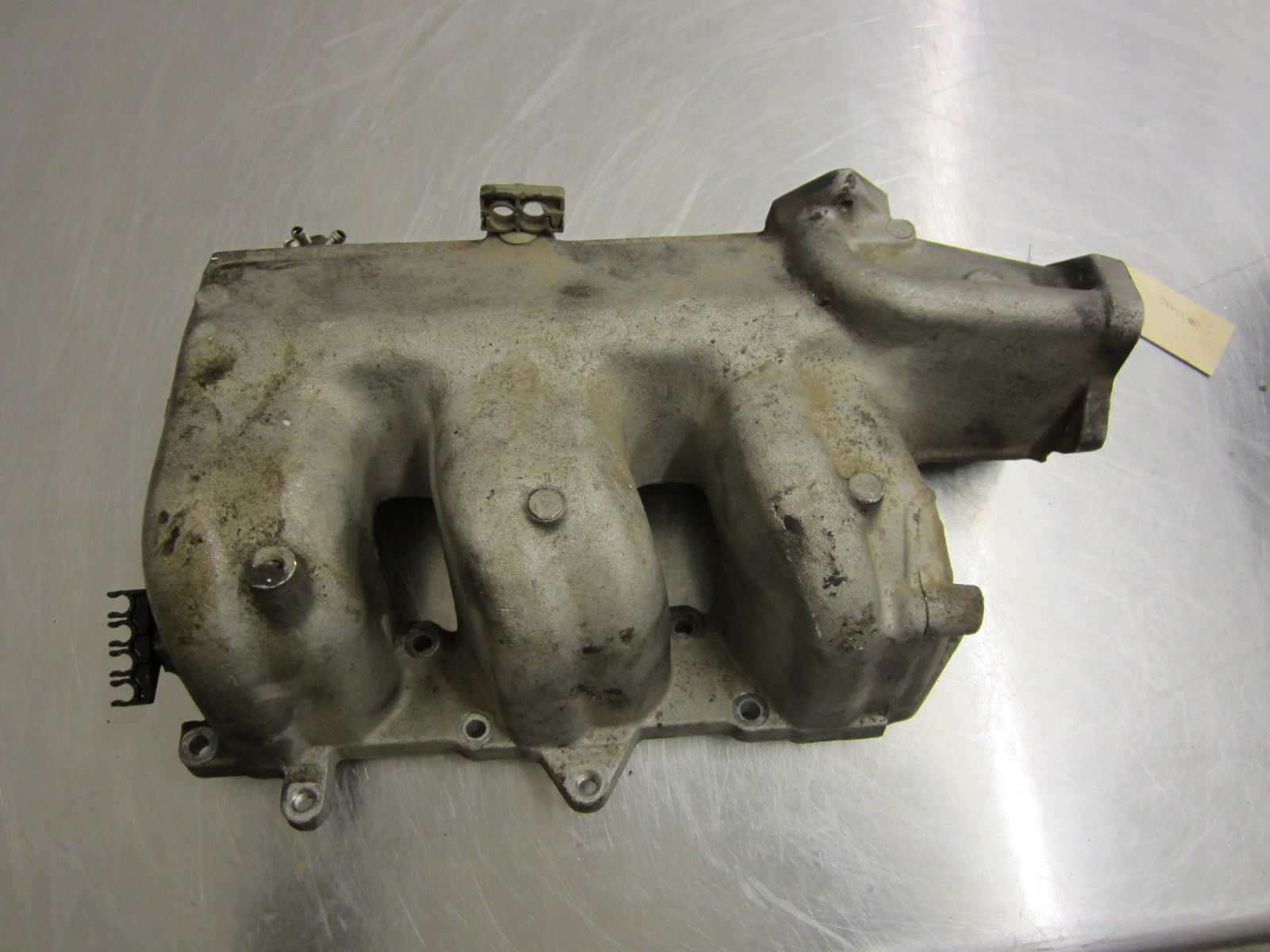

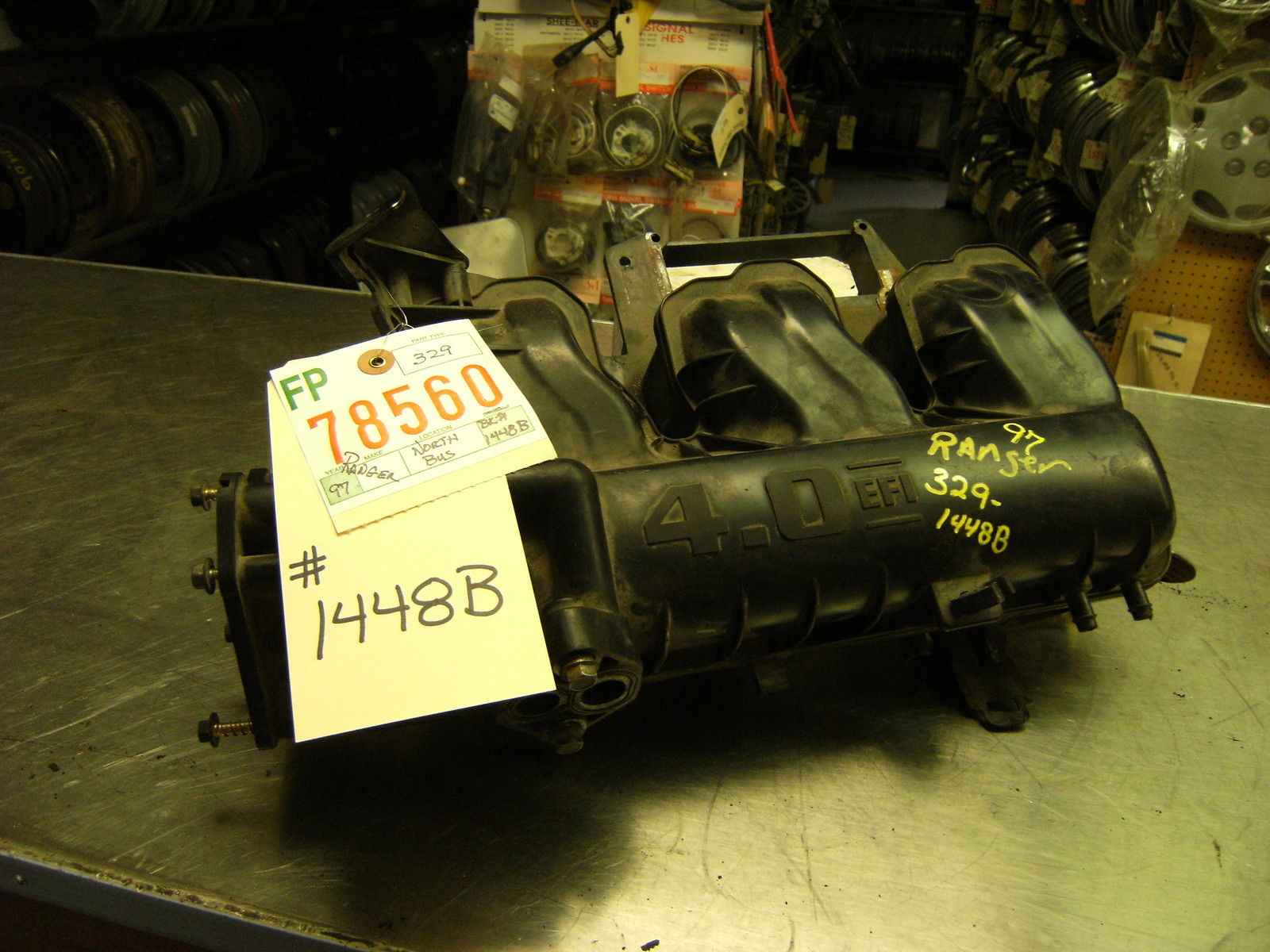

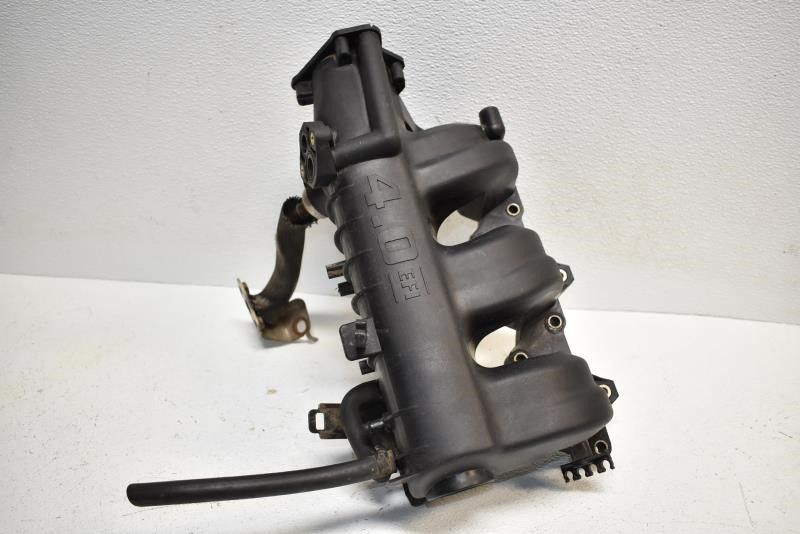

INTAKE MANIFOLD

90-96 AEROSTAR
91-94 EXPLORER
94 B4000
91-94 NAVAJO
91-94 RANGER

95-96 EXPLORER
95-97 B4000
95-97 RANGER

97-00 EXPLORER
98-00 B4000
97-00 RANGER
