GM 3.5 LX9

The LX9 3500 is an OHV engine based on the 3400 V6. It incorporates electronic throttle control. Bore is 94 mm (3.7 in), stroke is 84 mm (3.3 in) for a displacement of 3498 cc (213 cu in). A GM Press Release for the 2004 Malibu described the 3500 thus: "3.5-liter V-6, will debut in the 2004 Chevrolet Malibu. The engine offers improved performance and fuel efficiency, and runs smoother and quieter than earlier generation V-6 engines. The 3500 V-6 features an advanced powertrain control module, improved fuel injection system, a redesigned exhaust manifold and a new catalytic converter contribute to reduced emissions, as well as improved efficiency and performance characteristics. Improvements in cooling, sealing and the accessory drive system add to the engine's overall quality, reliability and durability." Power output ranges from 196 hp (146 kW) to 201 hp (150 kW), torque ranges from 213 lb·ft (289 N·m) to 221 lb·ft (300 N·m).[WIKI]

SIZES BLOCK MATERIAL HEAD MATERIAL CAM TYPE FUEL SYSTEM
3.5 CAST IRON ALUMINUM OHV MPFI

ITEMS

BRACKETS EXHAUST MANIFOLD INTAKE MANIFOLD OIL PAN PISTON
SENSORS TIMING COVER TIMING SET VALVE COVER VALVE INFORMATION

LISTING TEMPLATES

SIZES COMPATABILITY ENGINE TEMP HEAD TEMP CRANK TEMP NOTES
3.5 OHV 04-05 MALIBU
05 TERRAZA
3.5A 3.5A ***** BFA
BFB
BFC
BFP
BFX
BKX
BWH
3.5 OHV 05 G6 3.5C 3.5A ***** BFA
BFB
BFC
BFP
BFS
BKX
3.5 OHV 05-06 MONTANA RELAY UPLANDER
06-07 RENDESBOUS
06 TERRAZA
3.5D 3.5A ***** BFA
BFB
BFP
BFS
BHU
BHW
3.5 OHV 06 MALIBU G6 3.5B 3.5A ***** BHJ

VALVE INFORMATION

MAKE MODEL YEAR RANGE
BUICK RENDEZVOUS 2006-2007
BUICK TERRAZA 2005-2006
CHEVROLET MALIBU 2004-2006
CHEVROLET UPLANDER 2005-2006
PONTIAC G6 2005-2006
PONTIAC MONTANA 2005-2006
SATURN RELAY 2005-2006
TYPE HEAD DIAMETER STEM DIAMETER O.A.L. GROOVES LOCATION
EXHAUST 36.2 7.96 120.8 1 *GM35AU
INTAKE 44.7 7.97 119 1 *GM35AU

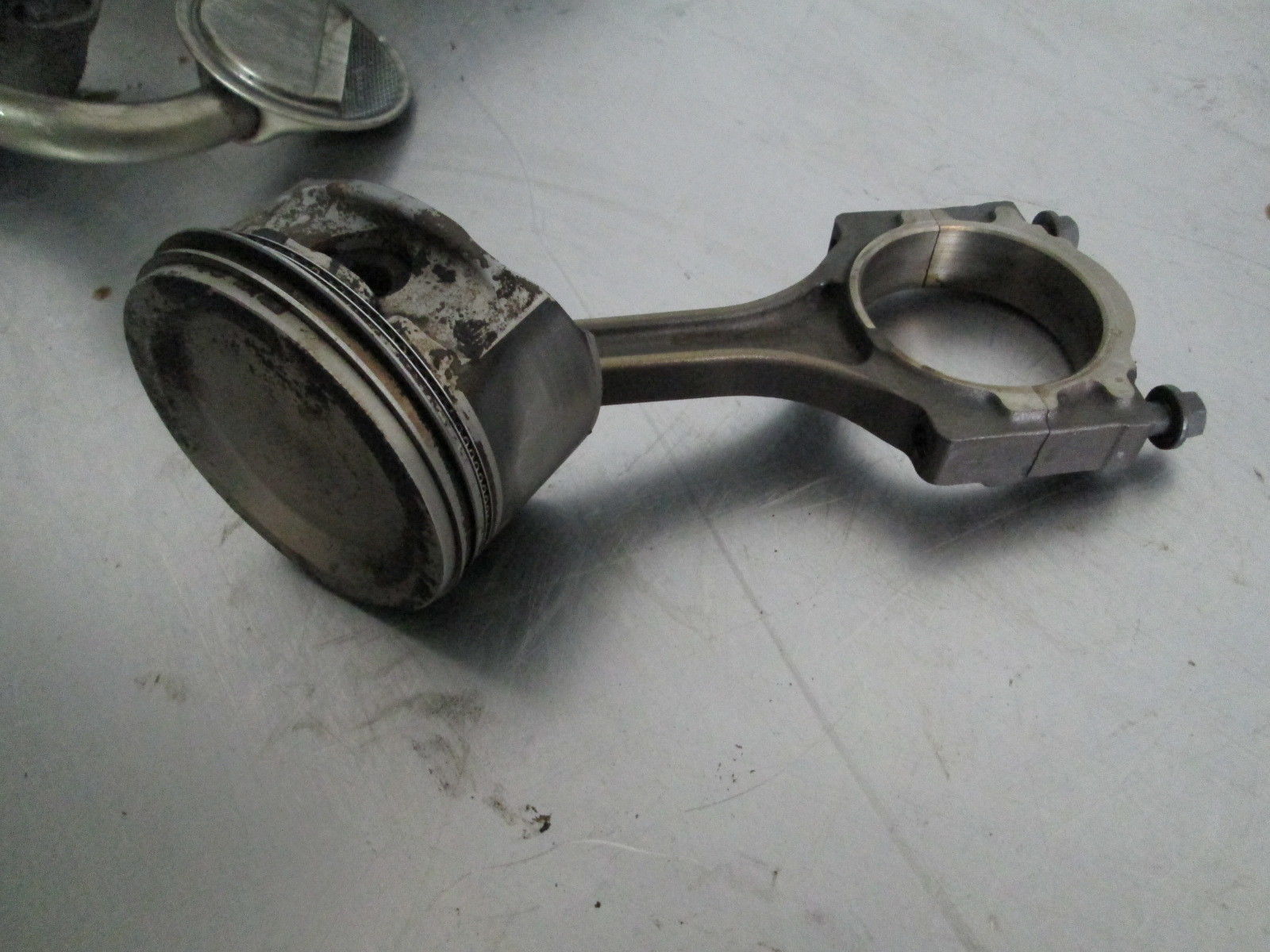

THIS ENGINE DIFFERS FROM OTHER HIGH VALUE ENGINES BY HAVING DISHED PISTONS WITHOUT RELIEFS AND HAVING A BORE OF 94MM AS OPPOSED TO 99MM OF OTHER 3.5/3.9

*******
