NISSAN 2.4 KA24DE

The 2.4 L (2389 cc) KA24DE was used in many Nissan cars and trucks. Most KA24DEs bound for the US were built in the Mexican city of Aguascalientes, with the exceptions of the 240SX, 1994-97 Altima (re-badged Bluebird SSS), and the U13 Bluebird released in Australia with FWD configuration, which were manufactured in Fukuoka Prefecture, Japan. The KA24DE is very similar to the KA24E. The KA24E is SOHC with three valves per cylinder actuated by rocker arms, and the KA24DE is DOHC with four valves per cylinder and shim-over-bucket valve actuation. Design improvements of the dual cam engine include the use of a knock sensor, larger diameter girdled main bearings in the Japanese block, different oil pan (not interchangeable between Japanese and Mexican blocks), different oil pickup (front pickup on Japanese block and side on Mexican block), dipstick location (toward the rear of block on Mexican and mid block on Japanese) and piston oil squirters. In addition to the increased power and torque, the KA24DE has a higher redline than the KA24E.[citation needed] KA24de-a is an Altima specific model of the ka24de. The head and block are non-interchangeable between all other models and are uniquely cast for front wheel drive operation. Differences in the Japanese block to Mexican are also present. The Mexico blocks (all DEs except those found in the S series) implemented a distributor and oil pump drive similar to the L series; from the crank nose. They also used a single row chain for the upper timing assembly without valve cover mounted guide. In addition to this, they removed the rearmost cam journal in the Mexico head. The crank rides on individually capped bearings with a slightly smaller diameter than the Japanese block, with shorter, slightly lower compression pistons in cylinders that have thicker walls than the Japanese DE. They retained the knock sensor and piston oilers.[WIKI]

SIZES BLOCK MATERIAL HEAD MATERIAL CAM TYPE FUEL SYSTEM
2.4 CAST IRON ALUMINUM DOHC MPFI

ITEMS

BRACKETS EXHAUST MANIFOLD INTAKE MANIFOLD OIL PAN PISTON
SENSORS TIMING COVER TIMING SET VALVE COVER VALVE INFORMATION

LISTING TEMPLATES

SIZES COMPATABILITY ENGINE TEMP HEAD TEMP CRANK TEMP NOTES
2.4 DOHC 93-97 ALTIMA 2.4A 2.4A **** ****
2.4 DOHC 95-96 240SX 2.4B 2.4B **** ***
2.4 DOHC 96-97 ALTIMA 2.4C 2.4A **** CALI EMMISIONS
2.4 SOHC 96-97 PICKUP 2.4D 2.4C **** NOTE 2WD OR 4WD
SOHC
2.4 DOHC 97 ALTIMA 2.4E 2.4A **** FROM 7/96
2.4 DOHC 97-98 240SX 2.4F 2.4D **** NOTE AUTO OR MANUAL
2.4 DOHC 98-99 ALTIMA 2.4G 2.4E **** ****
2.4 DOHC 98 FRONTIER 2.4H 2.4F **** CALI EMMISIONS
2.4 DOHC 98-00 FRONTIER
00 XTERRA
2.4I 2.4F **** NOTE CALI OR FED
NOTE 2WD OR 4WD
NOTE AUTO OR MANUAL
2.4 DOHC 00 FRONTIER 2.4J 2.4F **** FED 4WD
2.4 DOHC 00-01 ALTIMA 2.4K 2.4G **** ****
2.4 DOHC 01-04 FRONTIER XTERRA 2.4L 2.4H **** ****

VALVE INFORMATION SOHC

MAKE MODEL YEAR RANGE
NISSAN 240SX 1989-1990
NISSAN AXXESS 1990
NISSAN D21 1990-1994
NISSAN PICKUP 1995-1997
NISSAN STANZA 1990-1992
TYPE HEAD DIAMETER STEM DIAMETER O.A.L. GROOVES LOCATION
EXHAUST 40.1 8 122.3 1 *NIS24BU
INTAKE 34.1 7 121.3 1 *NIS24BU

VALVE INFORMATION DOHC

MAKE MODEL YEAR RANGE
NISSAN ALTIMA 1998-1999
NISSAN FRONTIEER 1998-2004
NISSAN XTERRA 2000-2004
TYPE HEAD DIAMETER STEM DIAMETER O.A.L. GROOVES LOCATION
EXHAUST 31.3 7 96.8 1 *NIS24CU
INTAKE 30.6 7 101.1 1 *NIS24CU

VALVE INFORMATION DOHC ALTIMA

MAKE MODEL YEAR RANGE
NISSAN ALTIMA 2000-2001
TYPE HEAD DIAMETER STEM DIAMETER O.A.L. GROOVES LOCATION
EXHAUST 31.3 7 96.8 1 *NIS24AU
INTAKE 36.7 7 99.3 1 *NIS24AU

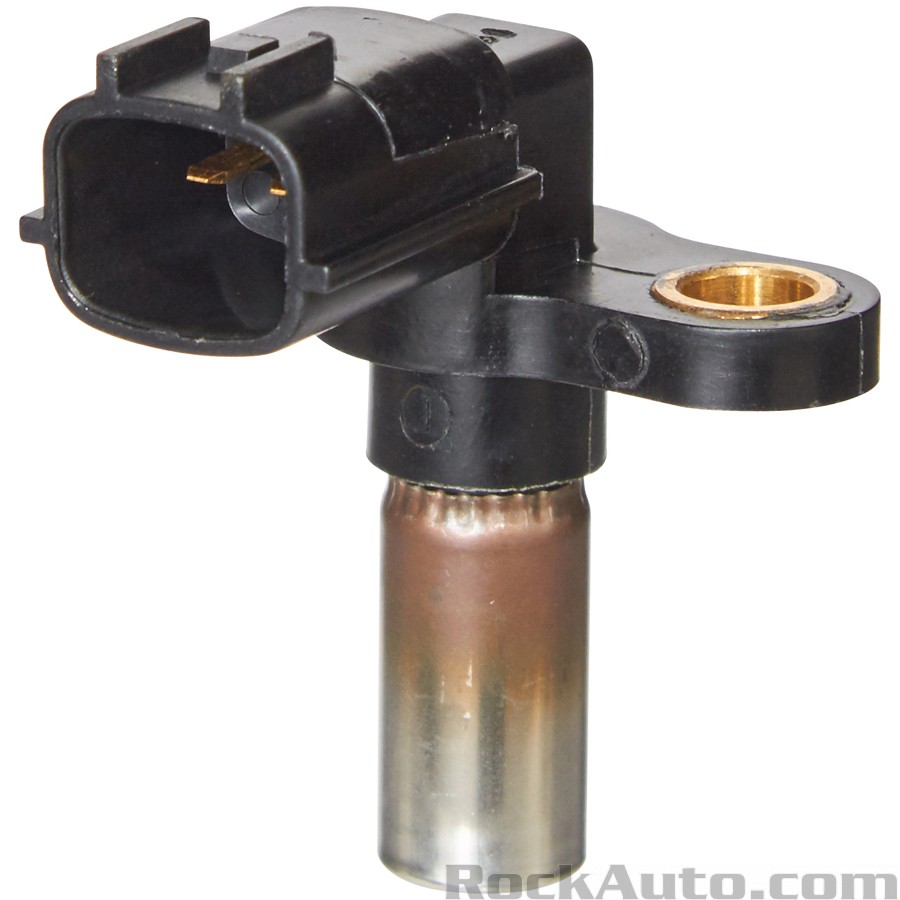

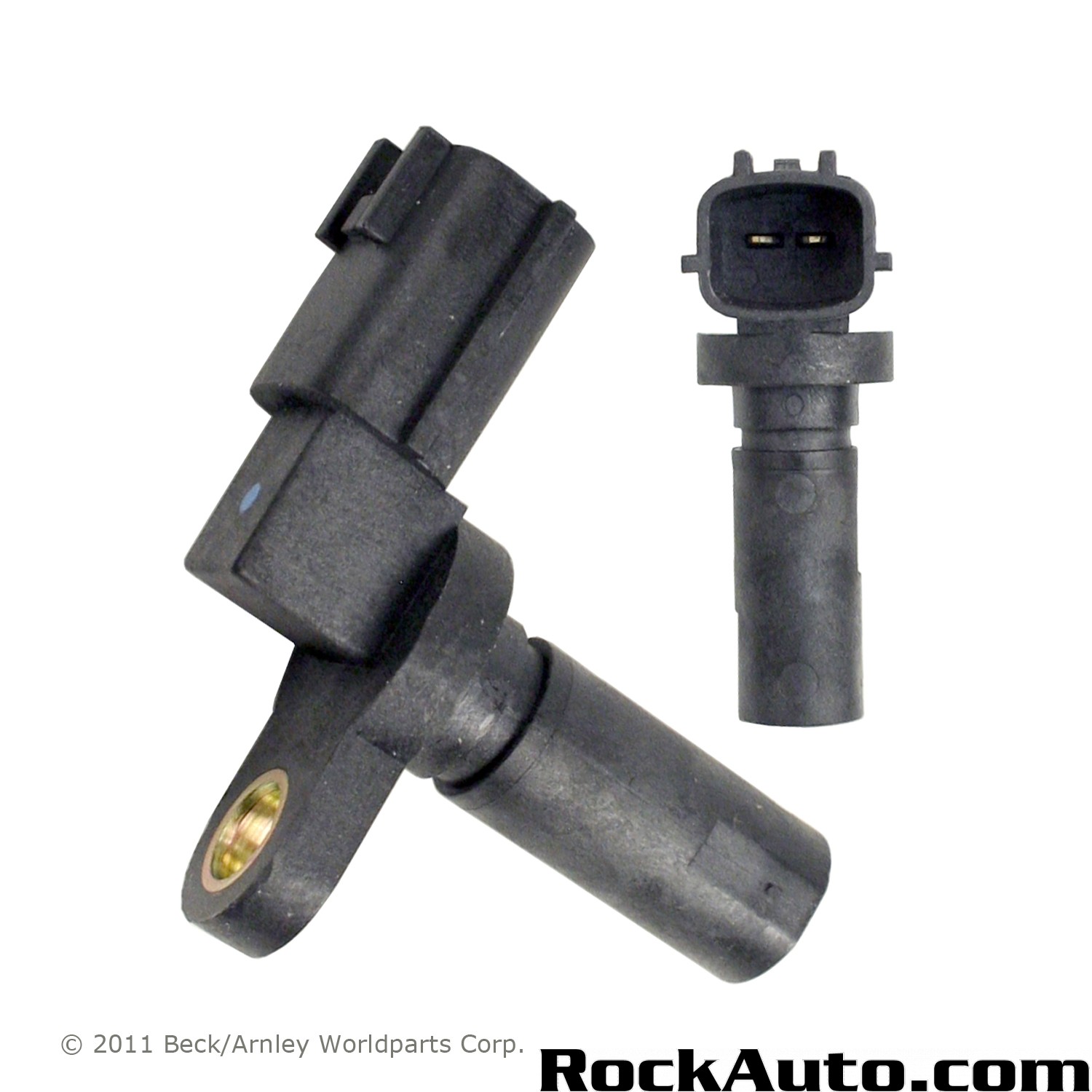

CRANKSHAFT POSITION SENSOR
93-97 ALTIMA
93-02 QUEST
97-02 VILLAGER

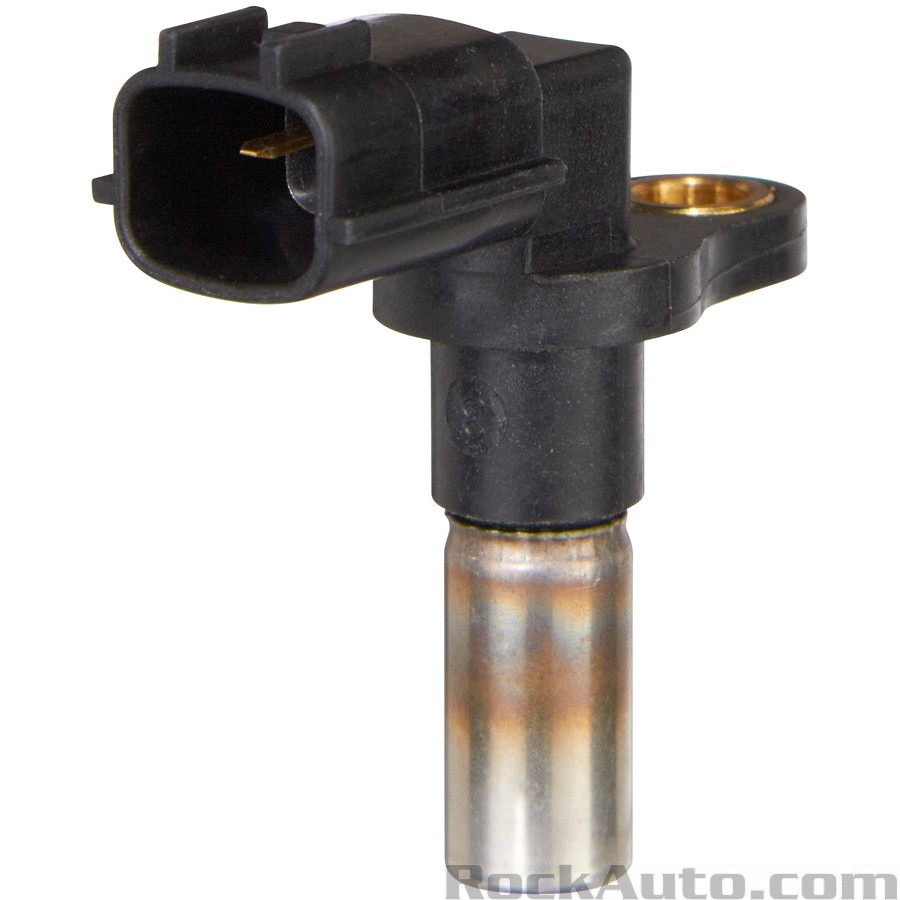

CRANKSHAFT POSITION SENSOR
95-97 J30
95-98 200SX 240SX
96 300ZX
95-99 SENTRA

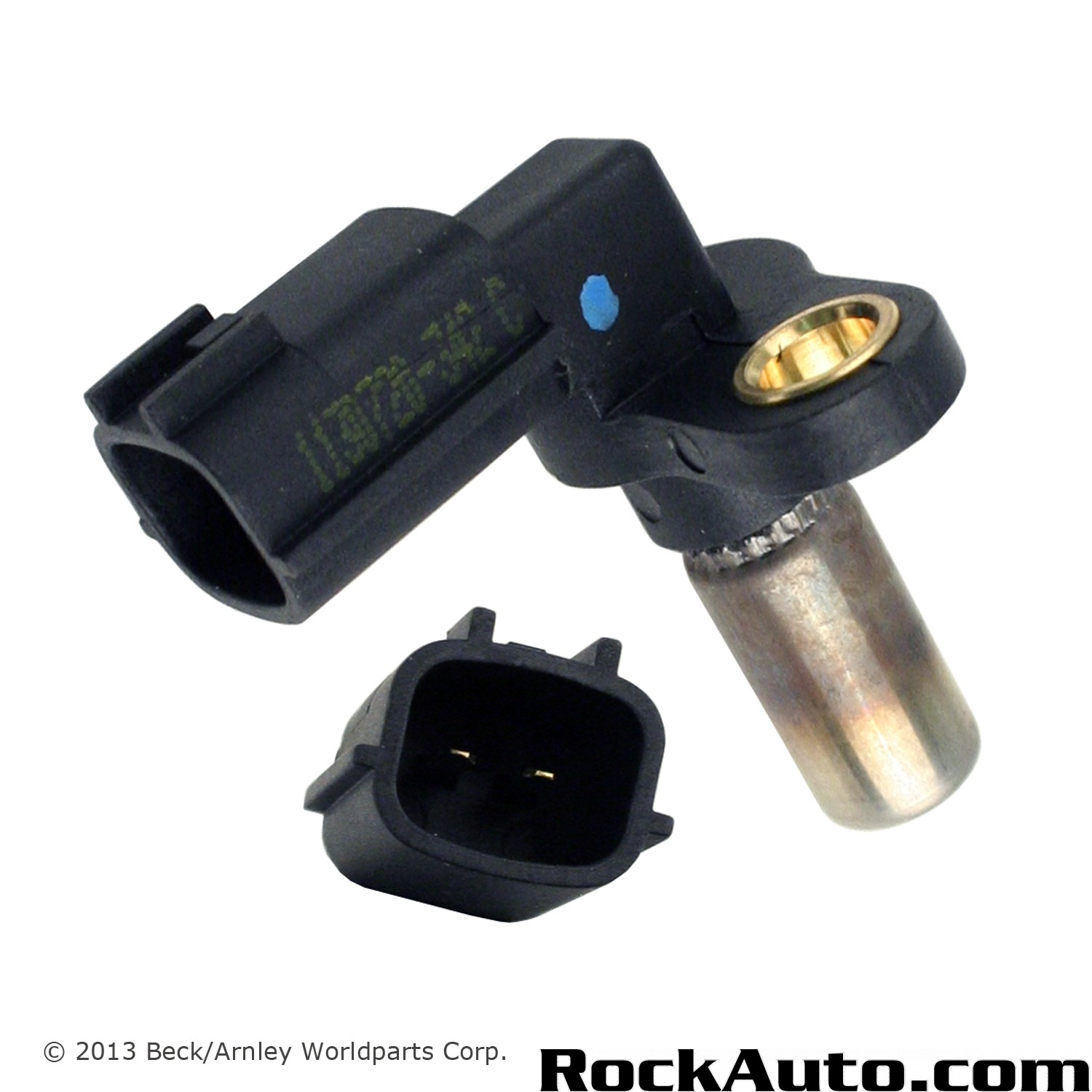

CRANKSHAFT POSITION SENSOR
97-00 QX4
96-00 PATHFINDER
96-97 PICKUP

CRANKSHAFT POSITION SENSOR
97-00 QX4
96-00 PATHFINDER
96-97 PICKUP

CRANKSHAFT POSITION SENSOR
98-01 ALTIMA

CRANKSHAFT POSITION SENSOR
98-07 FRONTIER
00-04 XTERRA

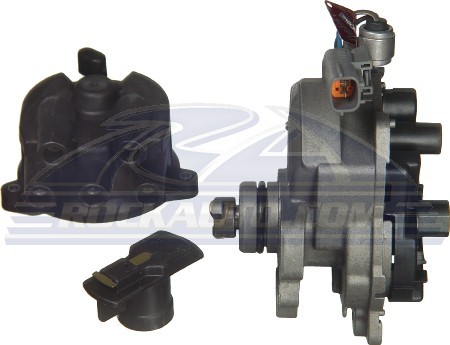

DISTRIBUTOR
93-96 ALTIMA

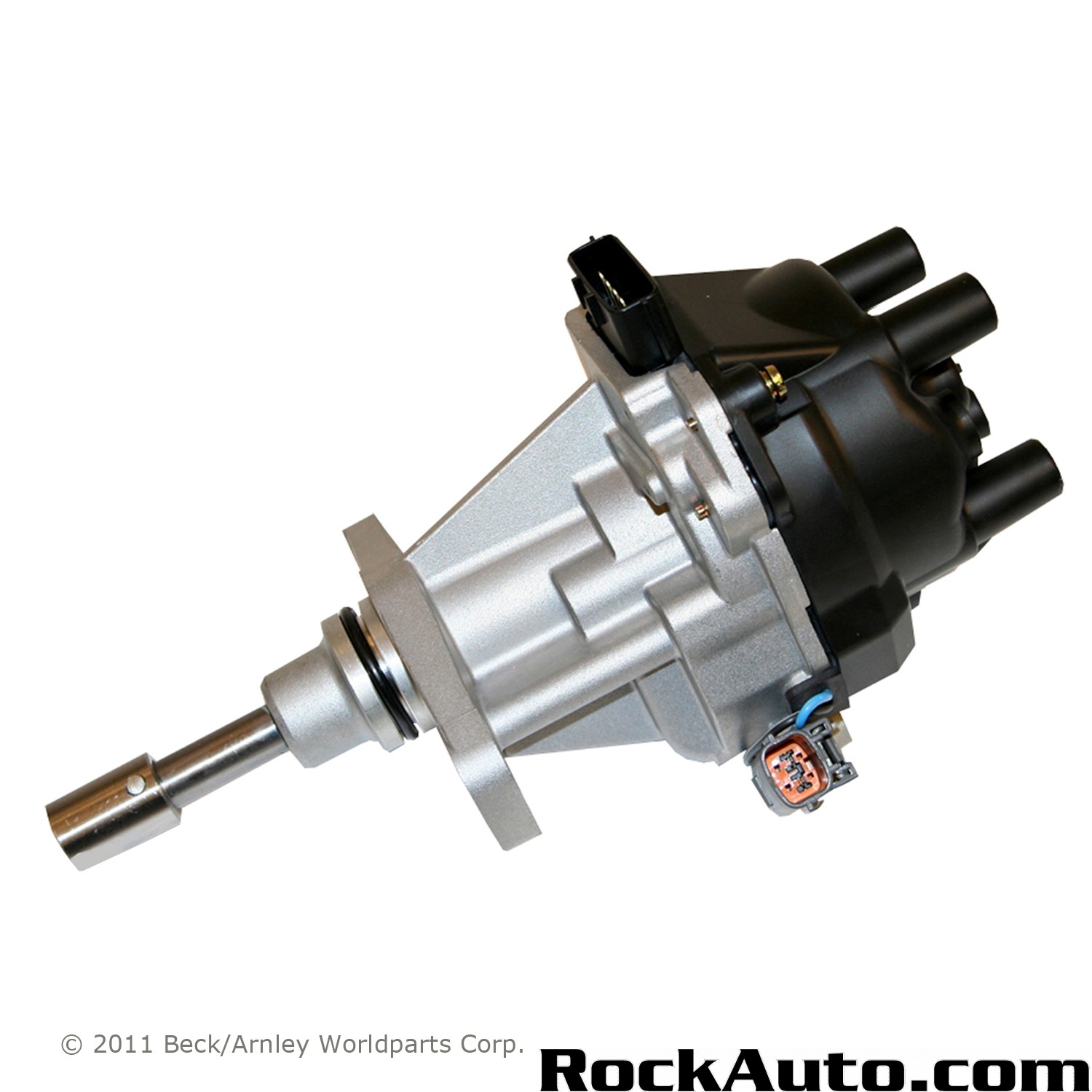

DISTRIBUTOR
94-98 240SX

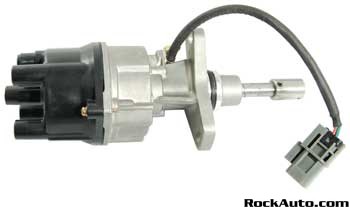

DISTRIBUTOR
1989-1990 240SX
90-94 D21
95-96 PICKUP

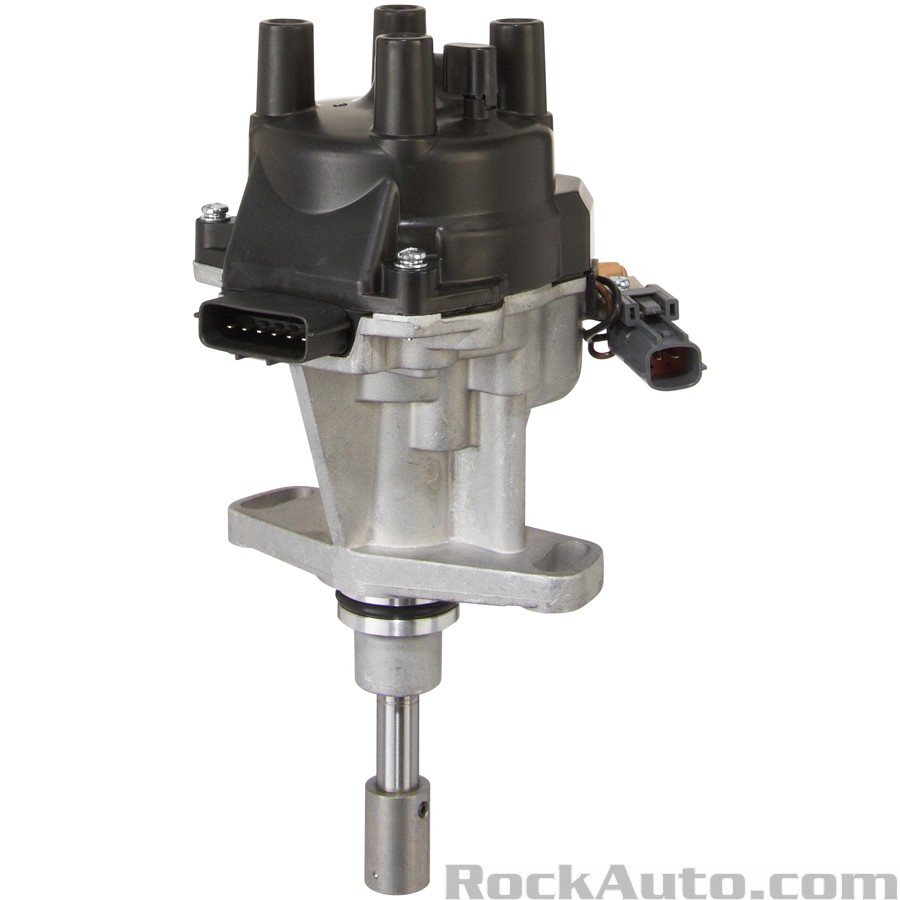

DISTRIBUTOR
97-99 ALTIMA

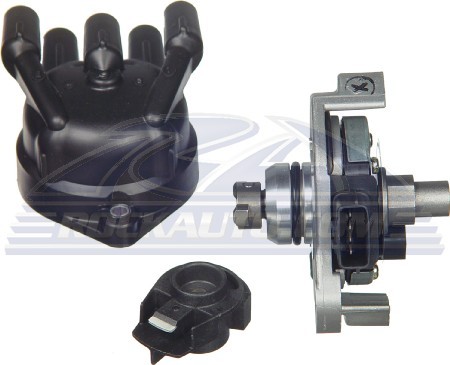

DISTRIBUTOR
98-00 FRONTIER
00 XTERRA

DISTRIBUTOR
FROM 7/96
97-01 ALTIMA

DISTRIBUTOR
98-15 FRONTIER
00-04 XTERRA

UPPER INTAKE
93-97 ALTIMA

UPPER INTAKE
95 240SX

UPPER INTAKE
93-97 PICKUP

UPPER INTAKE
96 240SX

UPPER INTAKE
97-98 240SX

UPPER INTAKE
98-01 ALTIMA

UPPER INTAKE
98-04 FRONTIER
00-04 XTERRA

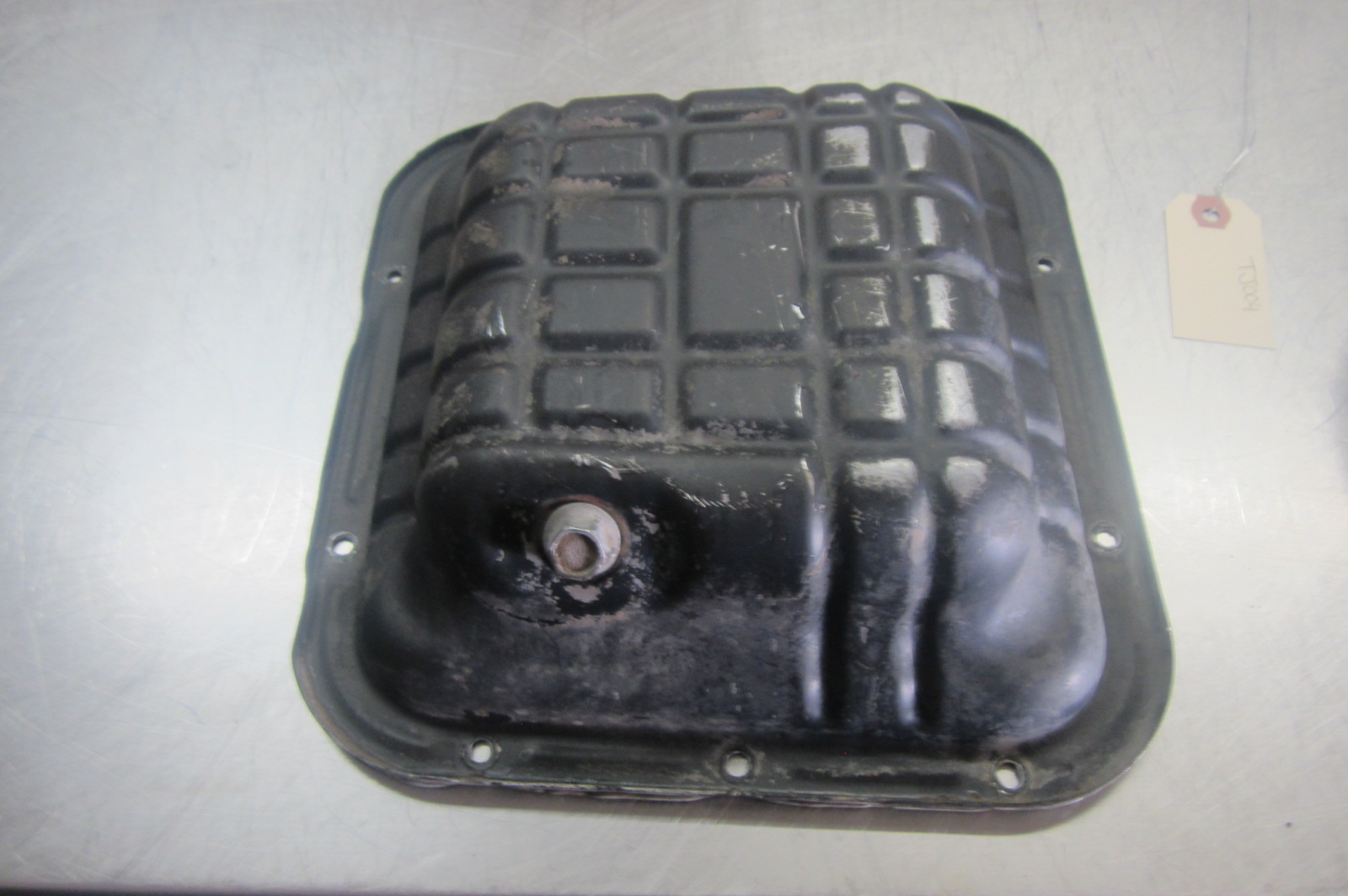

OIL PAN
91-98 240SX

OIL PAN
93 ALTIMA

OIL PAN
94-95 ALTIMA

OIL PAN
96-97 ALTIMA

OIL PAN
96-97 PICKUP 2WD

OIL PAN
90-97 PICKUP 4WD
98-00 FRONTIER 4WD

OIL PAN
98-01 ALTIMA

OIL PAN
98-00 FRONTIER 2WD
01-04 FRONTIER ALL
00-04 XTERRA(12 BOLT)

******
