TOYOTA 2.4 2AZFE

The 2AZ-FE is a 2.4 L (2362 cc) version built in Japan (Kamigo Plant and by Toyota Industries Corporation), at TMMK in the USA and also built in China for select Scion xB models, obtains a total displacement of 2362 cc with 88.5 mm (3.5 in) bore and 96.0 mm (3.8 in) stroke, with a compression ratio of 9.6:1. Output is 160 hp (120 kW) at 5600 rpm;162 lb·ft (220 N·m) of torque at 4000 rpm. Later versions of the 2AZ-FE engine were upgraded with 9.8:1 compression ratio, a slightly more aggressive intake cam profile, 6500 rpm red line, and piston oil squirters. These later versions are rated at 161 hp (120 kW) in the Scion tC, 177 hp (132 kW) in the Rav4, and 158 hp (118 kW) in the Camry, Corolla XRS, and Scion xB. However, these latter 2AZ-FE models were the first to be rated under the new SAE J1349 standard.[citation needed] The new standard usually produces more conservative numbers, though no definitive comparison is available since the two versions were never tested by the same standard.The Rav 4 uses a different timing chain cover than the Camry, they can however be interchanged.[citation needed] A TRD supercharger was available for the Scion tC until Spring 2009. There have been complaints of this engine "burning oil" in North America with the issue starting after 45k miles, though mostly after 60k-75k miles. Piston ring design has been identified as a problem. Toyota has even issued a TSB (Technical service bulletin) TSB #0094-11 in August 2011 but have refused to issue general recall. There are several class-action lawsuits underway regarding this widespread issue. In January 2015, Toyota North America caved in and issued extended warranty notification (ZE7) for this issue. However, Toyota still insists that burning 1 quart of oil every 1200 miles is "normal". This applies to Toyota North America vehicles only[WIKI]

SIZES BLOCK MATERIAL HEAD MATERIAL CAM TYPE FUEL SYSTEM
2.4 ALUMINUM ALUMINUM DOHC MPFI

ITEMS

BRACKETS EXHAUST MANIFOLD INTAKE MANIFOLD OIL PAN PISTON
SENSORS TIMING COVER TIMING SET VALVE COVER VALVE INFORMATION

LISTING TEMPLATES

SIZES COMPATABILITY ENGINE TEMP HEAD TEMP CRANK TEMP NOTES
2.4 2AZFE 01-03 HIGHLANDER ***********
2.4 2AZFE 02-03 CAMRY/ SOLARA 03 CAMRY IS FED EMMISION ONLY
2.4 2AZFE 03-06 CAMRY CALI EMMISION
2.4 2AZFE 04-05 RAV4
05-06 TC
THRU 4/6
2.4 2AZFE 04-06 CAMRY/ SOLARA FEDARAL EMMISION
JAPAN BUILD
2.4 2AZFE 04-06 CAMRY/ SOLARA FEDARAL EMMISION
US BUILD
2.4 2AZFE 04-07 HIGHLANDER
2.4 2AZFE 06-08 RAV4 ***********
2.4 2AZFE 06-10 TC FROM 5/6
2.4 2AZFE 07-11 CAMRY HYBRID
2.4 2AZFE 07-09 CAMRY
07-08 SOLARA
FEDERAL EMMISION
2.4 2AZFE 07-09 CAMRY CALIFORNIA EMMISIONS
2.4 2AZFE 08-15 XB ***********
2.4 2AZFE 09-10 VIBE ***********
2.4 2AZFE 09-12 COROLLA
09-13 MATRIX
***********
2.4 2AZFE 10-12 HS250H ***********

VALVE INFORMATION

MAKE MODEL YEAR RANGE
LEXUS HS250H 2010-2012
PONTIAC VIBE 2009-2010
SCION TC 2005-2010
SCION XB 2008-2013
TOYOTA CAMRY 2002-2010
TOYOTA COROLLA 2009
TOYOTA RAV4 2001-2008
TOYOTA SOLARA 2002-2008
TYPE HEAD DIAMETER STEM DIAMETER O.A.L. GROOVES LOCATION
EXHAUST 29.5 5.5 101.2 1 *TOY24AU
INTAKE 34 5.5 101.7 1 *TOY24AU

BRACKETS

EXHAUST MANIFOLD

INTAKE MANIFOLD

OIL PAN

SENSORS

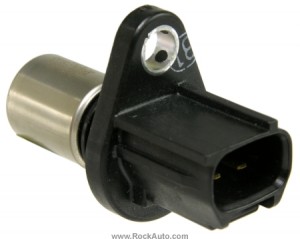

CAMSHAFT POSITION SENSOR

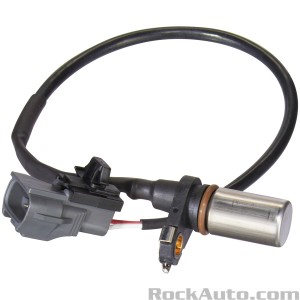

CRANKSHAFT POSITION SENSOR
