TOYOTA 3.3 3MZFE

The 3MZ-FE is a 3.3 L (3310 cc) version. Bore is 92 mm and stroke is 83 mm. Output is 225 hp (168 kW) with 240 lb·ft (325 N·m) of torque in the Camry and 230 hp (172 kW) with 242 lb·ft (328 N·m) of torque in the Sienna and Highlander. It also features VVT-i, ETCS-i (Electronic Throttle Control System — intelligent/DBW), ABS plastic intake, and increased throttle body diameter over the 1MZ. The 3MZ uses a new flat-type knock sensor, which is a departure from the typical resonator type knock sensor used on the previous MZs. Those MZs had poor knock control, or perhaps oversensitivity when detecting knock, and power loss up to 20 hp (15 kW) may be realized due to erratic ignition timing when using an octane lower than 91. The new flat-type knock sensor is a completely different design and detects more frequencies than the traditional resonator type, and thus, provides the ECU with more accurate data. A bolt goes through the center of the knock sensor, which then mates the sensor to the block on each bank.[WIKI]

SIZES BLOCK MATERIAL HEAD MATERIAL CAM TYPE FUEL SYSTEM
3.3 ALUMINUM ALUMINUM DOHC MPFI

ITEMS

BRACKETS EXHAUST MANIFOLD INTAKE MANIFOLD OIL PAN PISTON
SENSORS TIMING COVER TIMING SET VALVE COVER VALVE INFORMATION

LISTING TEMPLATES

SIZES COMPATABILITY ENGINE TEMP HEAD TEMP CRANK TEMP NOTES
3.3 DOHC 3MZFE 04-06 ES330 3MZFEB 3MZFEA ***** ***********
3.3 DOHC 3MZFE 04-06 CAMRY SIENNA
04-07 SOLARA
3MZFEA 3MZFEA ***** 2WD SIENNA ONLY
3.3 DOHC 3MZFE 04-06 SIENNA 3MZFEE 3MZFEA ***** AWD SIENNA ONLY
3.3 DOHC 3MZFE 04-07 HIGHLANDER
04-06 RX330
3MZFEC 3MZFEA ***** 4WD AWD ONLY
NON HYBRID
3.3 DOHC 3MZFE 06-09 HIGHLANDER
06-09 RX400H
3MZFED 3MZFEA ***** HYBRID

VALVE INFORMATION

MAKE MODEL YEAR RANGE
LEXUS ES300 1994-2003
LEXUS ES330 2004-2006
LEXUS RX300 1999-2003
LEXUS RX330 2004-2006
LEXUS RX400H 2006-2008
TOYOTA AVALON 1995-2004
TOYOTA CAMRY 1994-2006
TOYOTA HIGHLANDER 2001-2010
TOYOTA SIENNA 1998-2006
TOYOTA SOLARA 1999-2007
TYPE HEAD DIAMETER STEM DIAMETER O.A.L. GROOVES LOCATION
EXHAUST 27.3 5.5 95.3 1 *TOY30AU
INTAKE 34 5.5 95.2 1 *TOY30AU

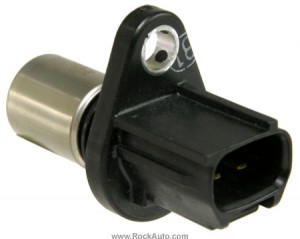

CAMSHAFT POSITION SENSOR

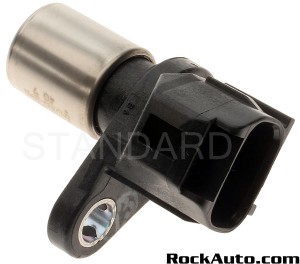

CRANKSHAFT POSITION SENSOR

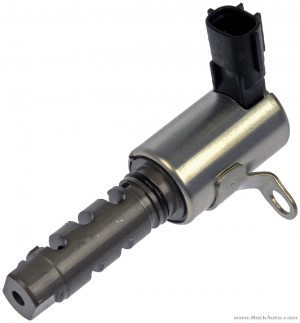

RIGHT VARABLE VALVE TIMING OIL CONTROL VALVE

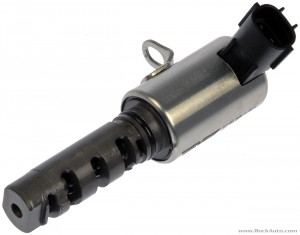

LEFT VARABLE VALVE TIMING OIL CONTROL VALVE
