Creating HTML Reports

Jennifer knows that a key part of any digital plan submission or data validation workflow is to provide the results to the submitter. Without this feedback, they will have to do a lot more work to identify the problems. Providing a detailed and accurate validation report will make it easier for the submitter to fix any problems, thereby reducing the total time to get valid results into the system.

Jennifer is also aware that FME can produce reports in many different ways. If her department already had a business intelligence tool or data analyst who could set up a reporting workflow, FME could simply supply the necessary data for reporting. This option would require writing the data to a database, data warehouse, or data lake, and setting up the reporting in a different tool.

Another option would be to stream the results back in a format suitable for display using custom front-end code, e.g., JSON or XML. You can also connect web apps to FME Server through the FME Server REST API. This method can produce powerful and tailormade results, but it requires writing custom code, which doesn’t work for every project.

Jennifer’s team is small, so she wants a quick and lightweight solution. She decides to use the HTMLReportGenerator. This transformer will let her quickly create custom HTML snippets, tables, and web maps. Combined with FME Server, the results can be instantly sent back to the submitter, all without having to write any code.

Note

Learn more about building custom web applications using the FME Server REST API.

Jennifer decides to create three sections for the HTML report:

  1. A summary, including the number of valid and invalid features, which will be included in every report.
  2. A web map of failed features, only included if some features fail.
  3. A table of failed features, only included if some features fail.

Create a Custom HTML Snippet

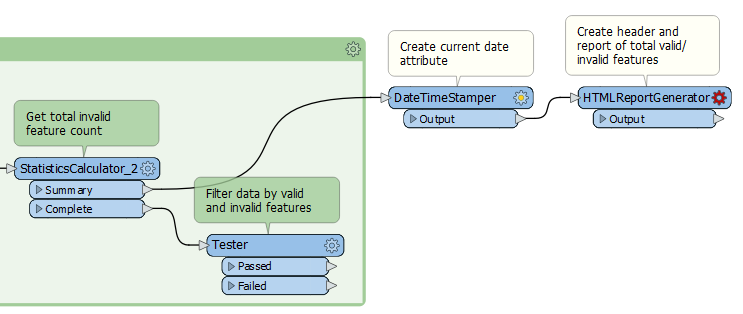

To create the report summary, Jennifer connects two transformers to the StatistiscsCalculator_2:Summary port: a DateTimeStamper and then an HTMLReportGenerator.

Adding a DateTimeStamper and an HTMLReportGenerator

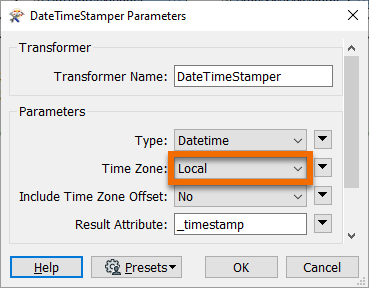

Jennifer will use the DateTimeStamper to add a date and time to her report so the submitter knows when it was run. She opens its parameters and chooses “Local” for the Time Zone. This will create a timestamp in standard FME format using the time zone of the machine running the workspace.

Setting the DateTimeStamper parameters

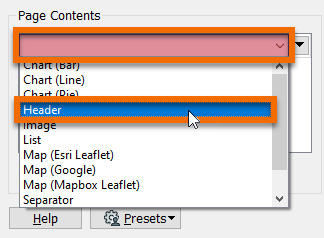

Next, Jennifer opens the HTMLReportGenerator parameters. She will build report contents by selecting components from the dropdown on the left, where she can also add, remove, and reorder components in the report. Jennifer clicks the empty first row under Page Contents and chooses Header.

Choosing a Header for the first Page Contents

Under Content Settings she enters “Data Validation Report” for the Text and sets the Header Level to "H1".

Setting the Header parameters

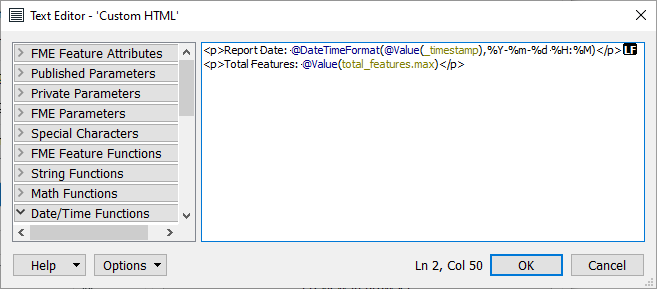

Then she clicks in the empty row below Header and selects Custom HTML. This component will let her create custom text that reports attribute values she’d like the user to see. She double-clicks the empty cell next to Custom HTML and enters the following HTML snippet in the Text Editor:

<p>Report Date: @DateTimeFormat(@Value(_timestamp),%Y-%m-%d %H:%M)</p>
<p>Total Features: @Value(total_features.max)</p>

Entering the HTML snippet in the Text Editor

The @Value() sections will insert the value of the chosen attribute. @DateTimeFormat() will turn the basic timestamp into a formatted date time string.

She clicks OK.

Note

You can manually type in the Text Editor, or use the options on the left pane to insert attributes or access string, math, and date/time functions. This method is less subject to syntax mistakes.

Text Editor Documentation

Note

Ok, so this section does use a tiny bit of code, but it’s just basic HTML. Learn more about the <p> tags if you are unfamiliar with HTML.

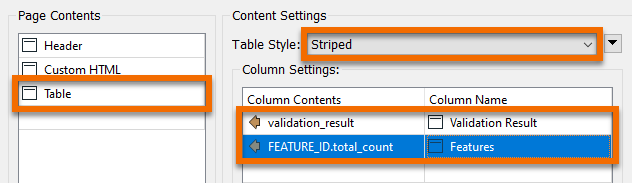

The final component Jennifer adds is a Table. She fills out the Table section like this:

Table Style: Striped

Column Contents

Column Name

validation_result

Validation Result

FEATURE_ID.total_count

Features

Setting the Table parameters

Then she clicks OK

Jennifer could run her workspace here and preview the HTML using feature caching and Visual Preview, but it won’t be rendered until she opens it in a browser. She needs to add an HTML writer in order to test this section.

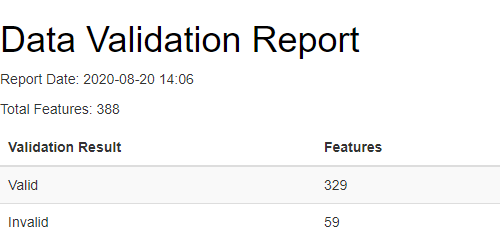

She adds an HTML writer using Quick Add and sets its Dataset path to C:\FMEData2020\Output\Training\validation.html. She connects the HTMLReportGenerator to the HTML writer feature type and runs her workspace. She clicks Open Containing Folder to find the HTML file and then opens it in her preferred browser. She sees the summary including a table. The formatting isn’t great, but this is a good start!

Data Validation Report

Create a Web Map

Next, Jennifer would like to add a web map showing any invalid features. She can easily make a basic map with the HTMLReportGenerator, but she’d also like this map to have popups with information about the invalid feature. This step will help the submitter identify problems to fix.

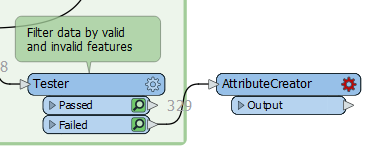

To create the custom text to use in the popup, Jennifer adds an AttributeCreator_2 connected to the Tester:Failed port.

Adding an AttributeCreator

Note

Jennifer is going to create several separate streams in her workspace, one for each section of the report (HTML title, web map, and a table of results). She’ll combine them together later. She could decide to just do everything in one HTMLReportGenerator, but because she wants to include some sections for valid features and some for invalid ones, it will be easier to create each section separately.

She creates a New Attribute called “label” and sets the Attribute Value to:

ID: @Value(FEATURE_ID). OGC valid: @Value(ogc_passed). Diameter valid: @Value(diam_passed).

This text will report the ID and validation result for each feature. She closes the AttributeCreator_2 parameter dialog.

Next, she adds an HTMLReportGenerator_2 connected to the AttributeCreator_2. She opens its parameters and clicks the blank dropdown under Page Contents and selects Header. She sets the Text to “Invalid Features Map” and sets it to Header Level “H1”.

Setting the Header parameters

Then she clicks in the empty row under Header and chooses Map (Esri Leaflet)

This HTML report section will add a web map using an Esri basemap on a Leaflet map. She chooses “label” (the one she just created) for the Label Attribute and uses the defaults for the other parameters.

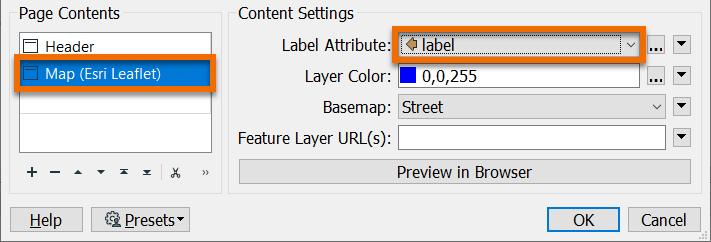

Setting the Map parameters

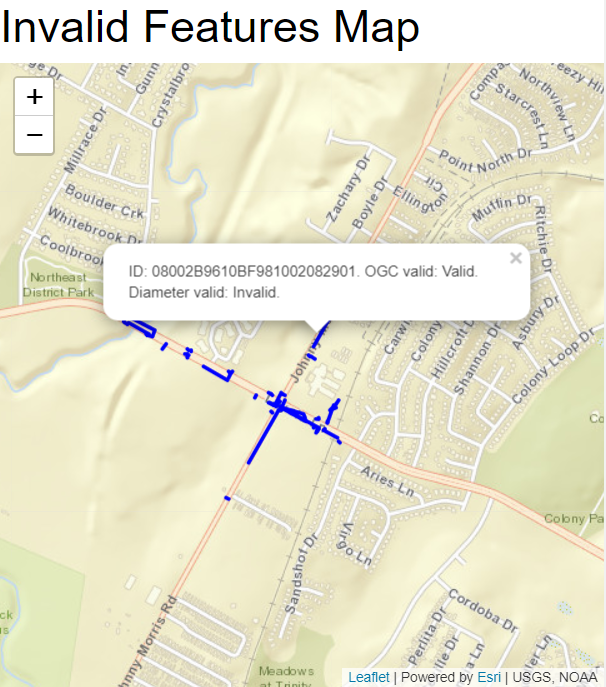

She clicks OK and connects the HTMLReportGenerator_2 to her HTML writer feature type. Then she runs the workspace. When it finishes she clicks the writer feature type and uses the Open Containing Folder button to find the HTML file she wrote. She opens it in a web browser. It looks good!

Invalid Features Map

Basemap attribution: Leaflet | Powered by Esri | USGS, NOAA

Note

Your title and web map might be in the wrong order. The HTML is written whenever the writer feature type receives features, so the order is liable to change. Jennifer will address this problem in a later section.

Create an HTML Table

While the interactive web map is useful, the submitter might prefer to read through a table of invalid features. Jennifer can add this using another HTMLReportGenerator.

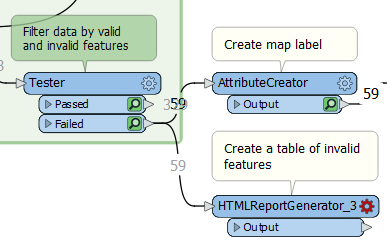

She adds HTMLReportGenerator_3 and connects it to the Tester:Failed port.

Adding another HTMLReportGenerator

In this transformer,  she adds a Header with Text set to “Invalid Features Table” and Header Level “H1”.

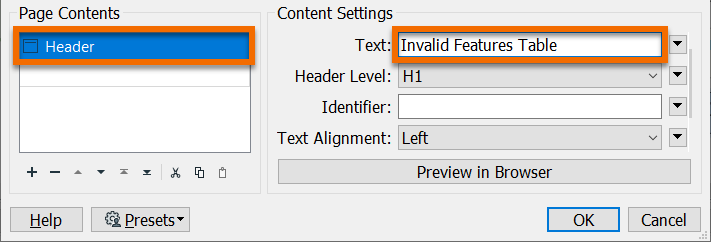

Setting the Header parameters

Next, she adds a Table. She chooses the Table Style “Striped”. Then she fills out the Column Settings table to show the values of the attributes FEATURE_ID, ogc_passed, and diam_passed for each invalid feature.

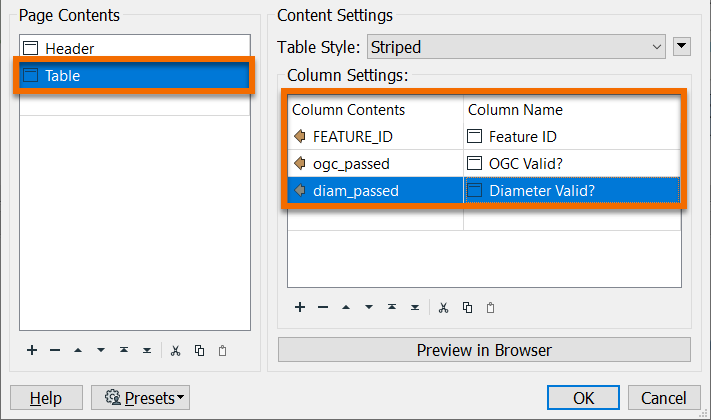

Setting the Table parameters

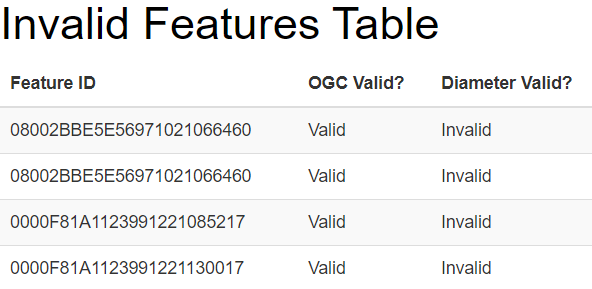

After filling out the Column Settings section she clicks OK. She connects the HTMLReportGenerator_3 to her HTML writer feature type, runs the workspace, and inspects the output. Now her page has a table of the invalid features.

Invalid Features Table

Layout an HTML Report

Jennifer notices three problems with her report:

  1. The order of each section is not reliable; sometimes the report is written in the wrong order.
  2. The title of the page in the browser (“Report”) is too generic.
  3. The margins of the page are very small, which doesn’t look very professional.

She can address these issues with transformers.

First she will use AttributeCreators to add an attribute setting the section order (title, map, then table) and then a single Sorter to make sure the sections are written in the right order.

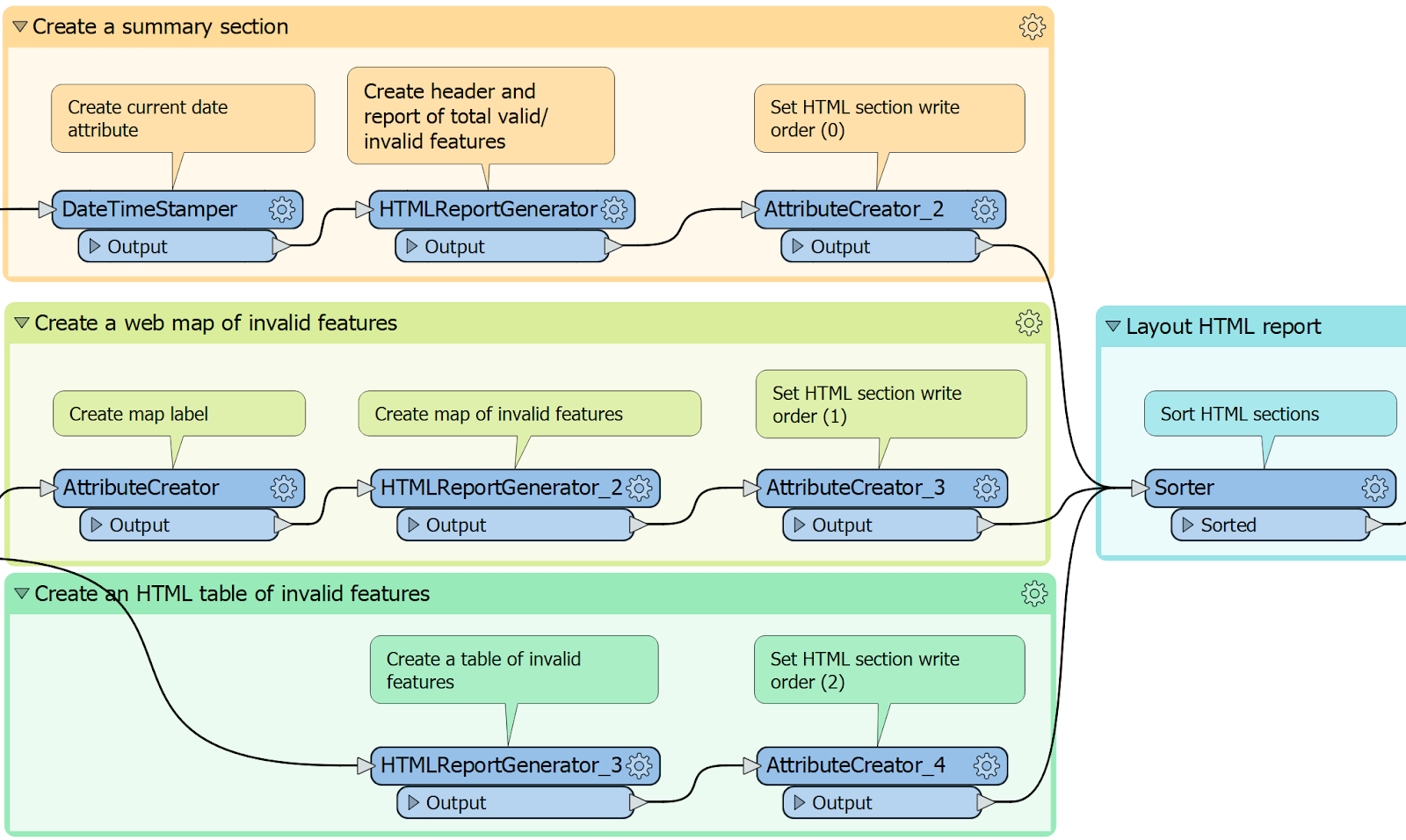

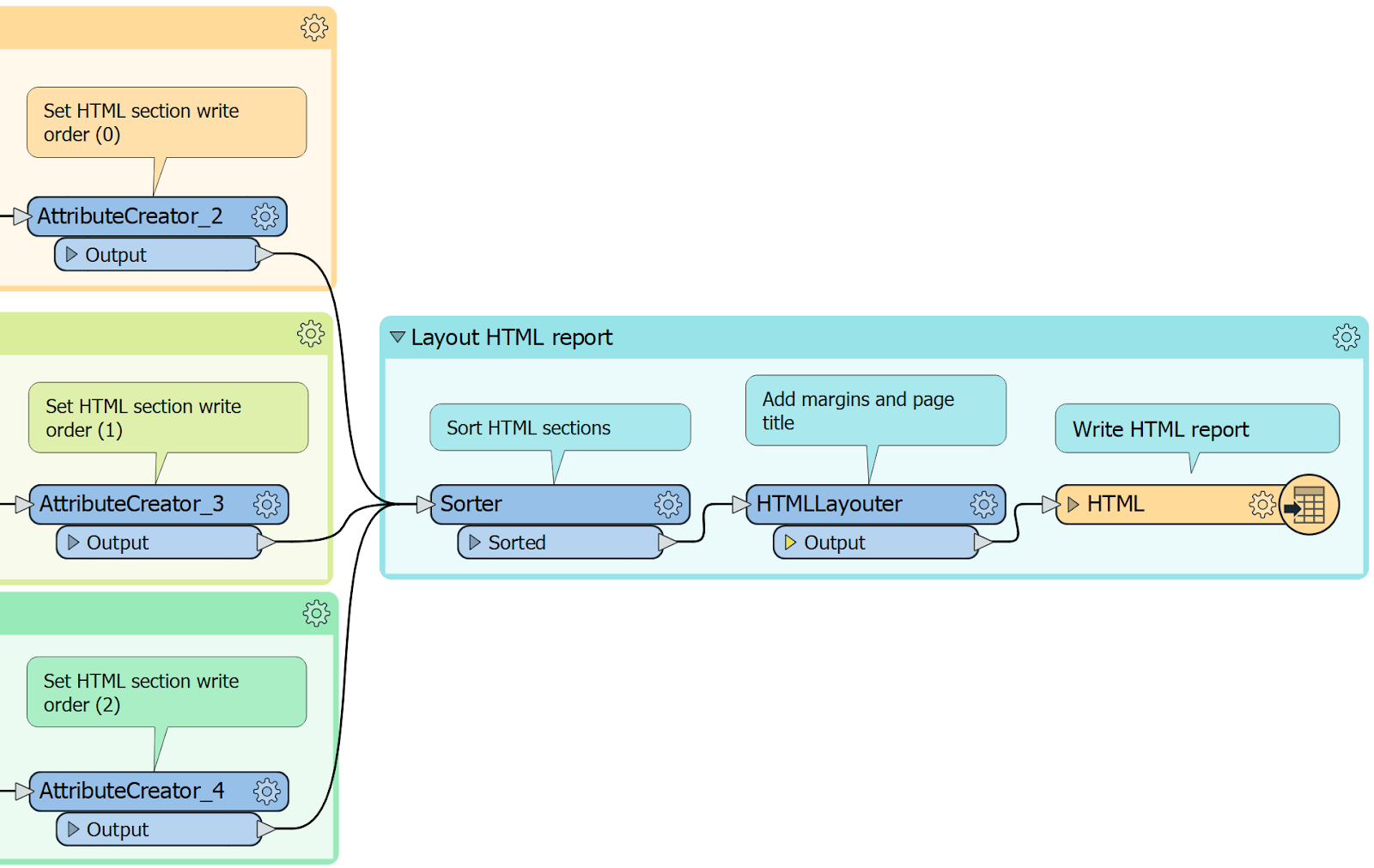

She adds an AttributeCreator_2 after the first HTMLReportGenerator (the title section) and makes a new attribute “order” set to 0. Then she adds an AttributeCreator_3 after HTMLReportGenerator_2 and sets “order” to 1. Finally, she adds an AttributeCreator_4 after HTMLReportGenerator_3 and sets “order” to 2.

Setting the order of sections using AttributeCreators

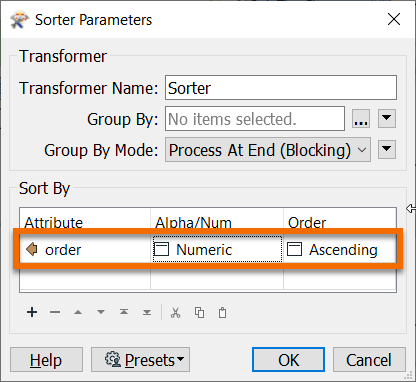

She then connects these three AttributeCreators to a Sorter and sets it to use the order attribute and sort Numeric, Ascending. This will ensure that the features reach the HTML writer feature type in the desired order.

Setting Sorter parameters

She clicks OK. Finally, she connects the Sorter to an HTMLLayouter transformer to add margins and a page title.

Adding an HTMLLayouter

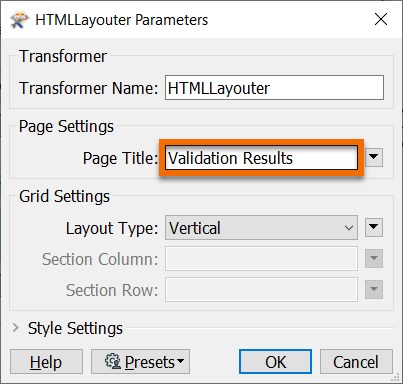

In the HTMLLayouter, she sets the Page Title to “Validation Results”.

Setting the HTMLLayouter parameters

Then she clicks OK.

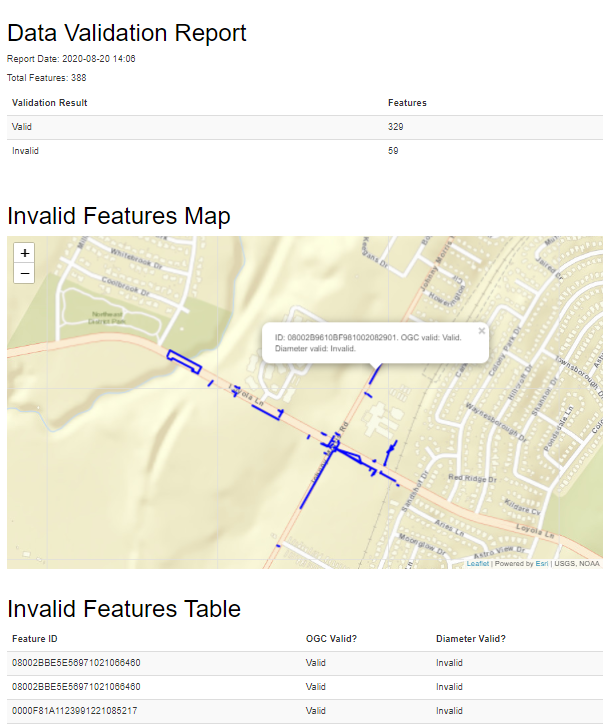

Jennifer runs her workspace. Now she has a nicely formatted basic HTML report that tells the submitter what features are invalid. They can refer to the report, fix the problems, and resubmit.

Data Validation Report

Test With Valid Data

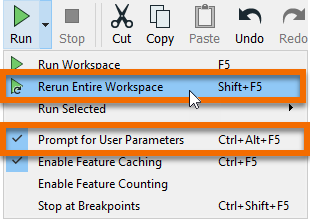

The final test is to make sure the workspace still works when the data is valid. Jennifer clicks the Run menu, makes sure Prompt for User Parameters is enabled, and then chooses Rerun Entire Workspace

Rerunning the workspace

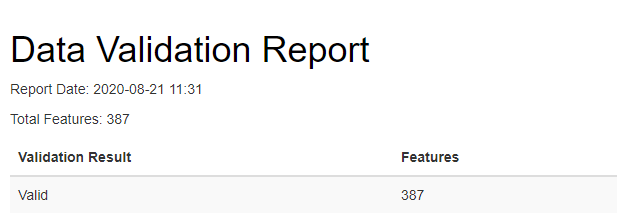

This time she chooses good_data.dwg as the input data and runs the workspace. It runs and she opens the output. The report simply shows the submitter that all features are valid.

Data Validation Report with valid features

Note

A common next step would be to automatically load the valid data into a city GIS database. We will skip that step for now, but accomplishing it is easy using FME Server Automations or an even more basic combination of a FeatureWriter (to write out the HTML to show the submitter) and a Tester to determine if all data is valid and should be loaded.

Note

FME also has HTML transformers for more advanced scraping and transformation of HTML code. For example, these can be used after an HTMLReportGenerator to edit the report’s appearance.

Exercise

Make sure you have followed along with Jennifer’s steps. Repeat the steps above using your own installation of FME 2020.1 request an on-demand virtual machine in the footer link below.
