Learning Objectives
After completing this unit, you'll be able to:
- Create a polygon feature using the LineBuilder transformer.
- Create multiple polygons when an attribute value changes.
Resources
Neighborhoods.csv
Video
Exercise
- Creating polygon features is similar to creating line features. Open FME Workbench 2020.1. Click New to start a new workspace. Click Readers > Add Reader and set Format to CSV (Comma-Separated Value).
- Click the ellipsis button [...] and select the Neighborhoods.csv file.
- Set the Coord. System to LL84.
- You can decide how to generate points using the methods covered earlier in the module: reader parameters or a VertexCreator.
- Add a LineBuilder transformer to the canvas connecting it to either the CSV reader or the VertexCreator depending on the method you chose to get the points.

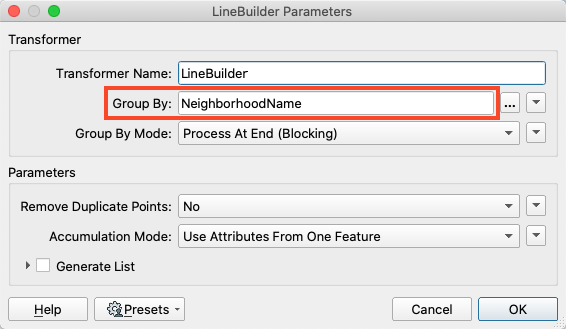

- In the LineBuilder parameters, set Group Processing > Group By to NeighbourhoodName. If the last point is the same as the first then a polygon is automatically created. In FME 2018 or older, the Group By option is not available. Use the Connection Break Attribute instead.

- Run the workspace and inspect the results.
Results

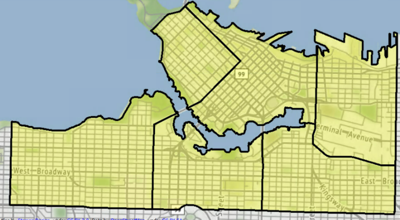

The output of polygons using any of the three methods and a LineBuilder transformer. Stylized in FME Data Inspector using map tiles by Stamen Design, under CC-BY-3.0. Data by OpenStreetMap, under CC-BY-SA.
