The VertexCreator

The VertexCreator takes attributes with coordinates and creates points. This transformer is most useful when:

The Mode parameter can also be used to build line, arc, or polygon geometry with the VertexCreator.

Exercise

  1. Open FME Workbench 2020.1. Click New to start a new workspace. Click Readers > Add Reader and set Format to CSV (Comma-Separated Value).
  2. Click the ellipsis button [...] and select the downloaded rapid_transit_stations.csv file, or paste in the URL.
  3. Set the Coord. System to UTM83-10, then click OK.
    1. Note: if you are using FME 2020 or later, you can choose to click the Parameters button and change x and y to string data types. This will ensure FME does not automatically create points when the data is read.
  4. The reader feature type appears on the canvas.

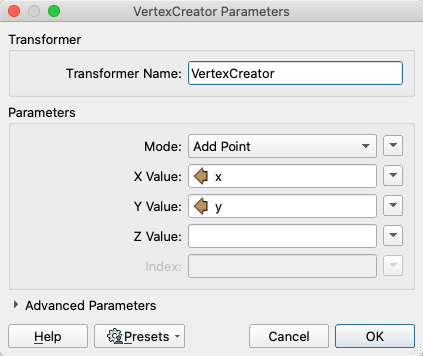

  5. After the reader is added to the canvas without setting the Attribute Definition in the parameters, add a VertexCreator transformer. The VertexCreator creates a point feature of each record using X/Y/Z or Longitude/Latitude/Elevation values stored in the attributes. Each point feature retains all the attributes of the original feature.VertexCreator transformer
  6. Run the workspace and inspect the results.

Results

Results showing points on map

 The output of point features using any of the three methods. Stylized in FME Data Inspector using map tiles by Stamen Design, under CC-BY-3.0. Data by OpenStreetMap, under CC-BY-SA.
