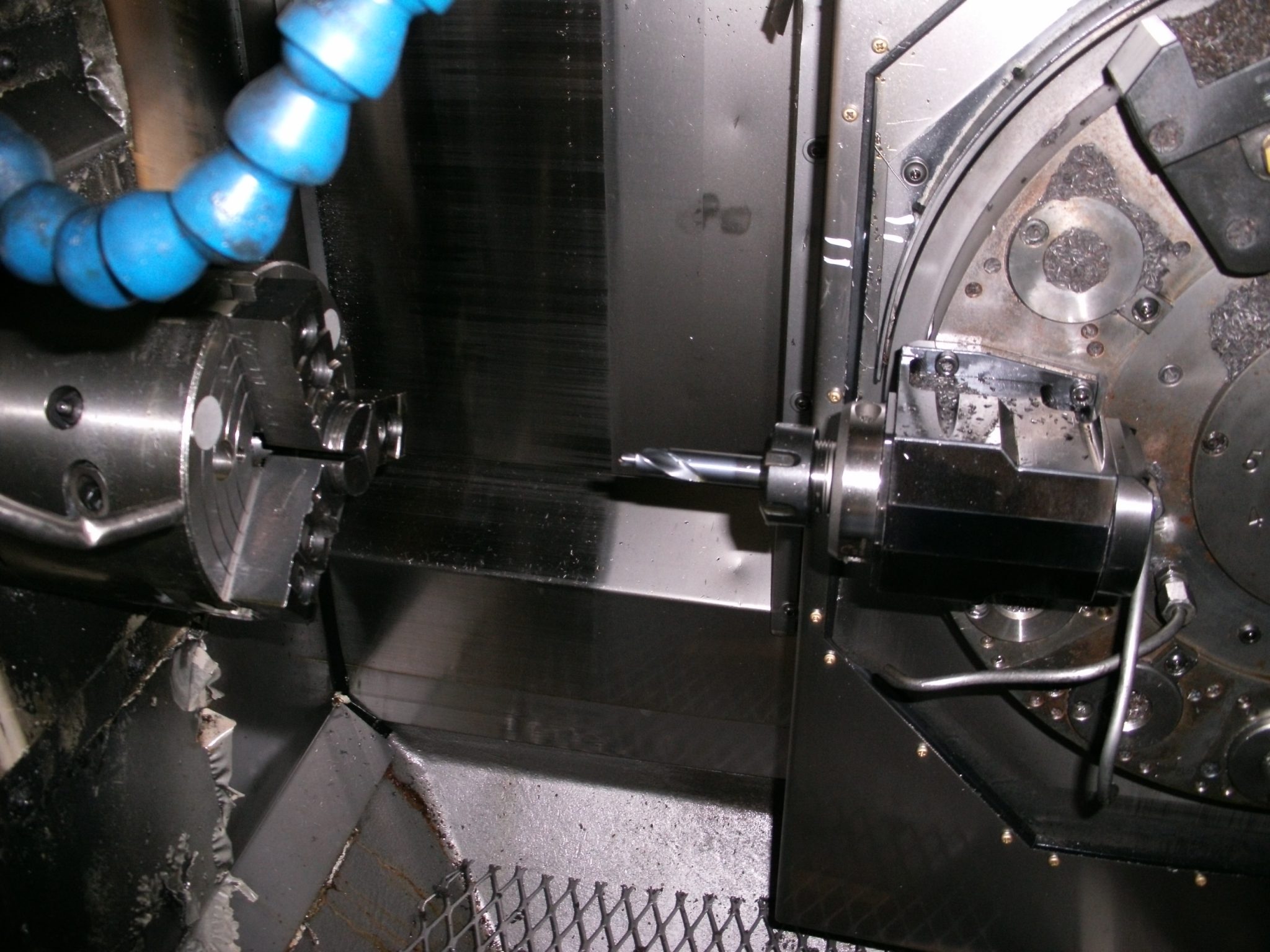

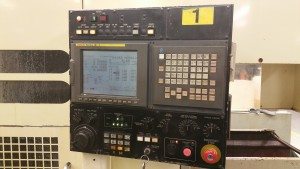

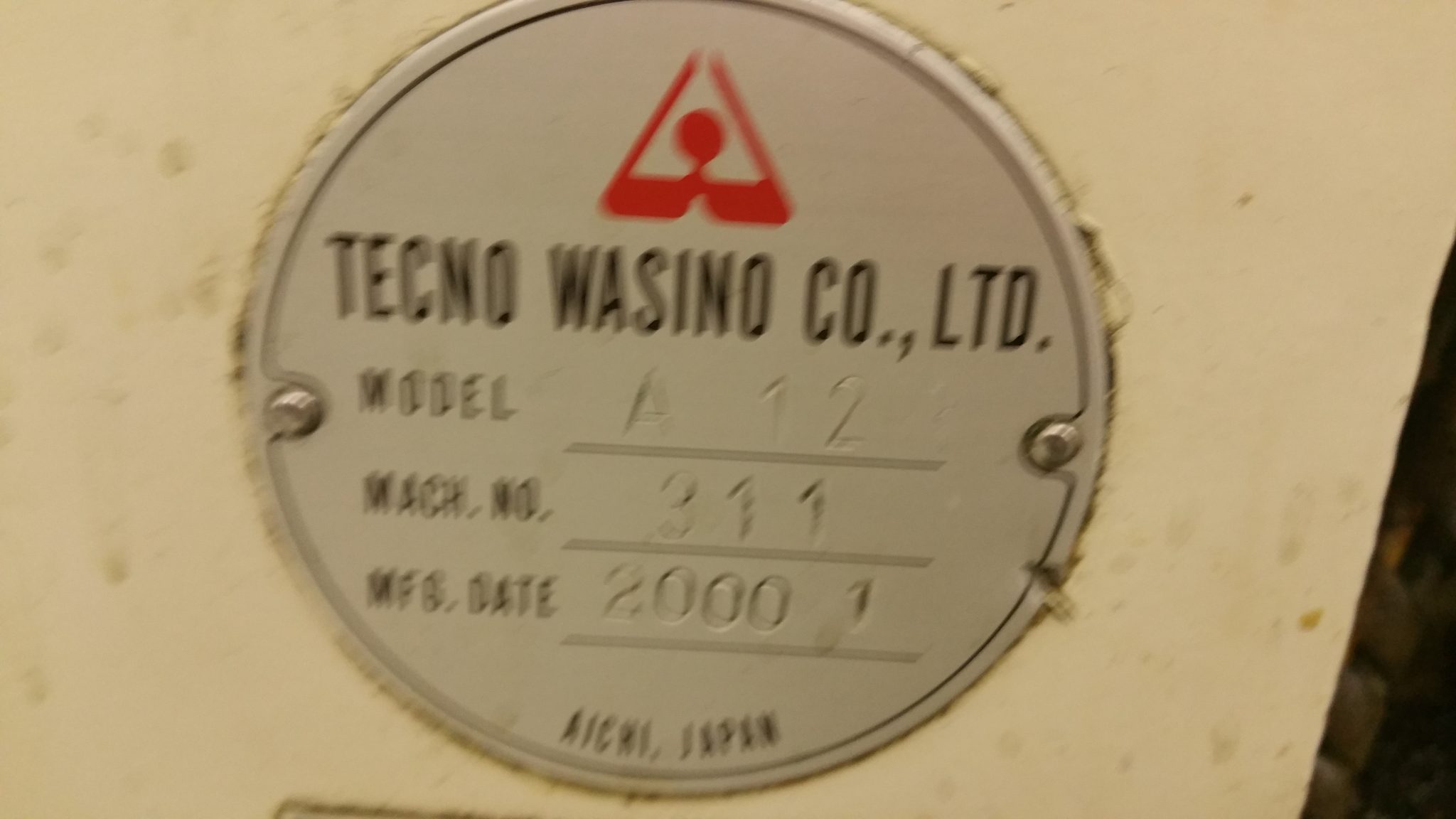

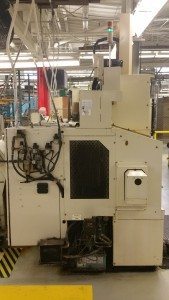

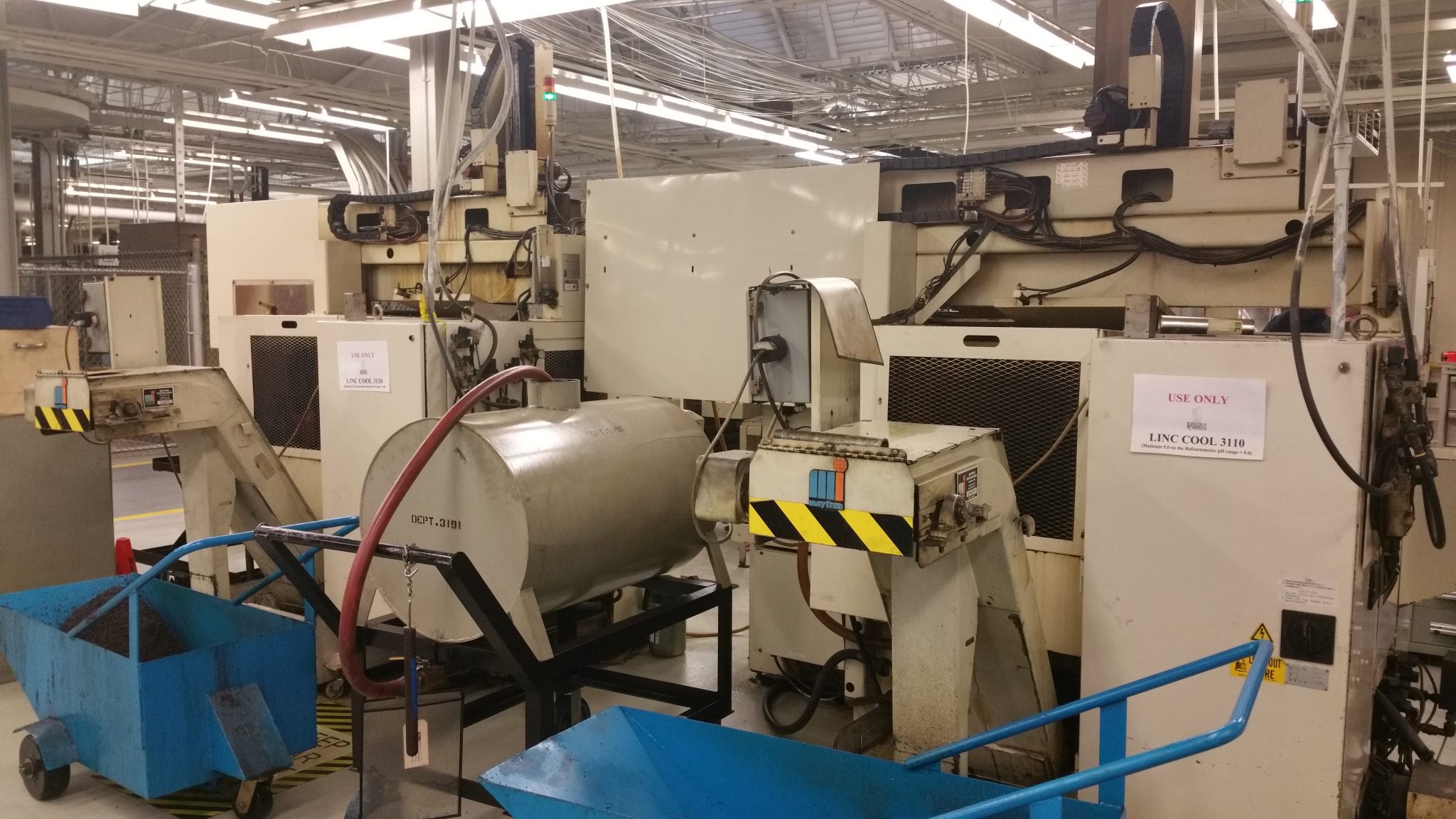

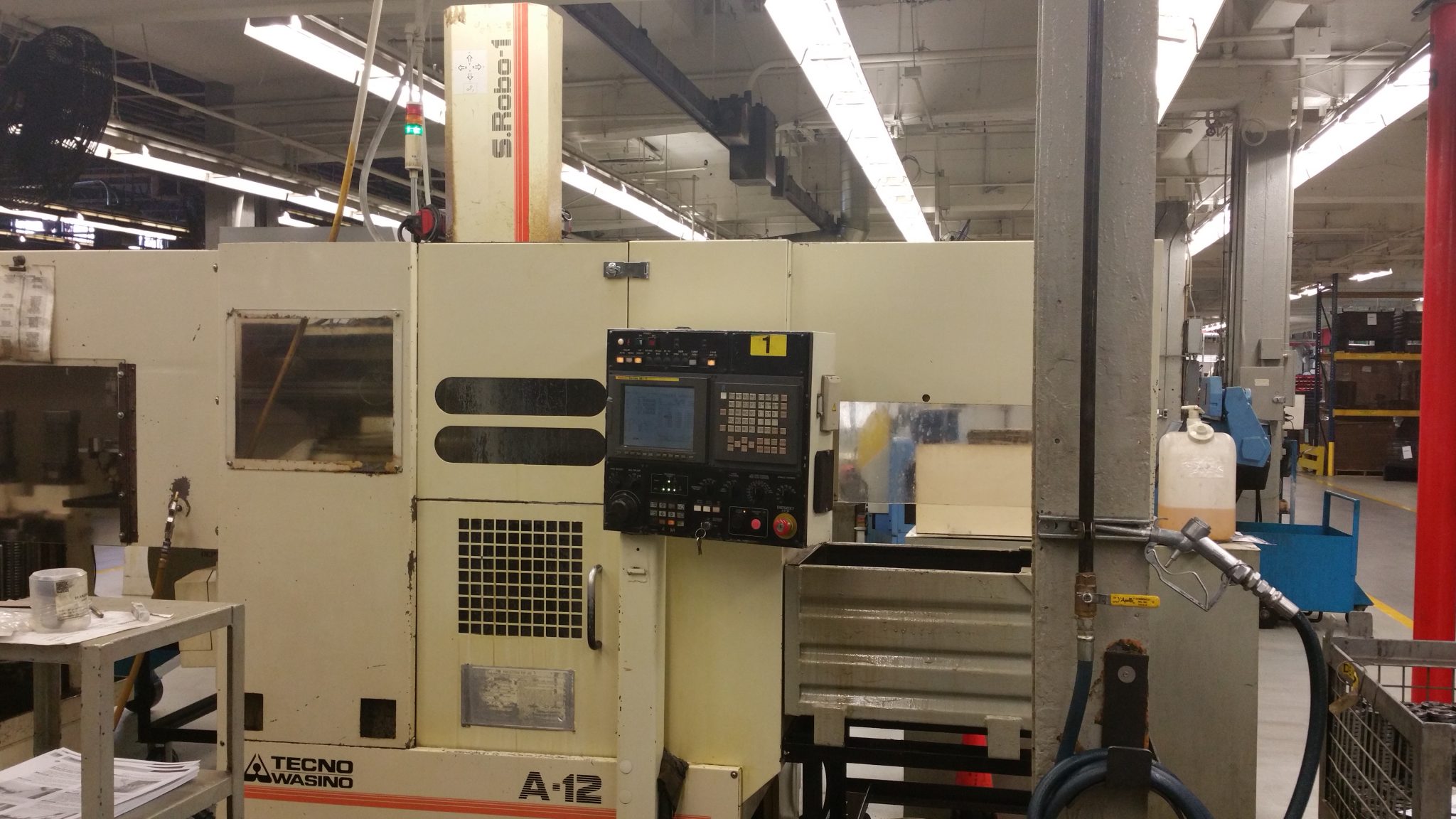

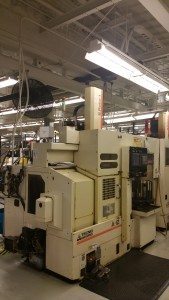

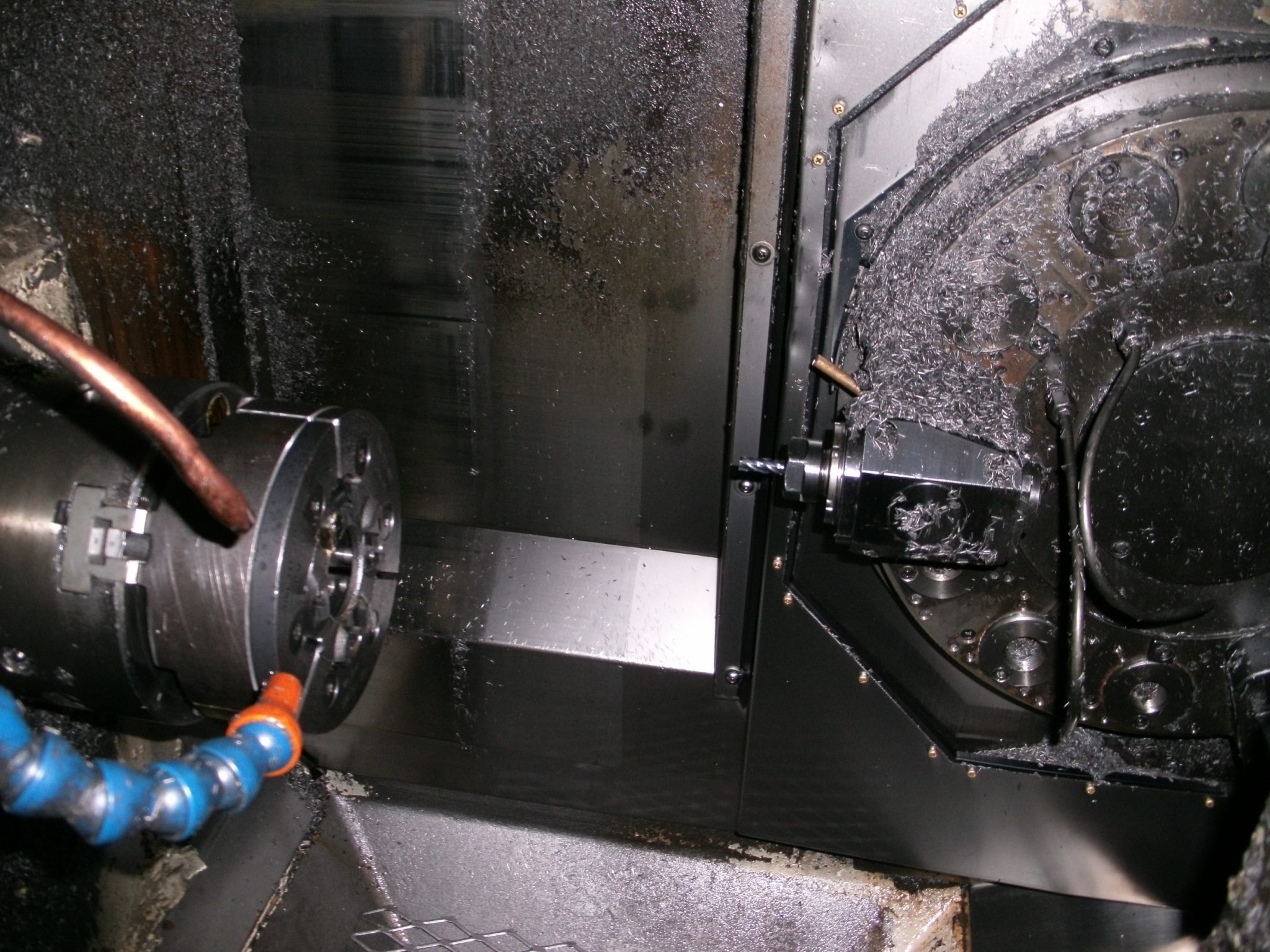

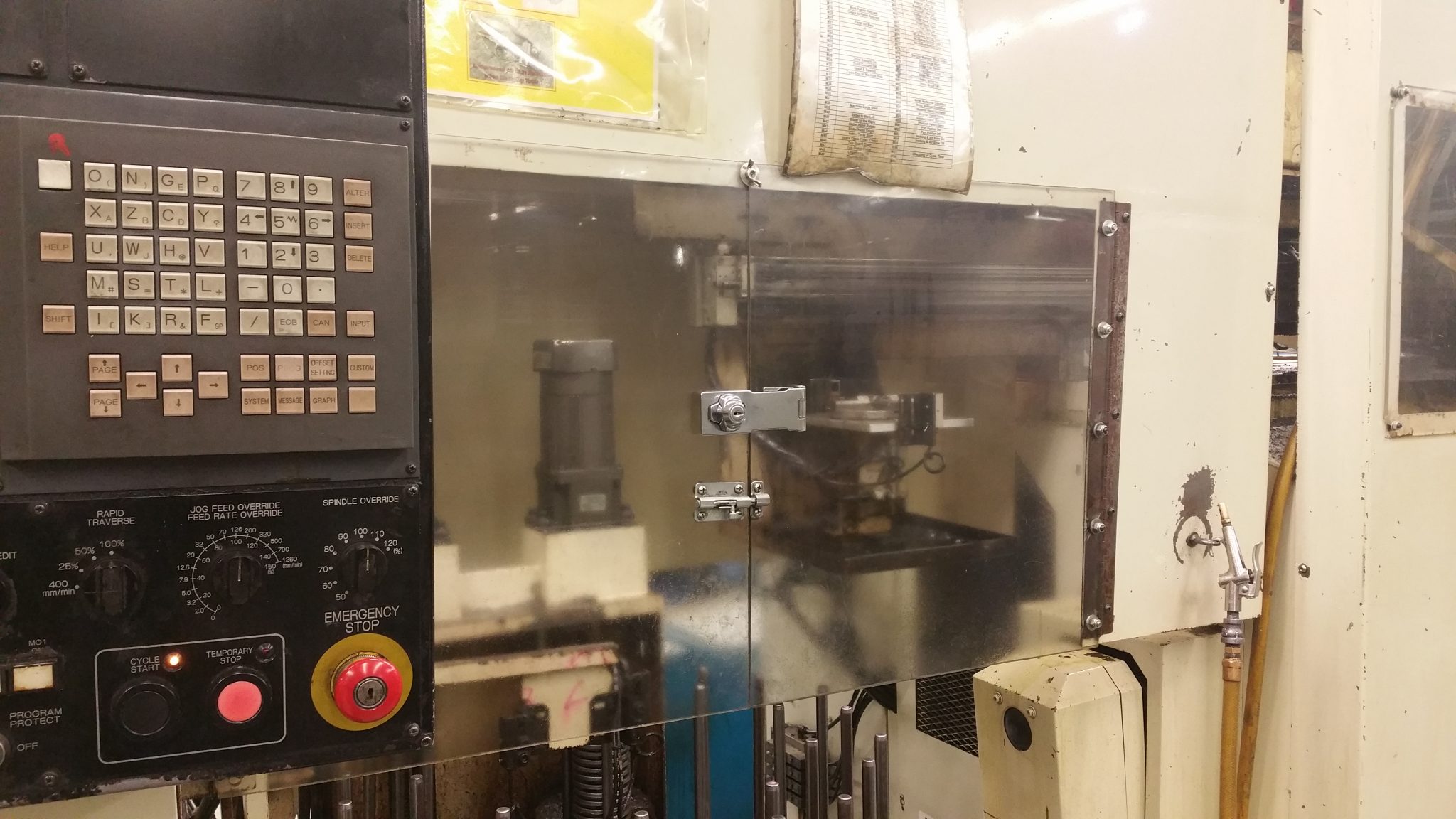

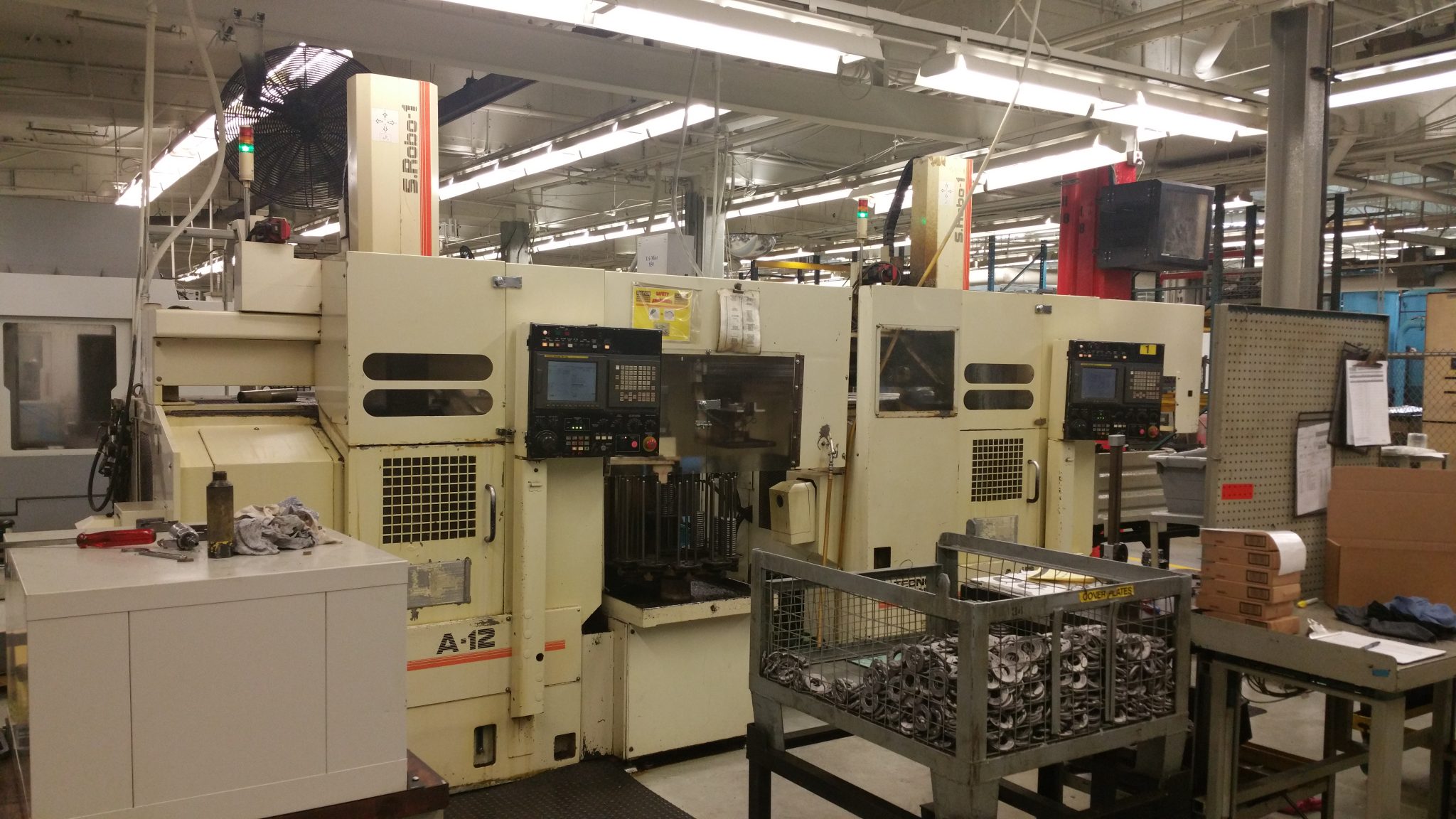

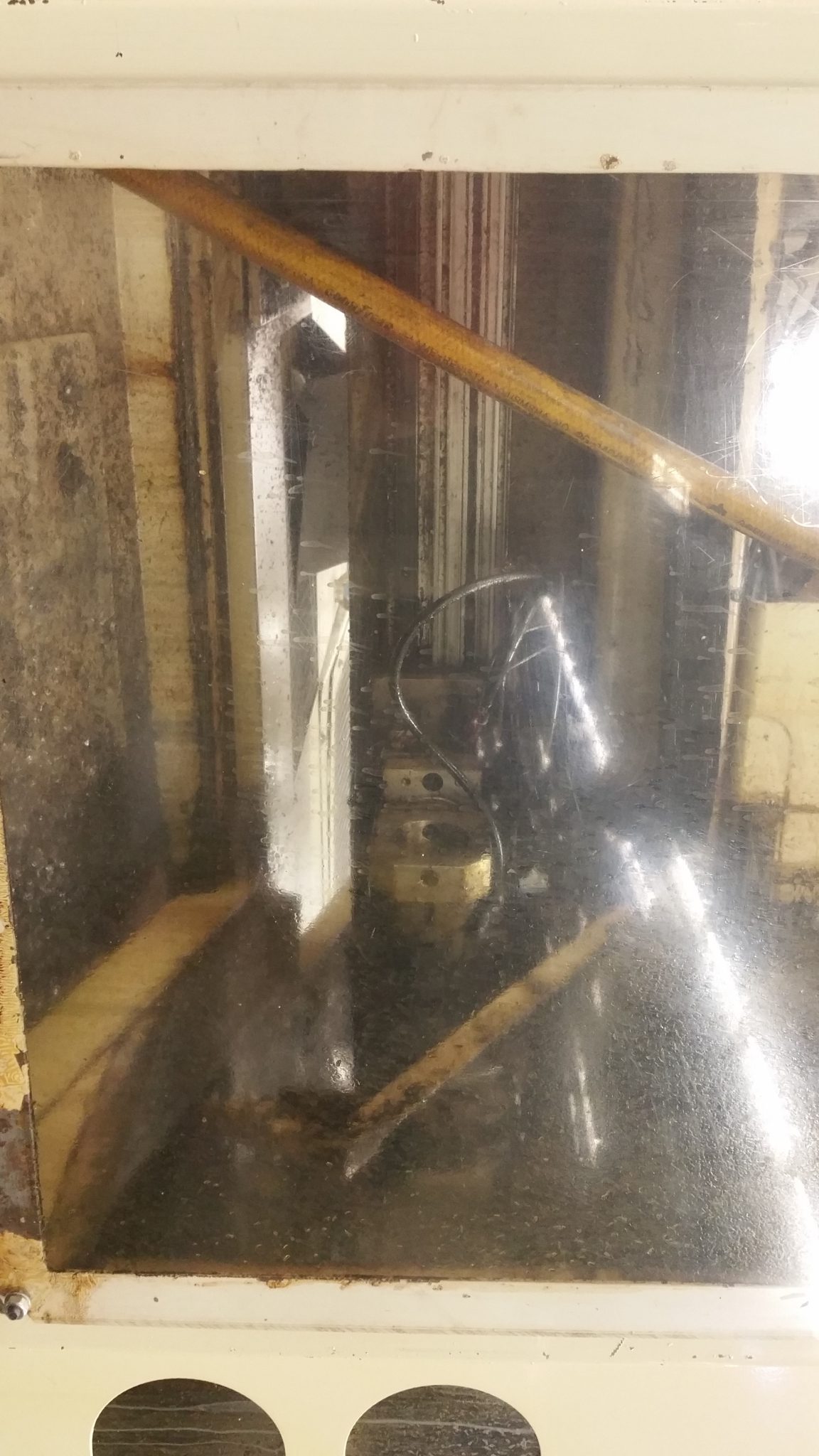

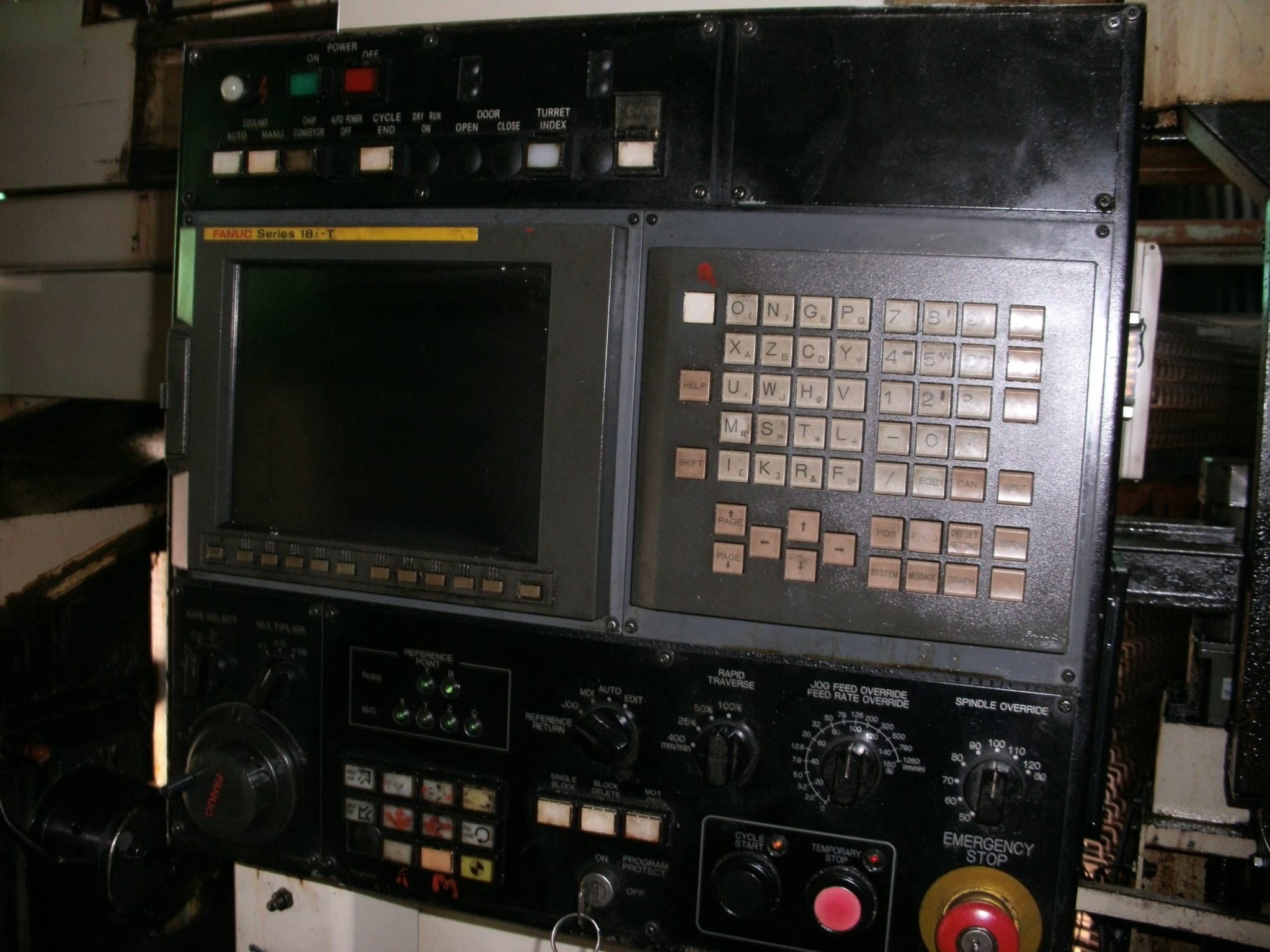

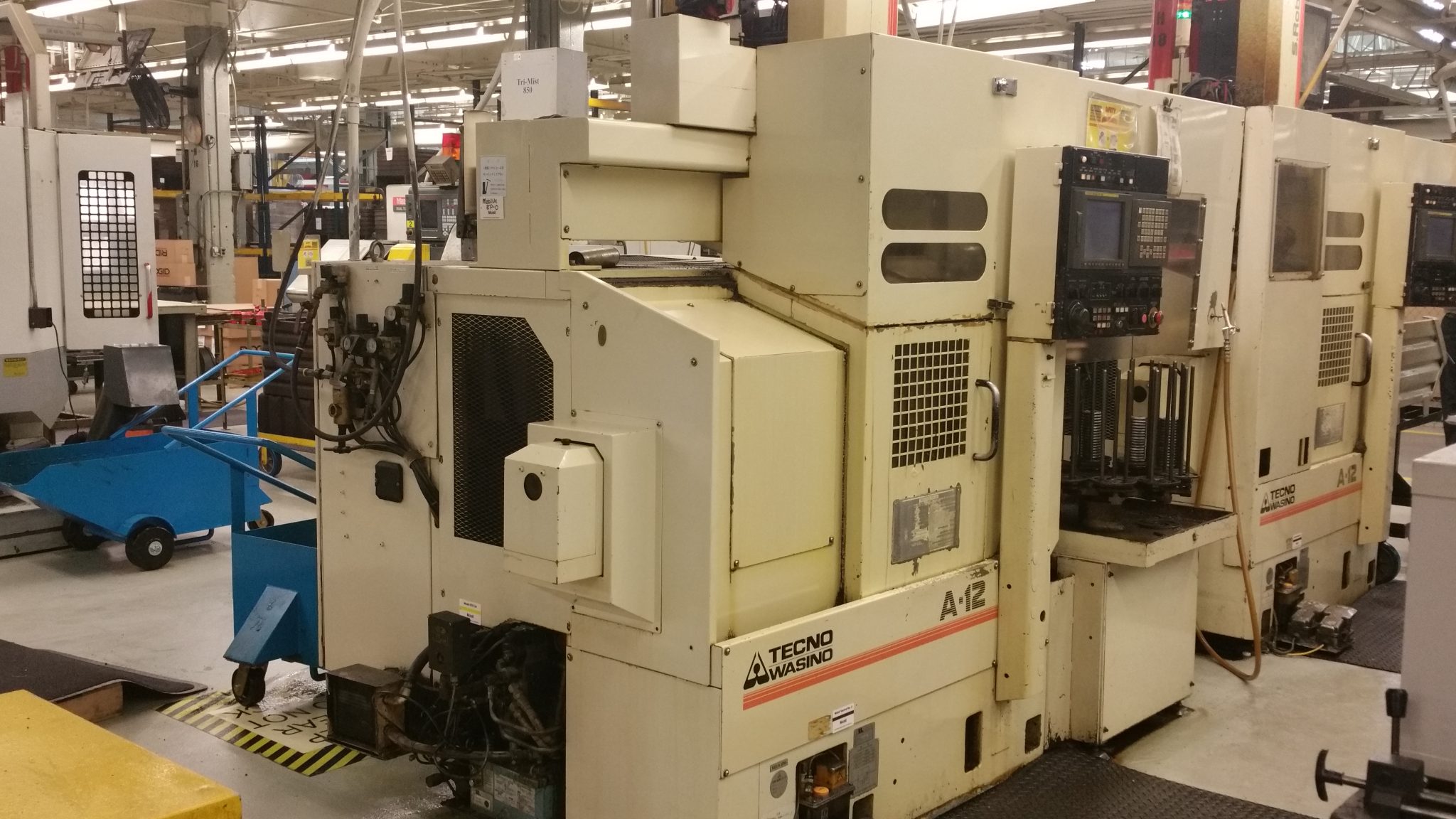

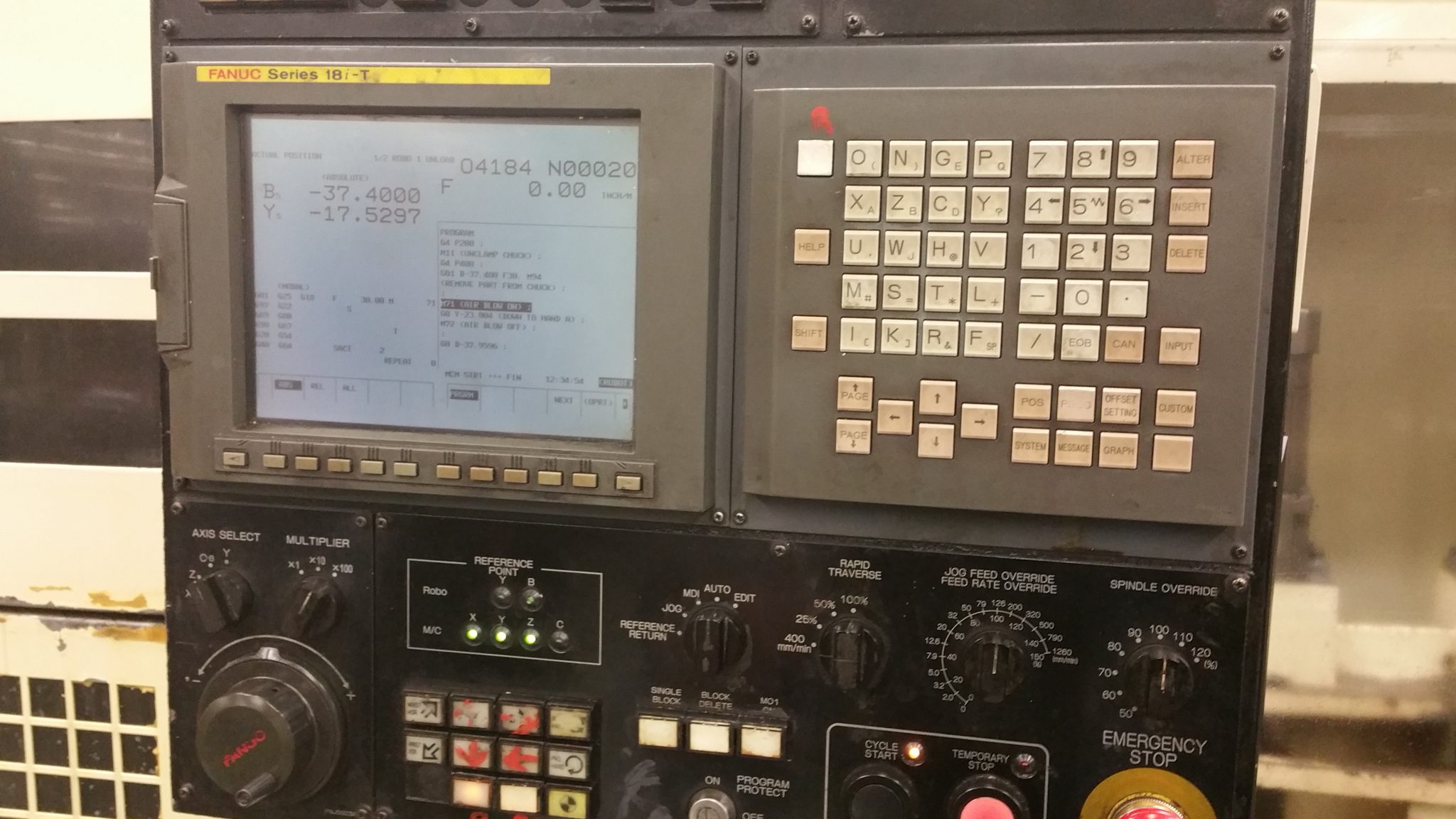

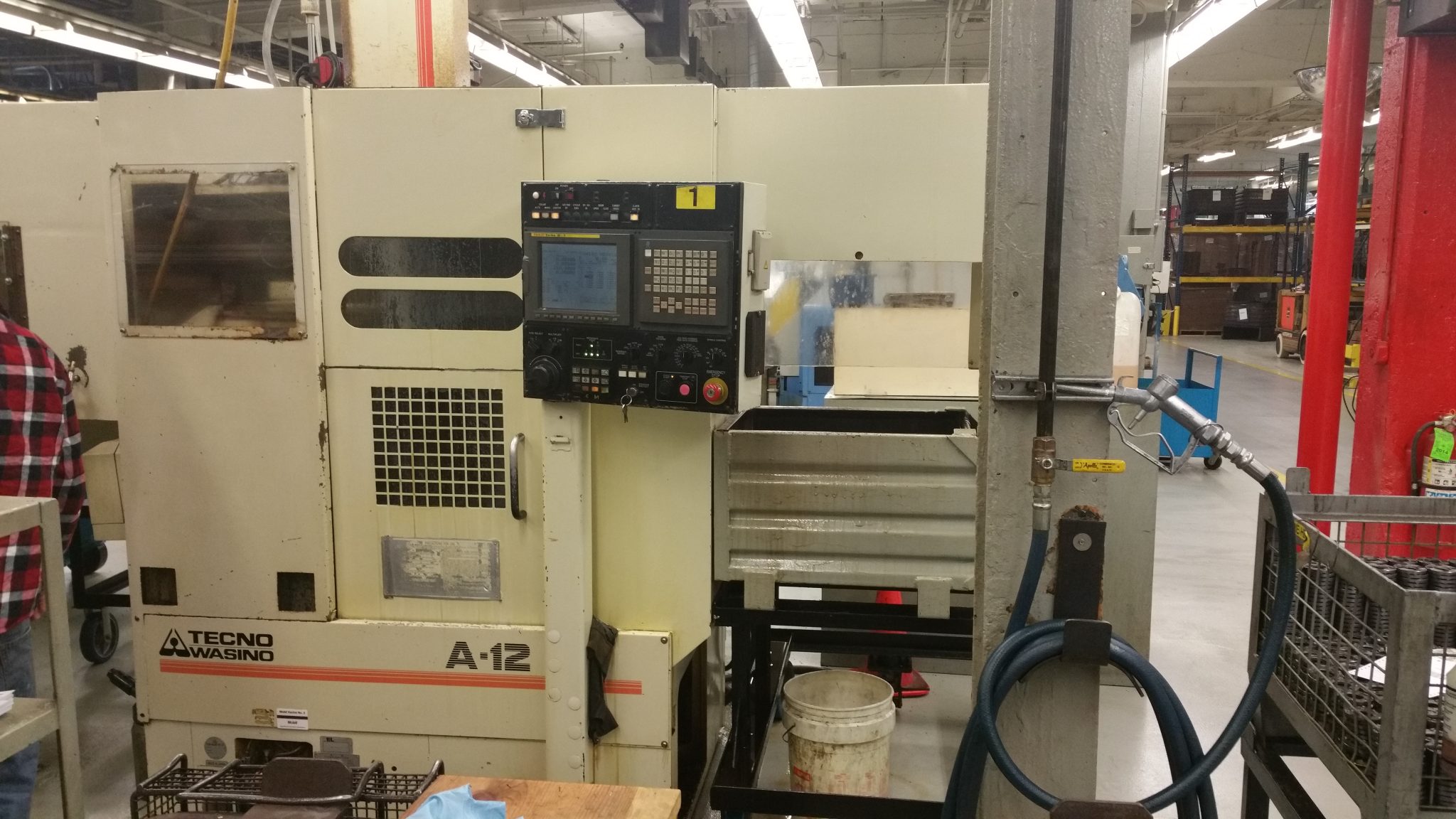

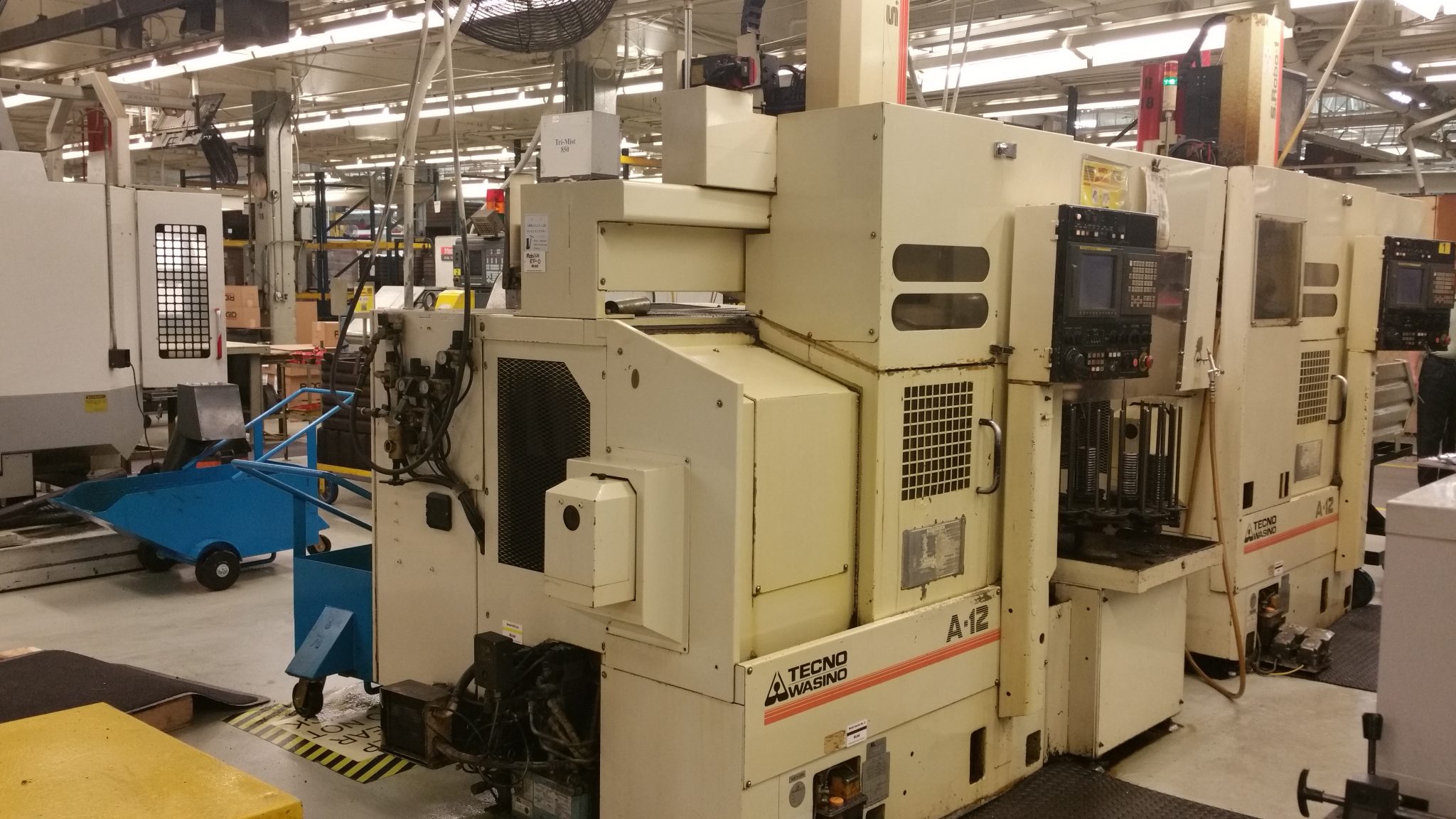

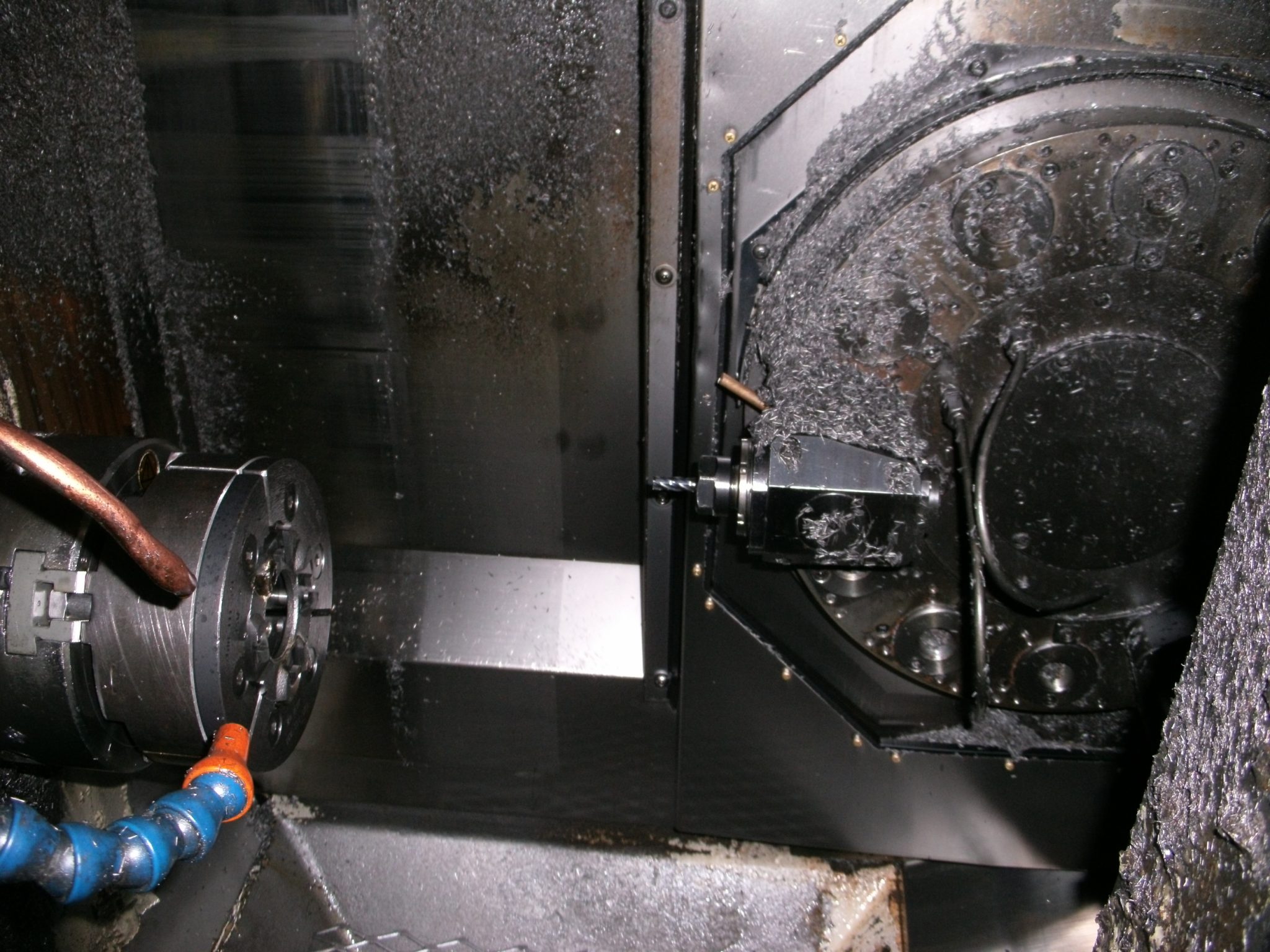

Used Wasino A 12 CNC Lathe Turning Center Mill For Sale

Used Wasino A 12 CNC Lathe Turning Center Mill For Sale

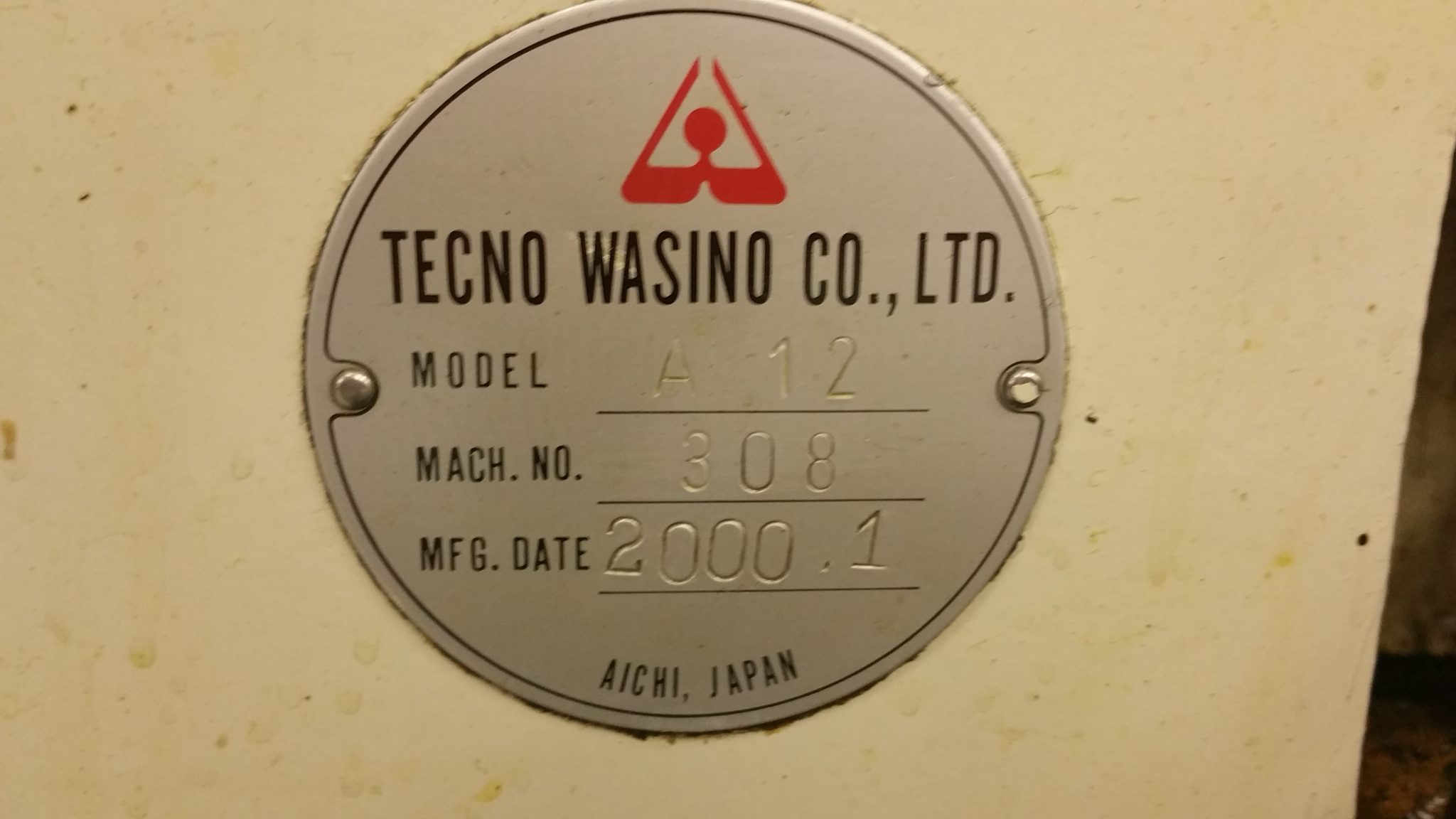

DATE OF MANUFACTURE  2000

  • X AXIS TRAVEL 5.5″
  • Y AXIS TRAVEL 3.9″
  • Z AXIS TRAVEL 9.854″
  • C AXIS MIN INCREMENT 0.001º
  • RAPID TRAVERSE RATE X AXIS 630IPM
  • RAPID TRAVERSE RATE Y AXIS 236IPM
  • RAPID TRAVERSE RATE Z AXIS 787IPM
  • SPINDLE NOSE / SPINDLE BORE A2-6/ 2.12″
  • SPINDLE MOTOR 7.5HP
  • SPINDLE SPEED 4,000RPM

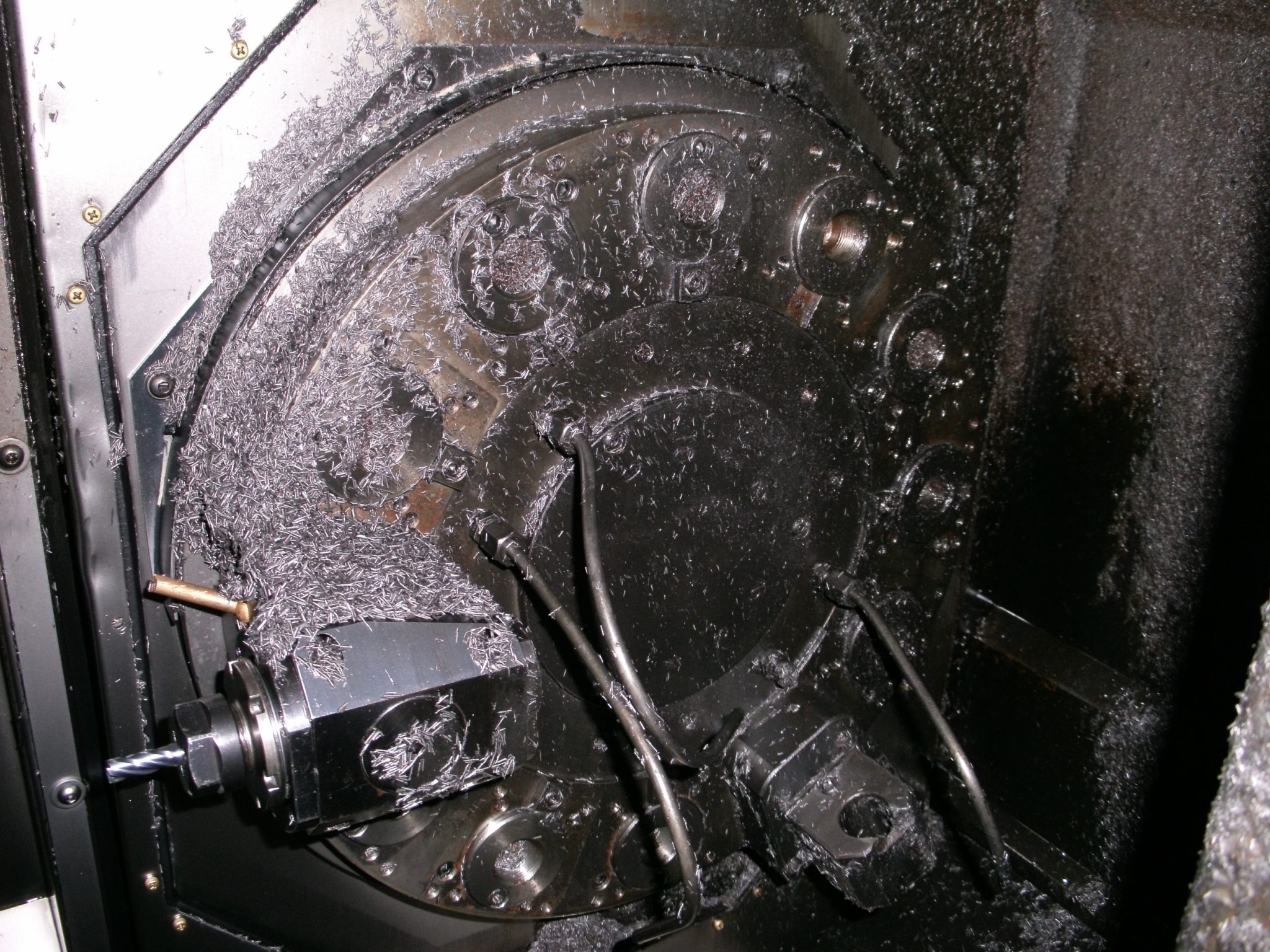

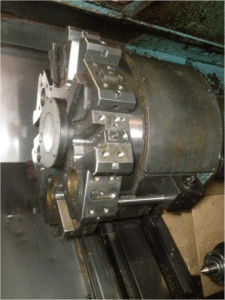

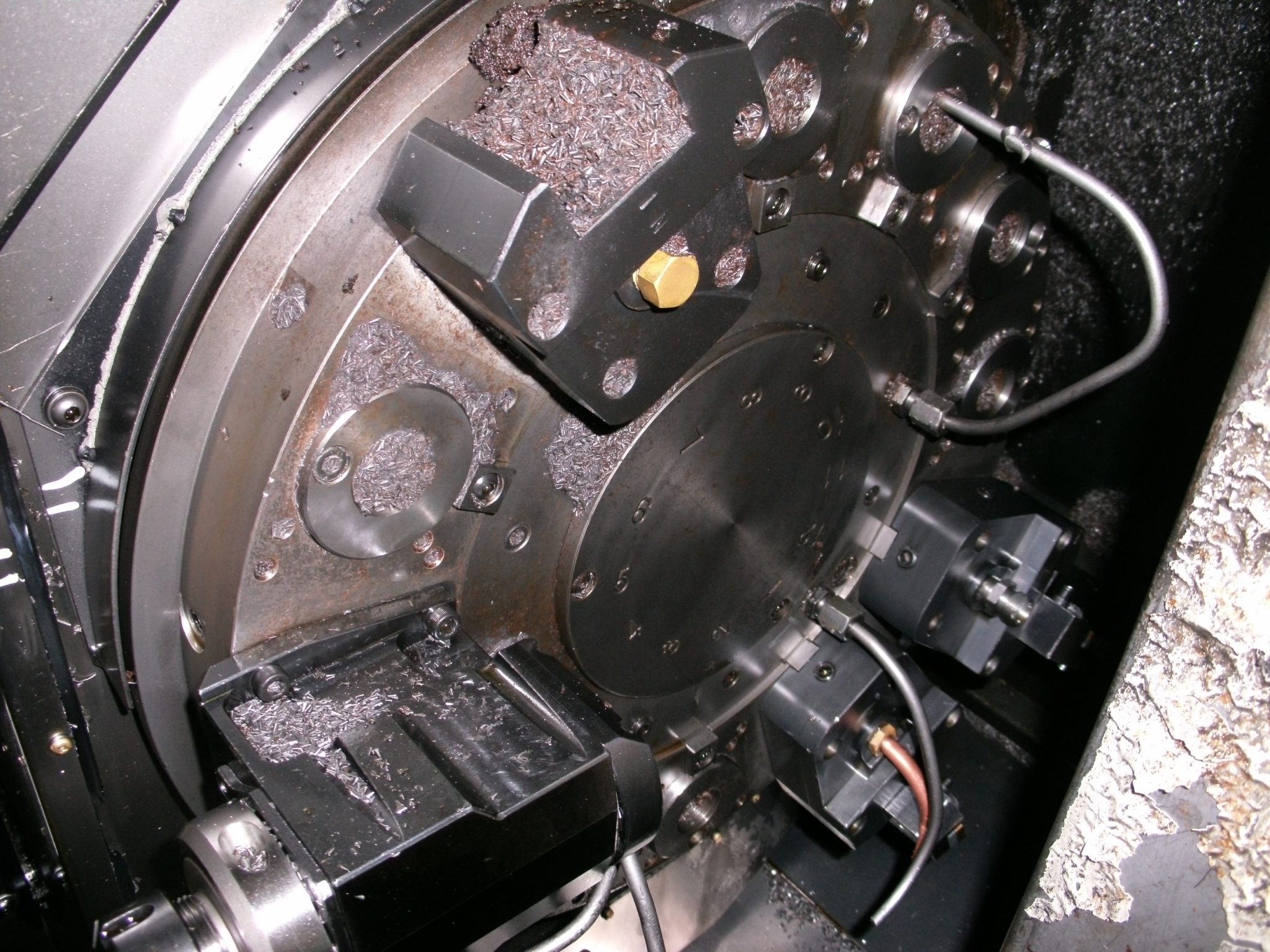

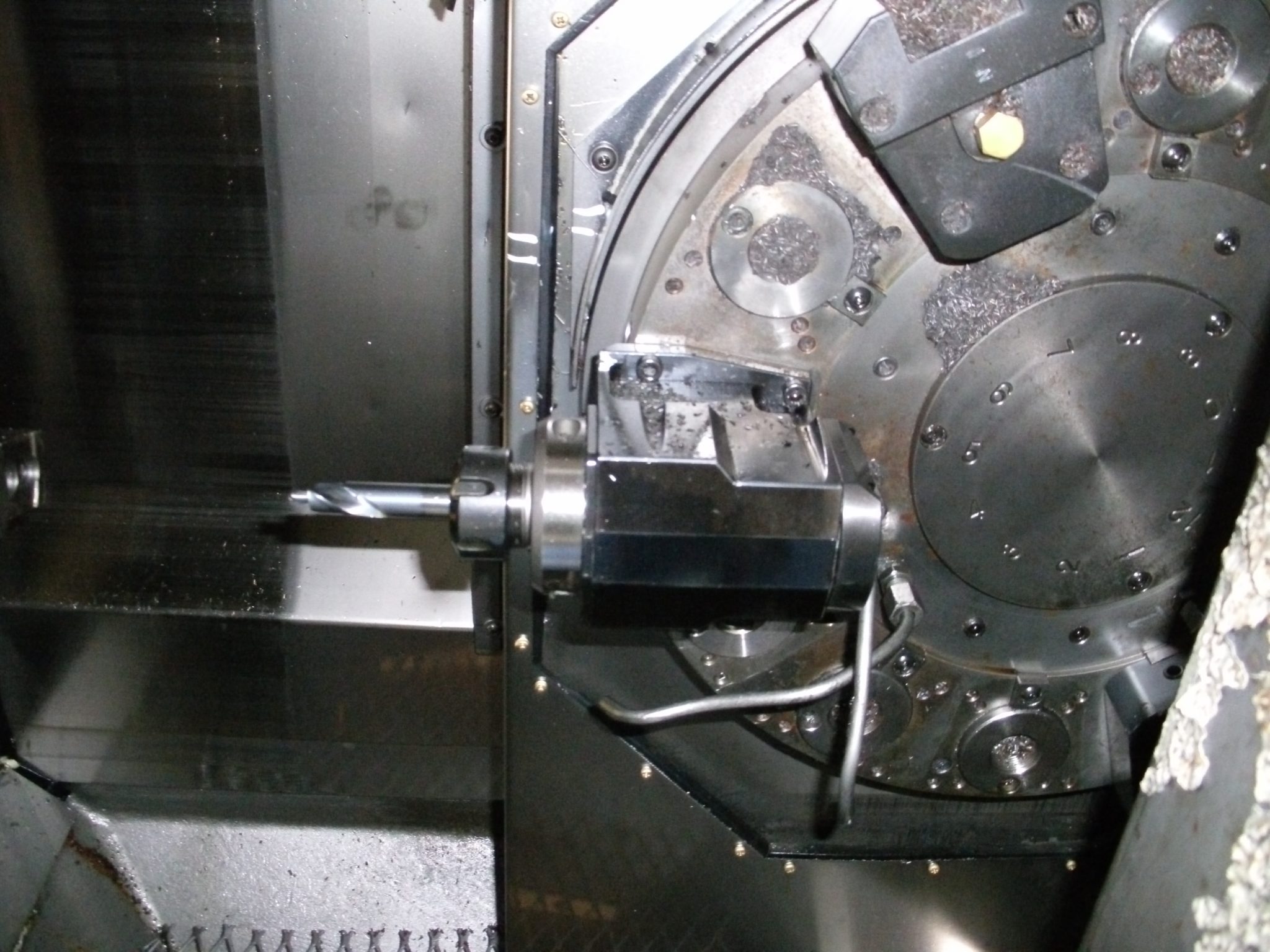

  • TURRET CAPACITY (ALL LIVE CAPABLE) 12 STATIONS
  • RADIAL TOOL MILLING SPEEDS 10000RPM
  • AXIAL TOOL MILLING SPEEDS 5000RPM
  • MILLING SPINDLE MOTOR 5HP

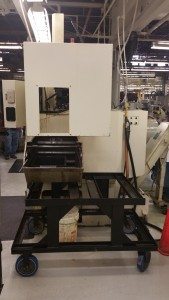

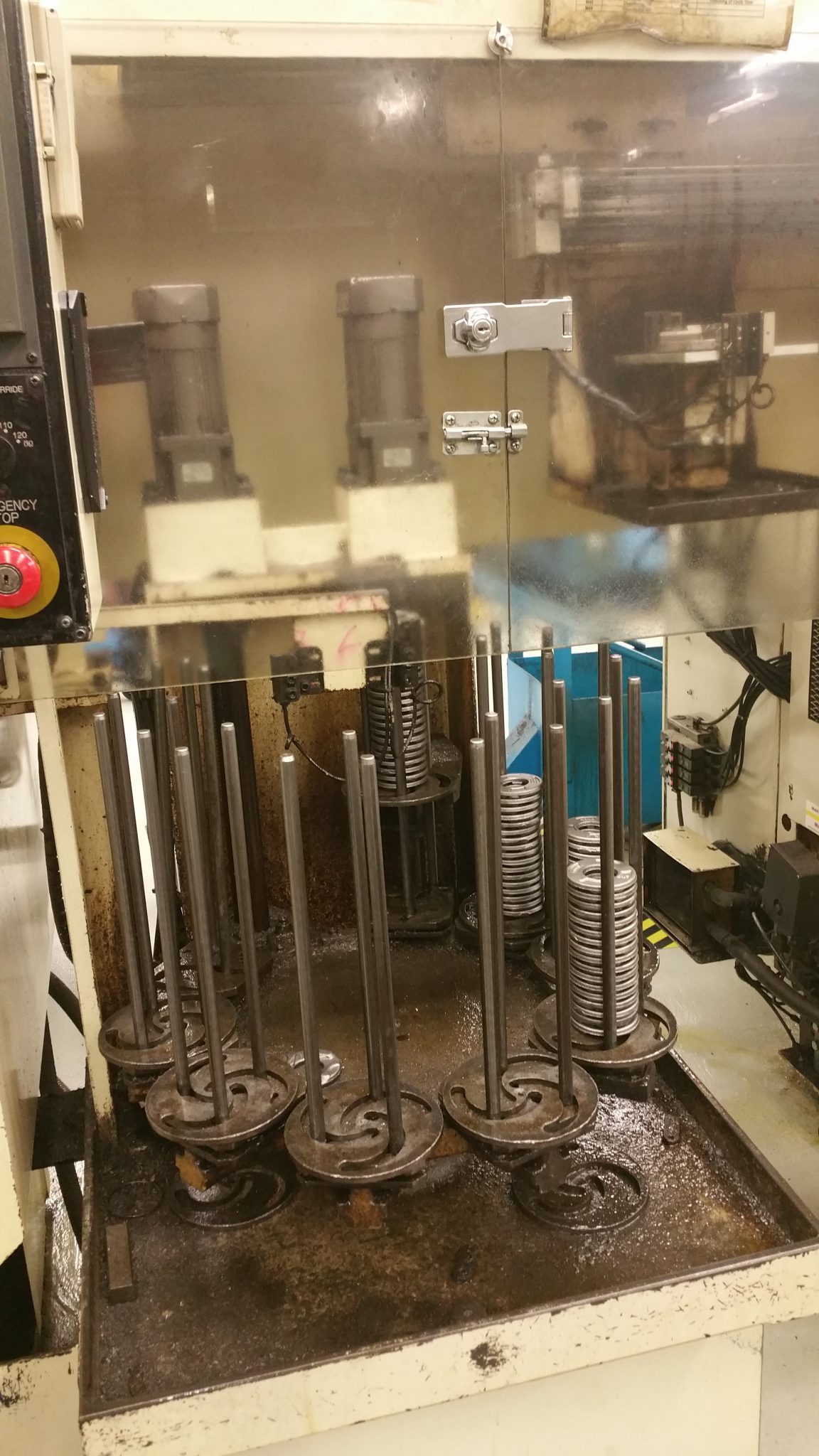

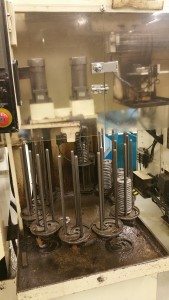

  • ROBOT LOADER SYSTEM
  • IDEAL WORK DIAMETER 6.0″
  • IDEAL WORK WEIGHT 6.6 LBS
  • APPROX LOAD/UNLOAD TIME 6.0 SECONDS
  • MACHINE WEIGHT (APPROX) 5500LBS

I’m a Rigger – Keep me upto date on available equipment!

I’m a Manufacture – Click Here For Updates on Machines & Equipment
These specifications are to the best of our knowledge. You may wish to double check with the factory or physical inspection.

Used Wasino A-12 CNC Lathe Turning Center Mill For Sale – Two available from Affordable Machinery on Vimeo.

Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale Used Wasino A 12 CNC for sale

Wasino A12 CNC Lathe For Sale Wasino A12 CNC Lathe For Sale Wasino A12 CNC Lathe For Sale Wasino A12 CNC Lathe For Sale Wasino A12 CNC Lathe For Salev Wasino A12 CNC Lathe For Sale Wasino A12 CNC Lathe For Sale Wasino A12 CNC Lathe For Sale

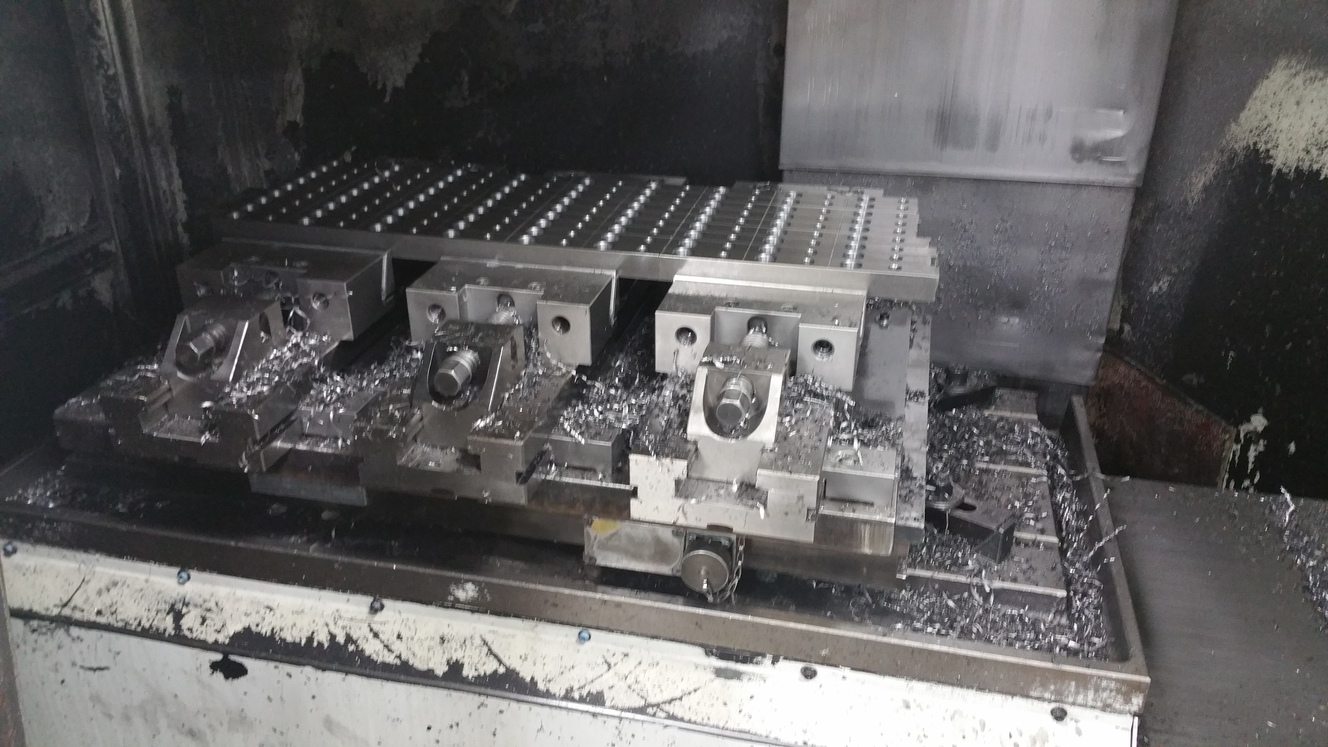

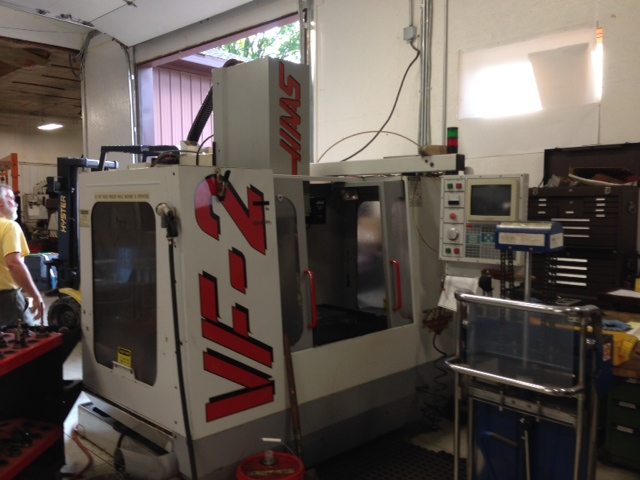

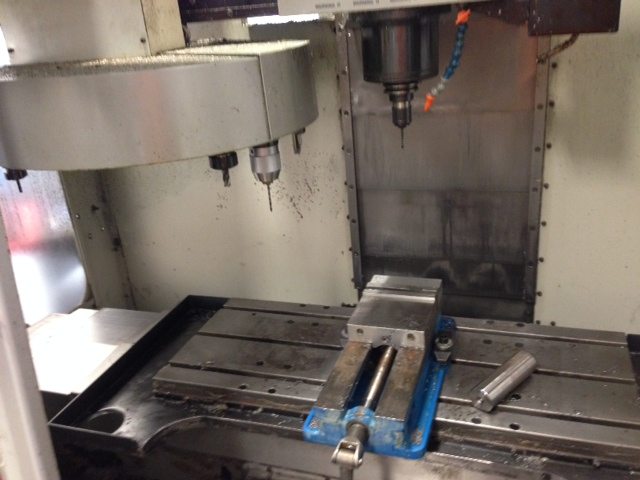

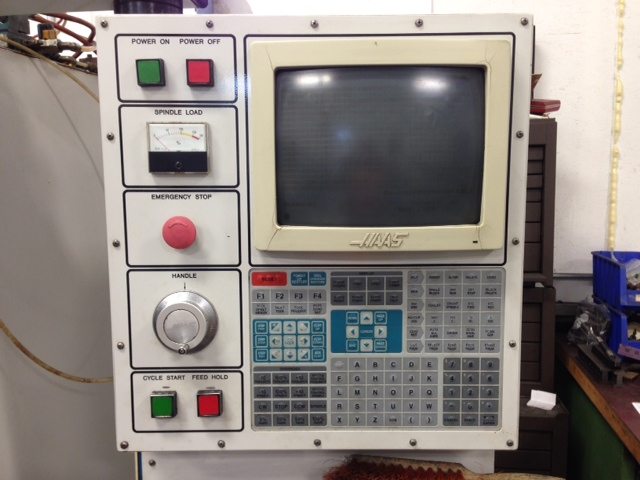

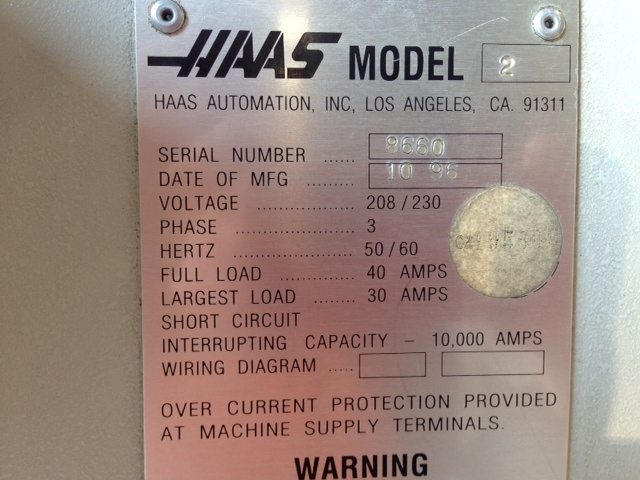

Haas VMC CNC Milling Machine VF-2

Haas VMC CNC Milling Machine VF-2

  • Year 1998
  • Voltage 208/230
  • Phase 3
  • Hertz 50/60
  • Travels: X 30″, Y 16″, Z 20″
  • Spindle Motor 20HP
  • Spindle Speed 7,500 RPM
  • Spindle Nose to Table Top 4″ to 24″
  • Spindle Taper CAT 40
  • Tool Changer 20
  • Machine Weight 8,000

Click Here For Updates on Machines & Equipment As They Become Available

The above specifications are to the best of our knowledge based on our research.  You may wish to confirm them with the factory.

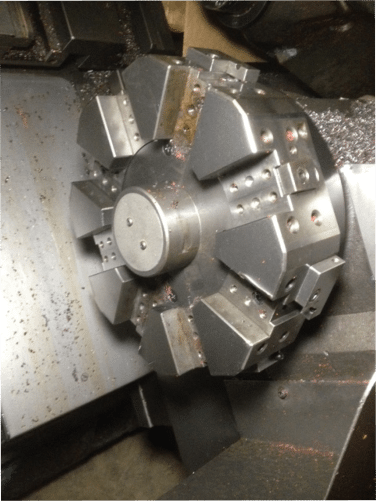

photo 1 photo 2 photo 3 photo 4

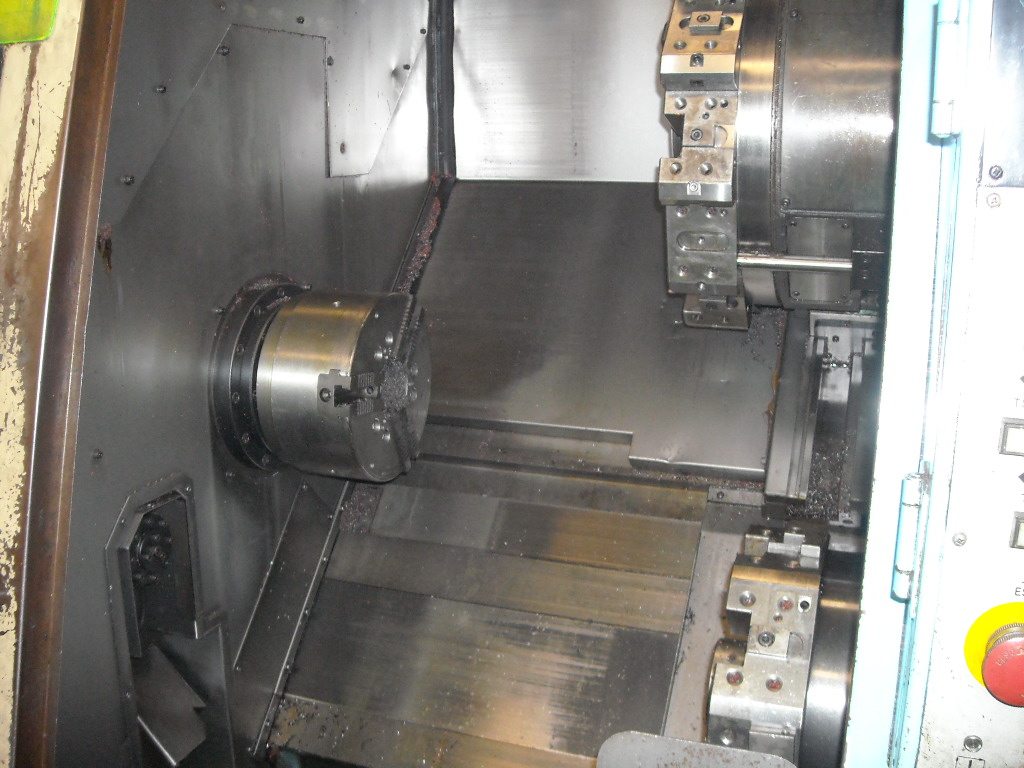

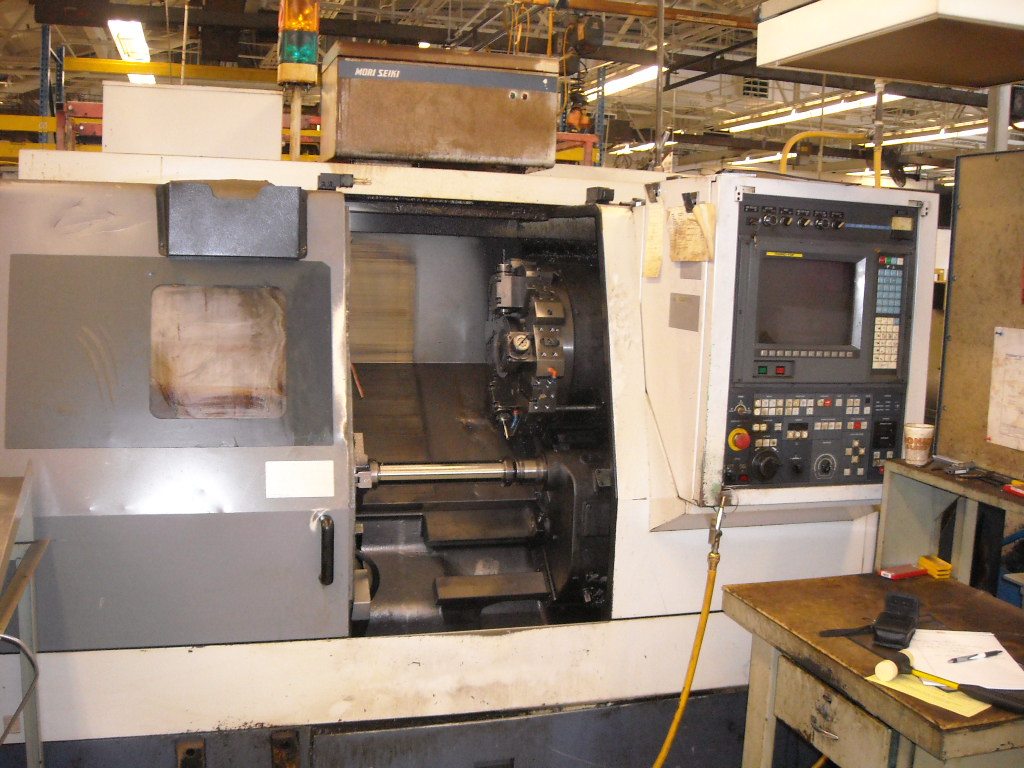

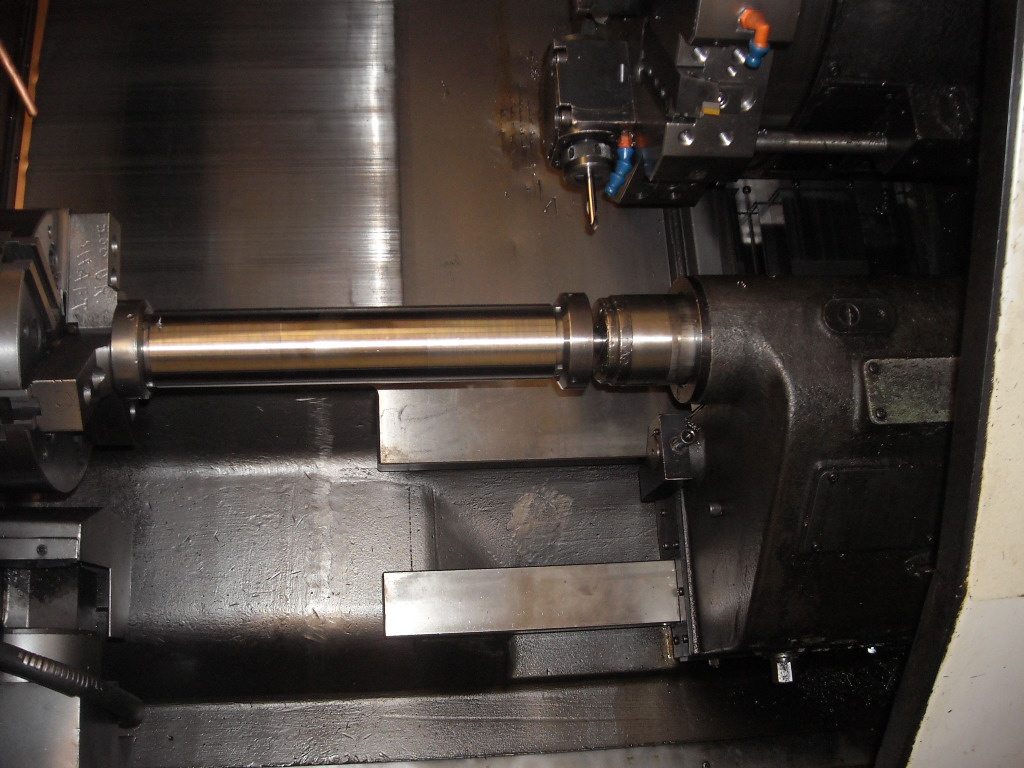

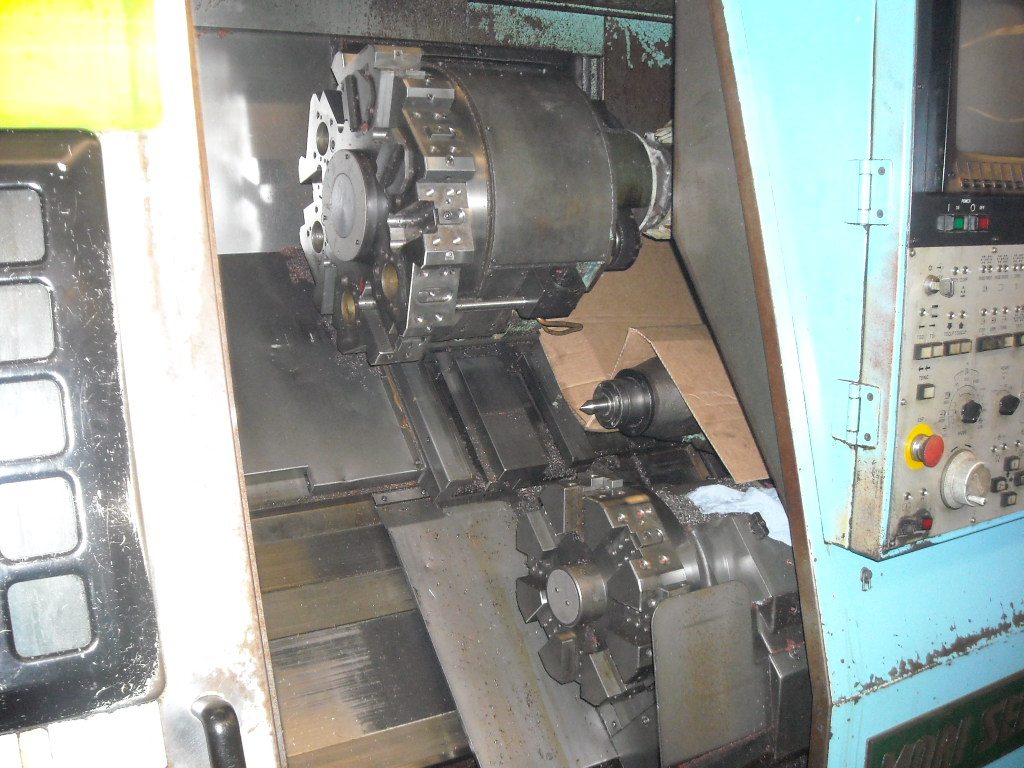

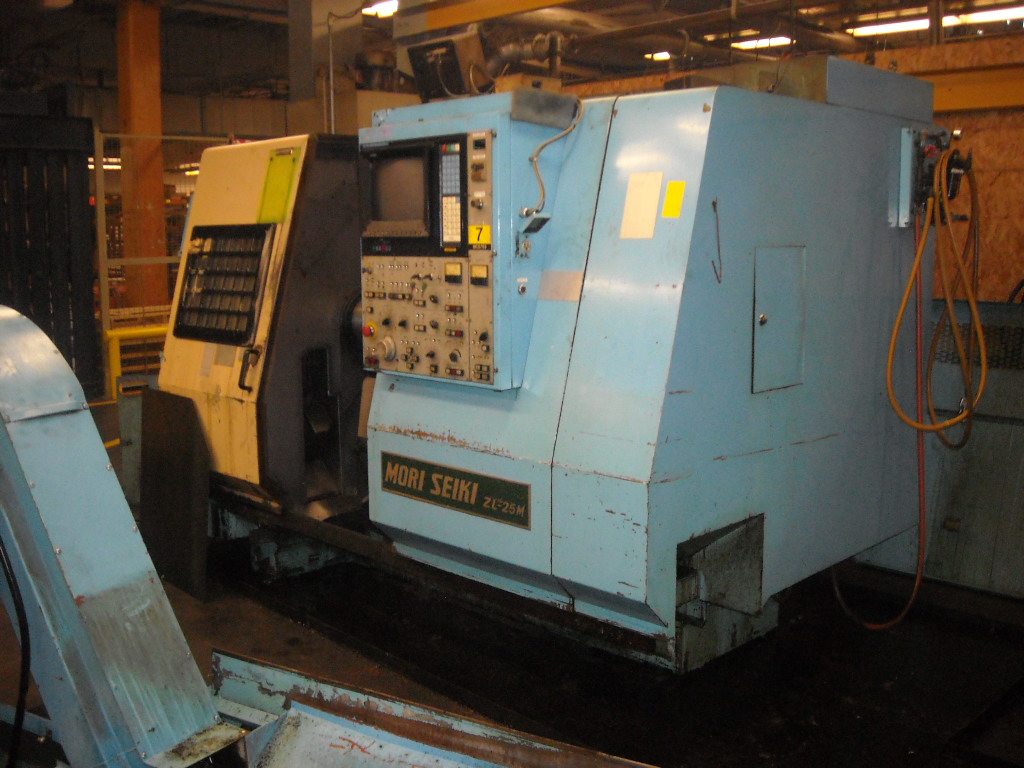

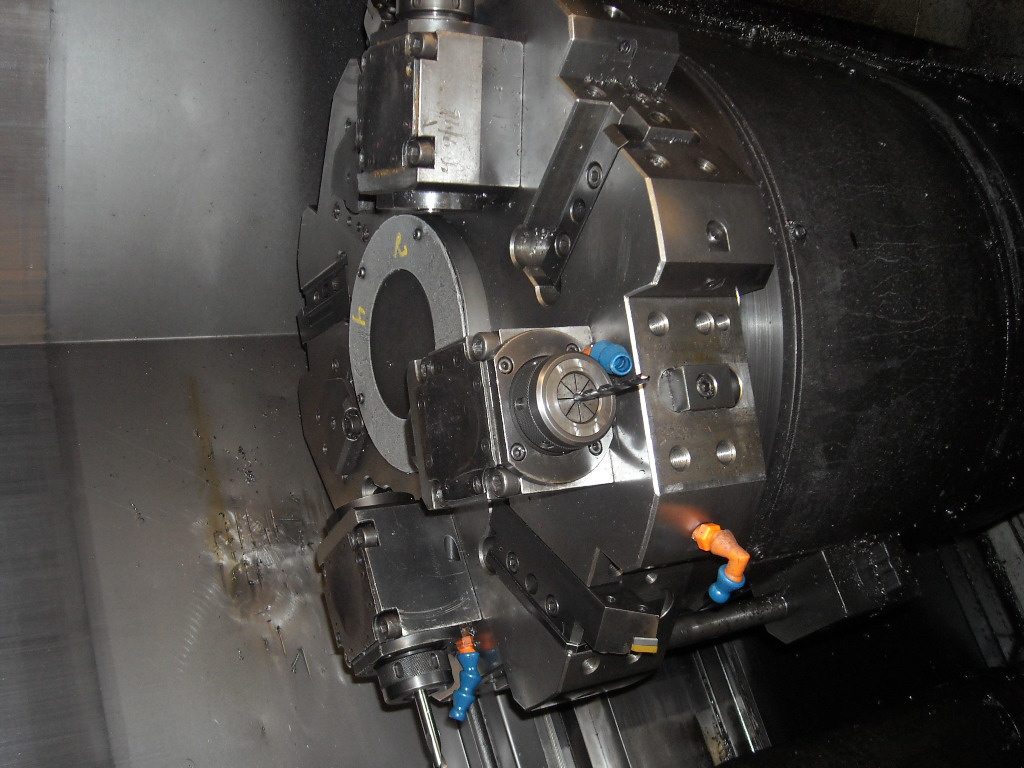

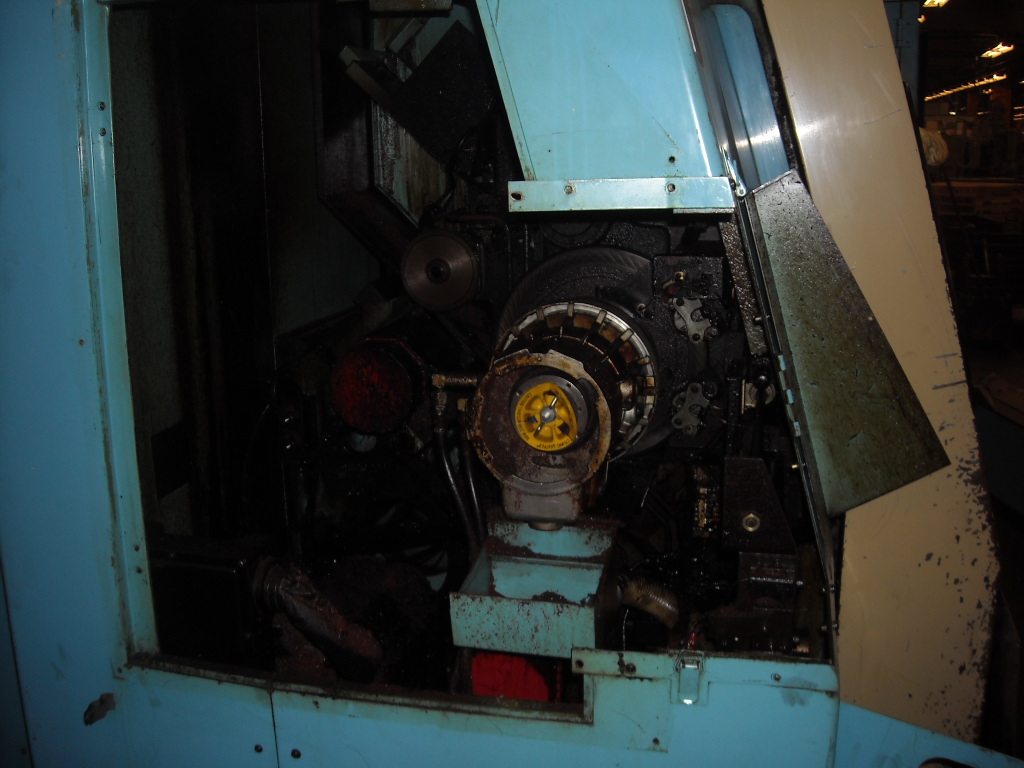

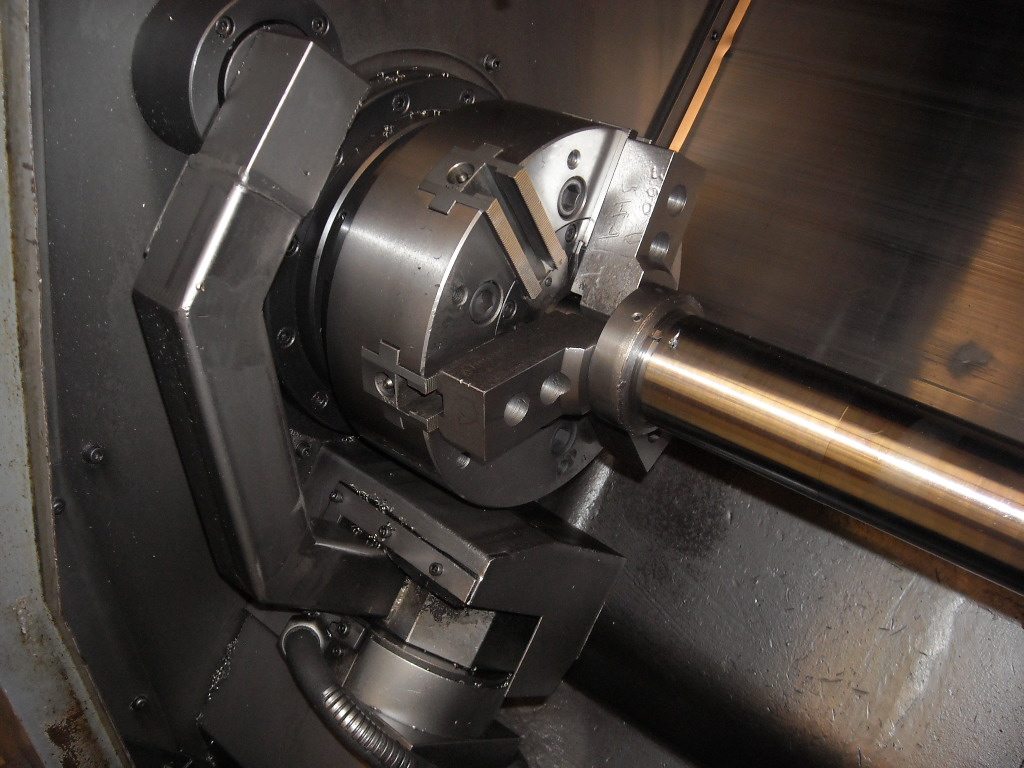

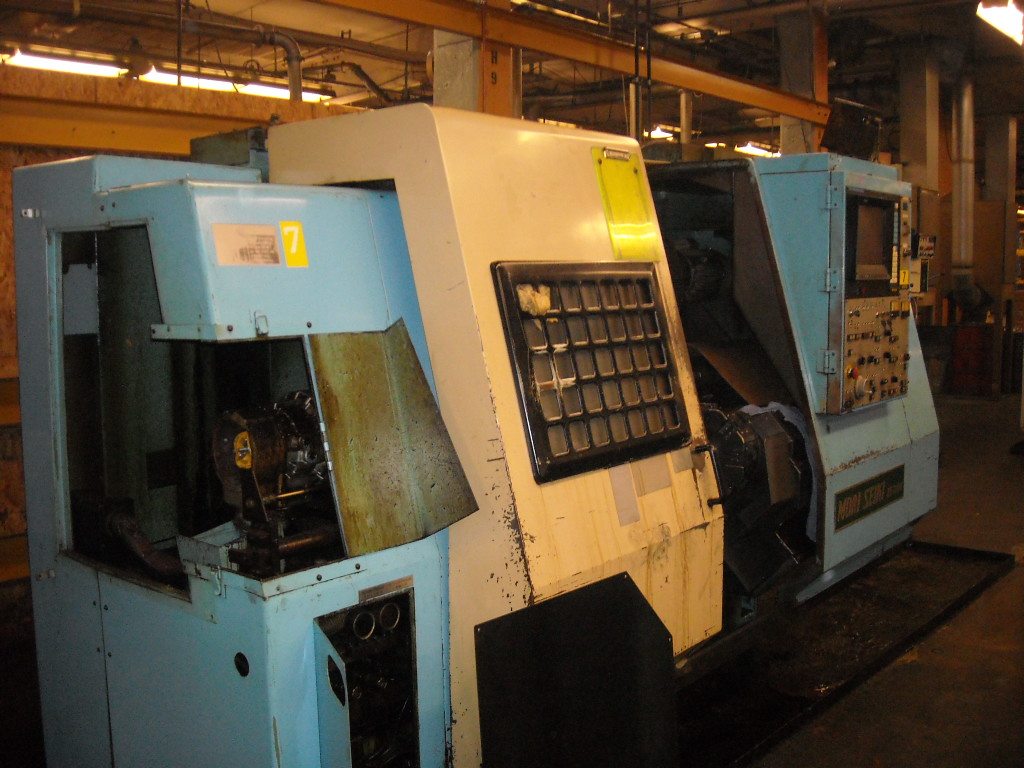

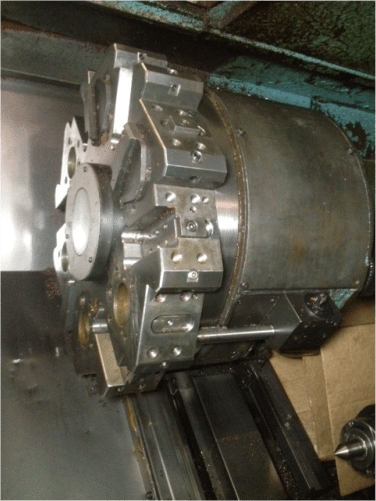

Mori Seiki ZL-25MC/500 Dual Turret CNC Lathe Turning Center

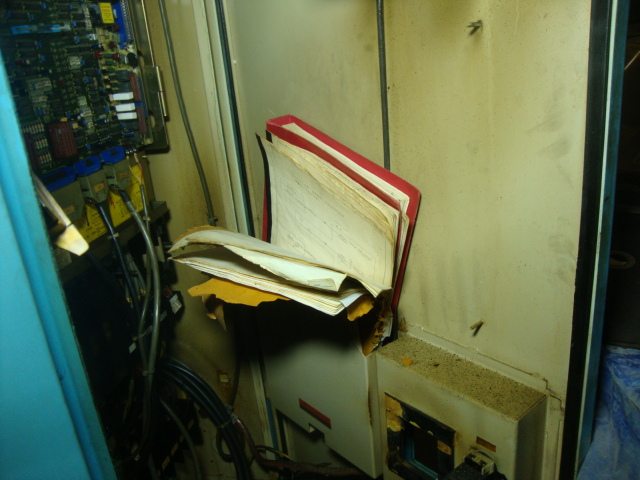

We bought this from a manufacture we work with regularly.  It was used in regular production, however the electronics will need to be serviced.  An electrical board in the cabinet broke off in shipping to our warehouse.  The specs below are to the best of my knowledge and you may want to double check them.

Mori Seiki CNC Lathe Turning Center – Dual Turret
Year 1988
Between Centers 19.6″
Swing over cross slide 13.8″
Spindle Speed 35-3,500RPM
Hole Through Spindle: 3.1″
Bar Capacity 2.5″
No. of Tools: Upper 12, Lower 8
Spindle: A2-6
Horsepower (30 Min.): 30HP
Dia. of Quill in Tailstock: 3.3″
Tailstock Quill Taper #3MT
Equiped with:

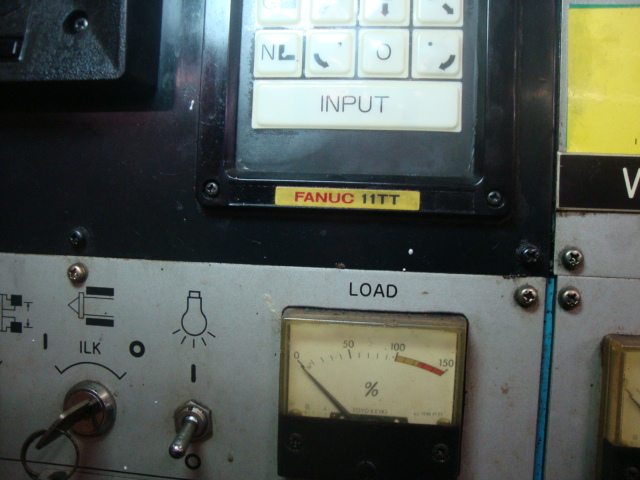

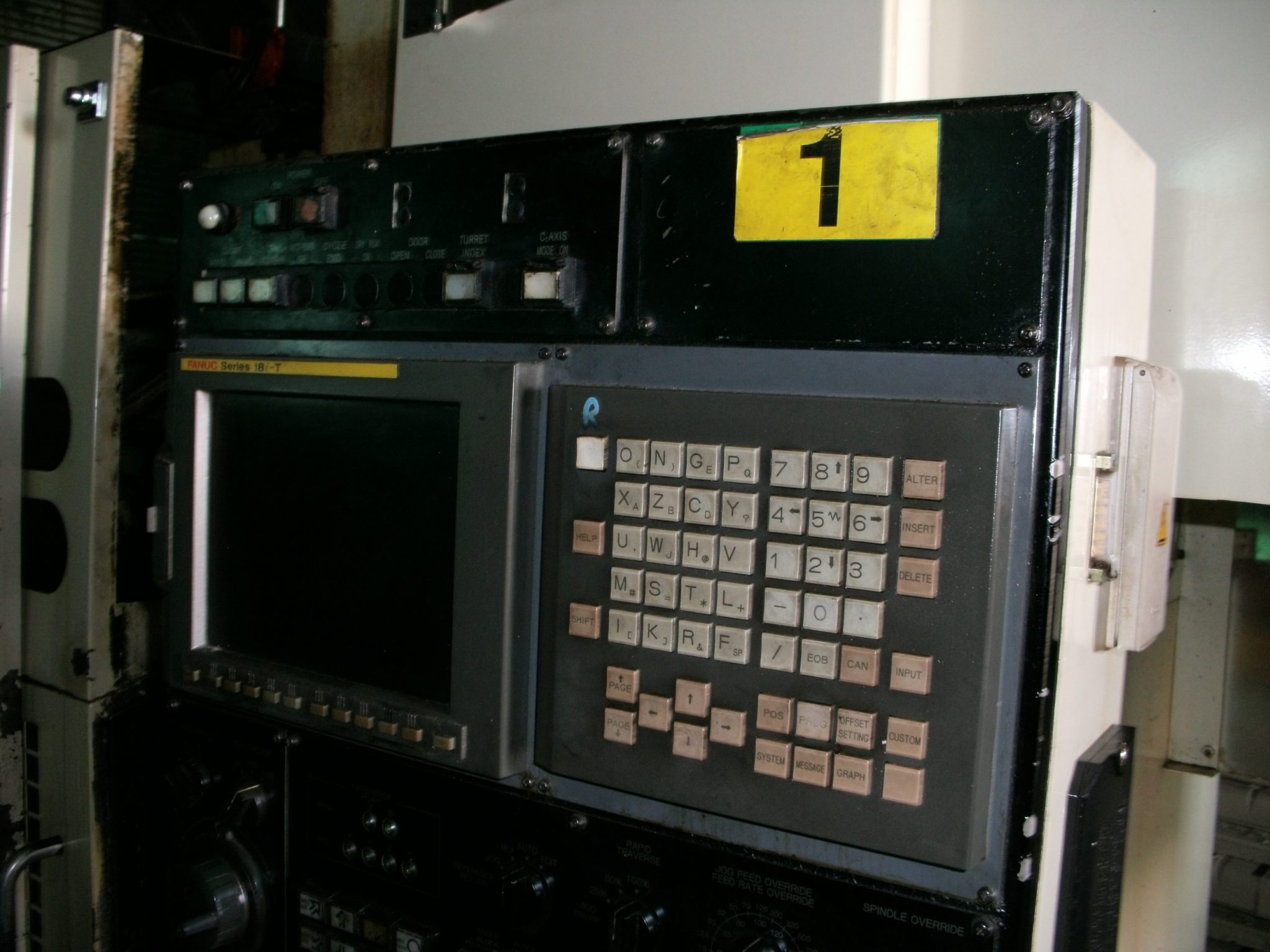

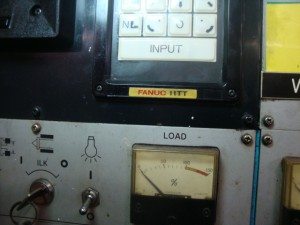

Fanuc CNC Control
12 Station Upper Turret
8 Station Lower Turret

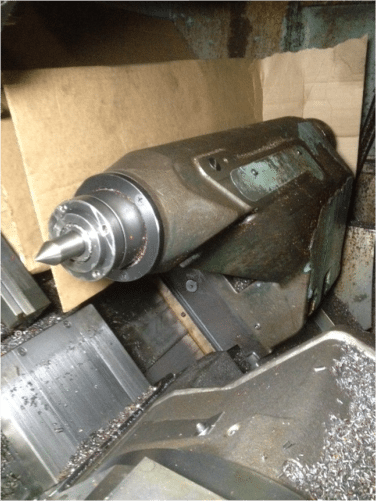

Live Tailstock
Chip Conveyor

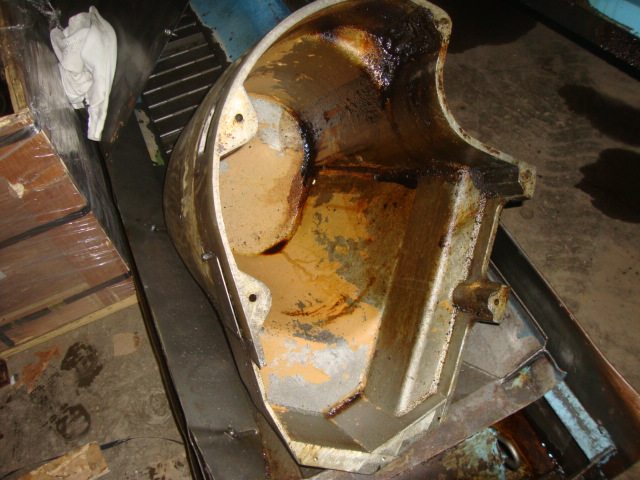

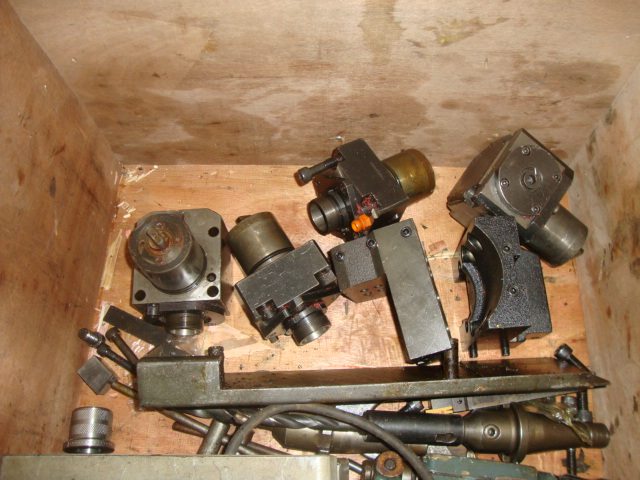

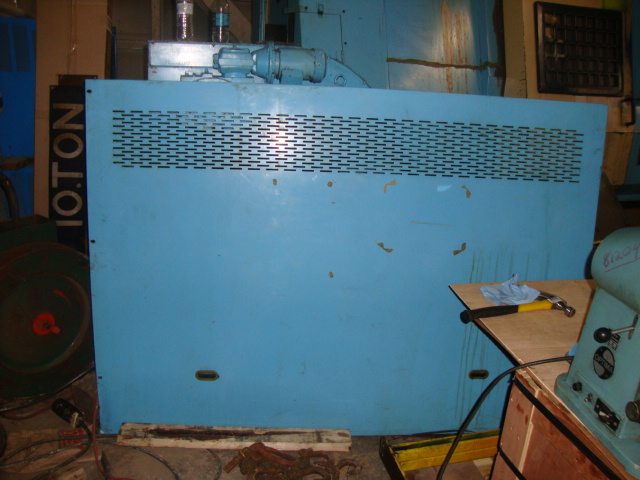

INCLUDES; 4 Live Tool Holders, Upper turret motor cover is included and shown in one of the pictures, we also had the back panel off for pictures, the back panel is included

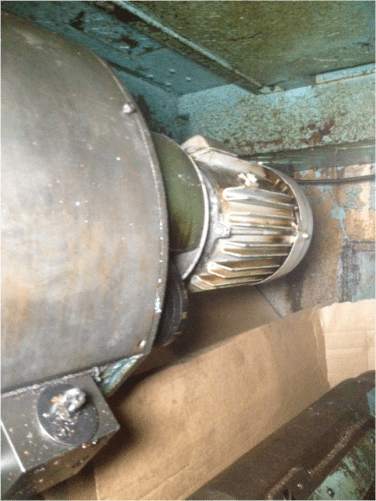

DSCN3738 DSCN3739 DSCN3740 DSCN3741 DSCN3742       pic 1 pic 2 pic 3 pic 4 pic 5DSC05103 DSC05105 DSC05106 DSC05113 DSC05104

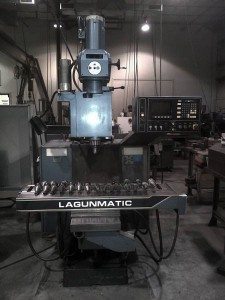

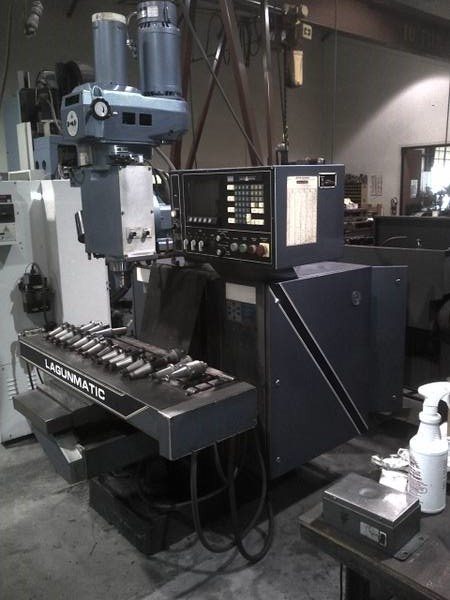

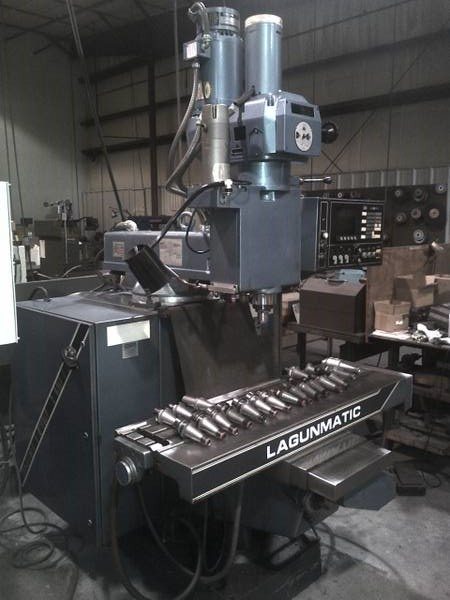

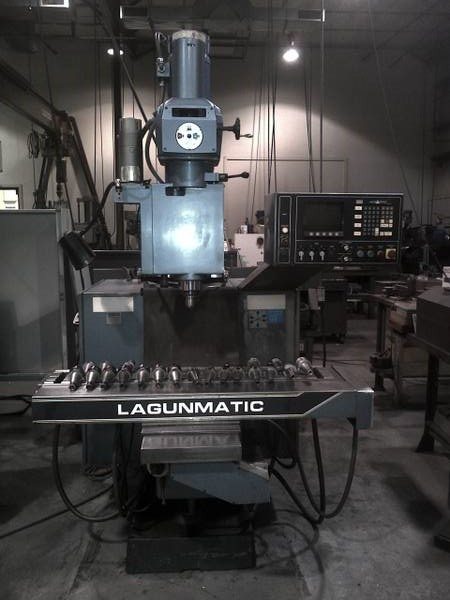

Lagunmatic 310 CNC Mill

Lagunmatic 310 CNC Mill

  • With Dynapath Delta 10 CNC controls
  • Excellent condition
  • Mfg — 1990
  • Made in USA
  • 2,705 hours
  • 50″ x 10 ” table
  • X, Y travels — 27″, 14″
  • Knee travel — 16″
  • Quill travel — 6″
  • 7.5 hp spindle motor (230V, 3 phase)
  • Number 40 taper
  • Push-button power drawbar
  • Variable spindle speeds — 55 to 4250 rpm (2 ranges)
  • 4 3/8″ diameter hard-chromed quill
  • Custom-built anodized splash guard
  • Improved coolant system with large reservoir, manifolds for snap-lock nozzles
  • Tooling sub-plate with tapped hole grid for easy workpiece clamping and setup
  • Automatic spindle and way lubrication

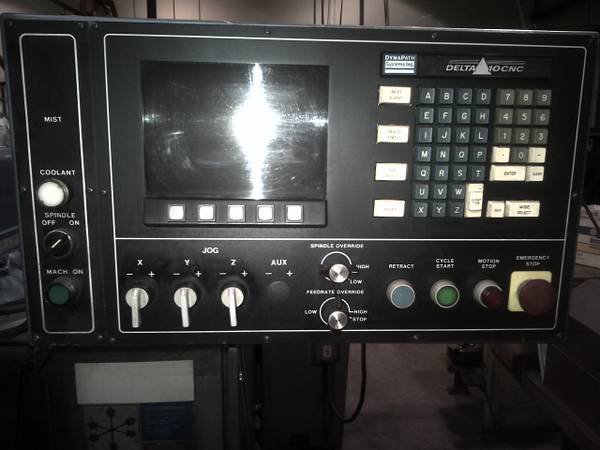

  • Dynapath Delta 10 CNC control

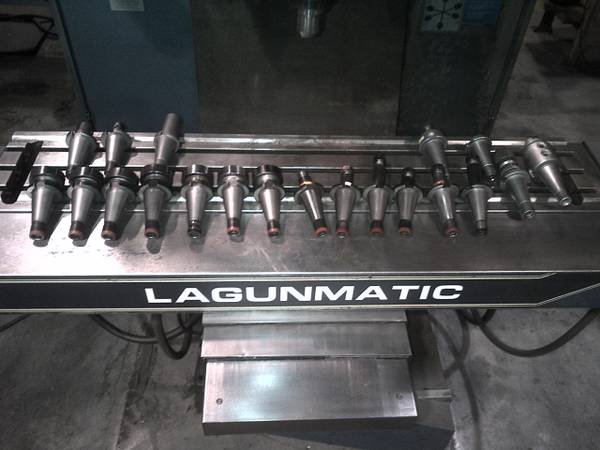

  • 40-taper tooling included, see pictures
  • Machine and tooling in excellent condition
  • Machine is under power for inspection
  • Covers removed for pictures and inspection, included in sale

Lagunmatic 310 CNC Mill 1 Lagunmatic 310 CNC Mill 2 Lagunmatic 310 CNC Mill 3 Lagunmatic 310 CNC Mill 4 Lagunmatic 310 CNC Mill 5
