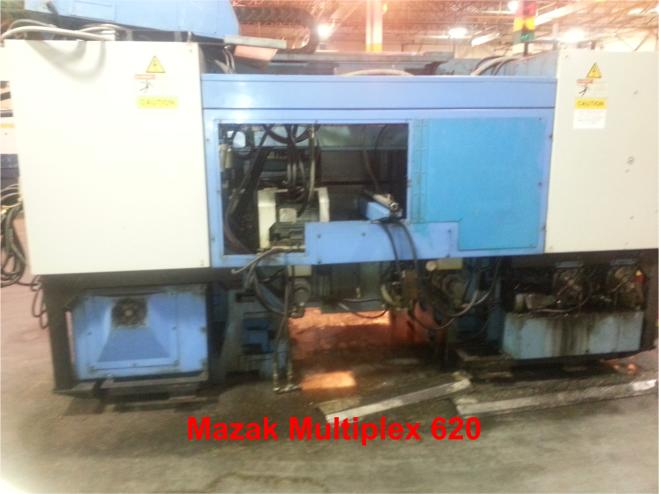

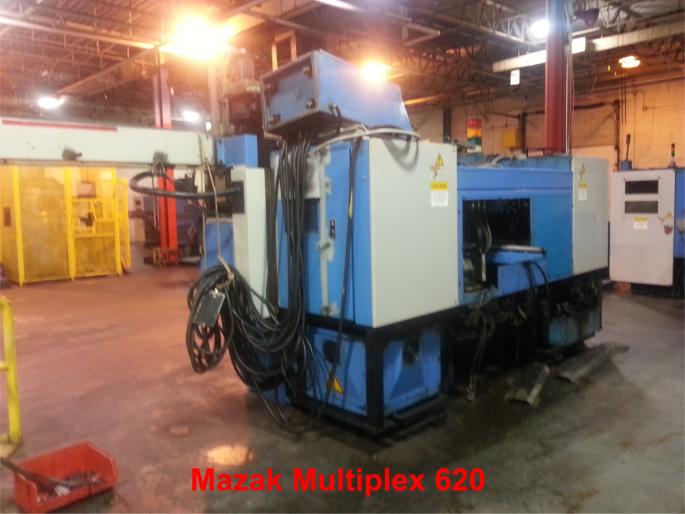

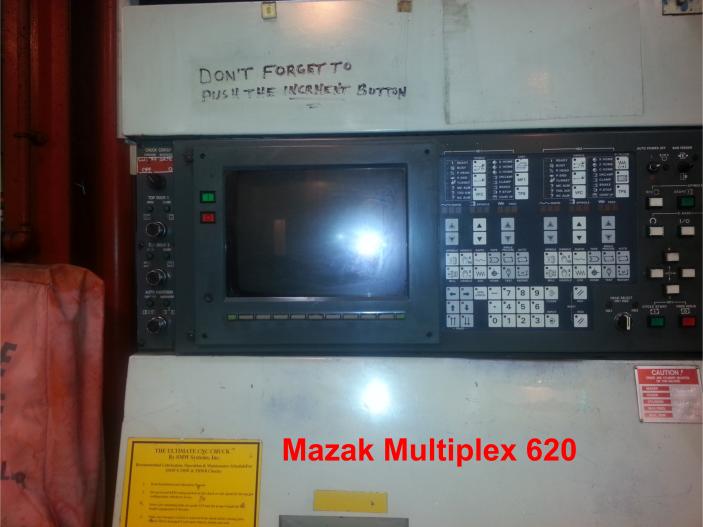

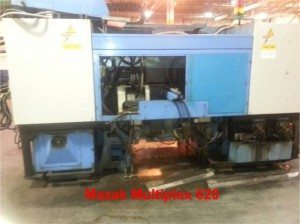

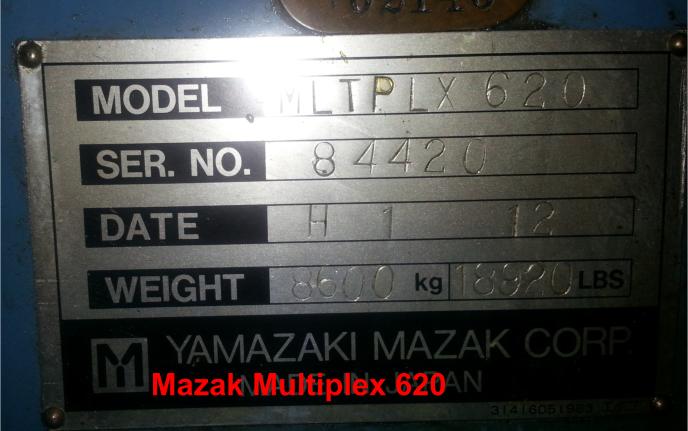

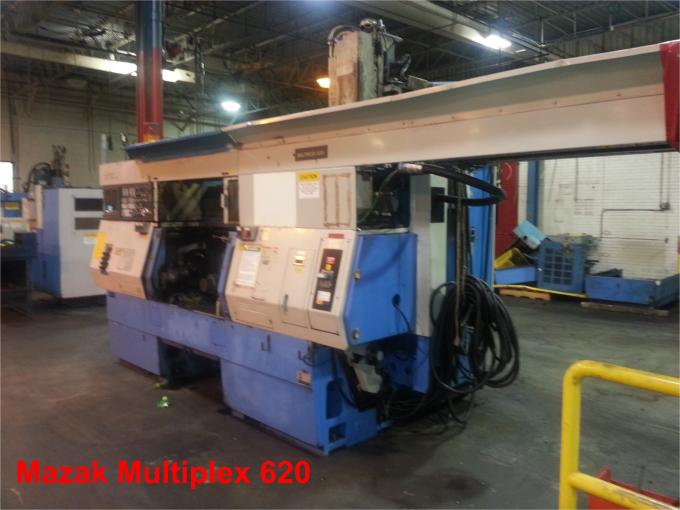

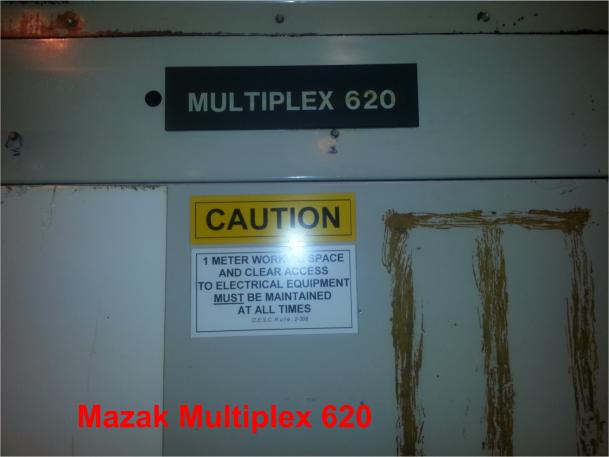

Mazak Multiplex 620 – 6 Axis Twin Spindle

  • Max Swing Over Bed 15.35″
  • Bar Capacity 2″
  • Turning Diameter 10.24″
  • Spindle Nose A2-6
  • Spindle Thru Hole 2.55″
  • X Axis Travel 9.05″
  • Z Axis Travel, Left/Right Turret 16.92″/19.09″
  • Turret Positions 12 x 2
  • Rapid Traverse Speed 944.88 IPM
  • Swing 12.8″
  • Distance Between Spindles 46.45″
  • Turrets (2) 12 Position w/live milling
  • Power 25hp
  • Speed up to 3600 RPM
  • Weight 18,920lbs
  • Control Mazatrol EIA-TA CNC
  • These are the specifications to the best of our knowledge.  Please research and check specifications to ensure vital details of the machine.

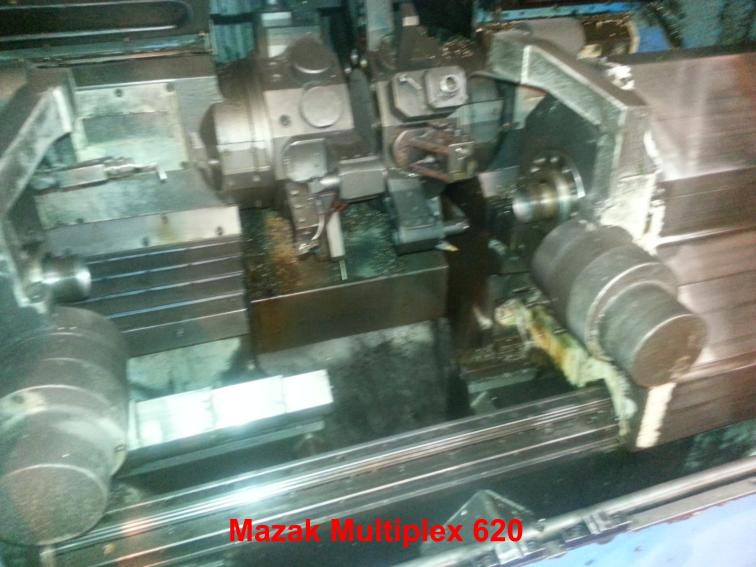

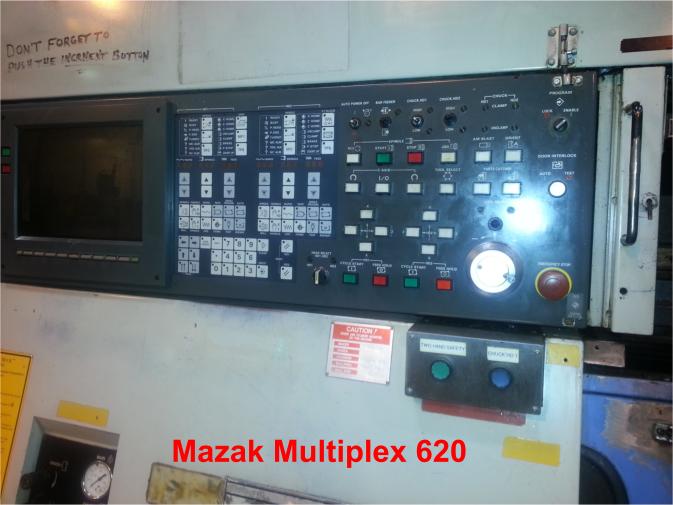

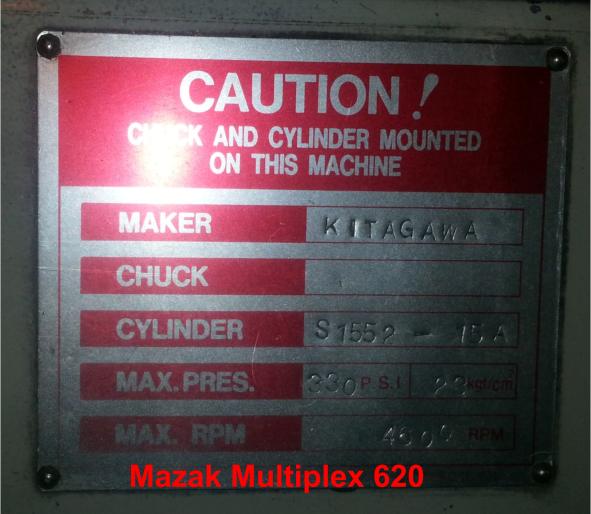

Mazak Multiplex 620 pic 01 Mazak Multiplex 620 pic 02 Mazak Multiplex 620 pic 03 Mazak Multiplex 620 pic 04 Mazak Multiplex 620 pic 05 Mazak Multiplex 620 pic 06 Mazak Multiplex 620 pic 07 Mazak Multiplex 620 pic 08 Mazak Multiplex 620 pic 09



Mazak Multiplex 410 – Twin Spindle Dual Turret – Several Available

  • Control: Mazatrol EIA-TA
  • Chuck Size 6.5″ (2)
  • Max Diameter of Bar Capacity 1.65″
  • Distance Between Spindles 45.55″
  • Spindle Bore 2″
  • Spindle Nose A2-5
  • Rapid Traverse Rates 945IPM
  • X Axis Travel 7.87″
  • Z Axis Travel 14.37
  • Turret Index (single/full step) 0.4/1.2 Seconds
  • Maximum Swing: 13.78″
  • Turn Diameter: 9″
  • Machining Length: 15″
  • Bar Capacity: 1.65″
  • Spindle Speed: upto 3600 RPM
  • Main Motor: 15HP
  • Turret Position: (2) 12 Position
  • Machine Weight 15,400lbs
  • Several available, Years from 1991 to 1998
    • These are the specifications to the best of our knowledge.  Please research and check specifications to ensure vital details of the machine.

Mazak Multiplex 410 pic 17 Mazak Multiplex 410 pic 1 Mazak Multiplex 410 pic 2 Mazak Multiplex 410 pic 3 Mazak Multiplex 410 pic 4 Mazak Multiplex 410 pic 5 Mazak Multiplex 410 pic 6 Mazak Multiplex 410 pic 7 Mazak Multiplex 410 pic 8 Mazak Multiplex 410 pic 9 Mazak Multiplex 410 pic 10 Mazak Multiplex 410 pic 11 Mazak Multiplex 410 pic 12 Mazak Multiplex 410 pic 13 Mazak Multiplex 410 pic 14 Mazak Multiplex 410 pic 15 Mazak Multiplex 410 pic 16



Sharnoa HPM-85 Machining Center

Sharnoa HPM-85 Machining Center

  • CNC Vertical Machining Center
  • Age: 1994
  • X-Axis Travel 85″
  • Y-Axis Travel 34″
  • Z-Axis Travel 22″
  • Spindle Nose to Table Top 10″-38″
  • Table Size 94″ x 33.5″
  • Table Load Capacity 6600 Lbs
  • Spindle Speeds to 6000 RPM
  • Spindle Taper BT 50
  • Spindle Drive Motor 28 HP
  • Tool Changer 30 ATC
  • Tiger 7 controls

Mazak H-630 Horizontal Machining Center

Mazak H-630 Horizontal Machining Center

  • YEAR: 1990
  • 10 Table longitudinal travel (X-axes)
  • 1000 mm Cross-travel head (Y-axes)
  • 800 mm Height- travel head (Z-axes)
  • 750 mm Table dimensions
  • 630 x 630 mm
  • Max weight on the table: 1200 kg



Mayfran International Chip Conveyor

Mayfran International Chip Conveyor

  • 142″ Long
  • 6′ High
  • 35″ wide stainless steel track
  • 47″ wide outside of track
  • 45″ under goose neck
  • 1/3hp 220v/440v motor
  • twin pump

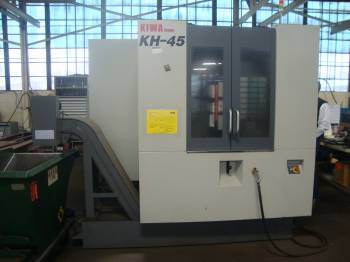

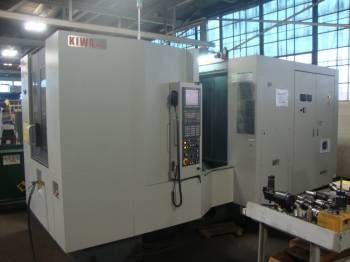

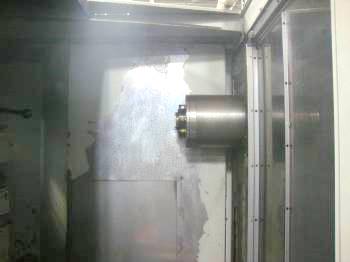

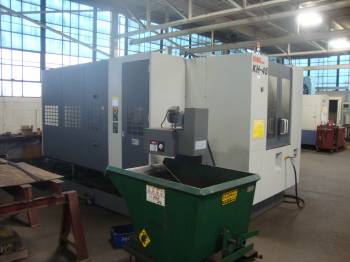

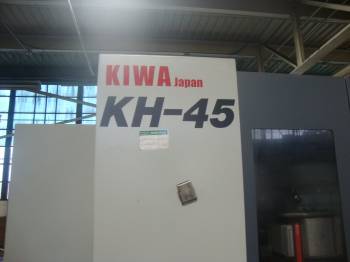

Kiwa Horizontal Machining Center Model KH-45

Kiwa Horizontal Machining Center Model KH-45

  • Model KH-45
  • Year 2008
  • Hours 1,511
  • RPM 12,000
  • Taper 40
  • Travels X-25″ Y-24″ Z-24.50″
  • B-360 Degrees
  • Pallet Size W-15.723″ x L-15.723″
  • Weight 9.7 metric tons

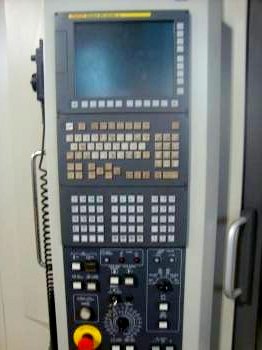

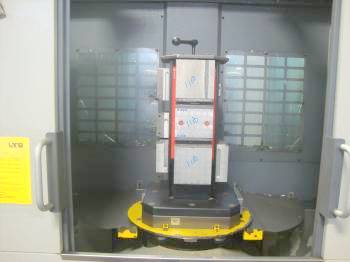

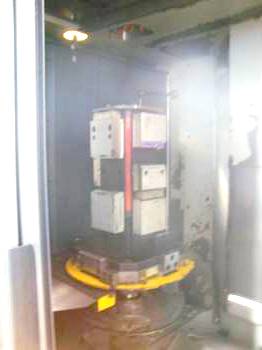

  • Equipped with: Fanuc Control Series 31/Model A, Tombstones
